/Products/Pumps/Ashland Pump/Sewage Pumps/SWF200 2HP/SWF200M4-20 Ashland 2HP Sewage Pump, 460VAC 3 Phase
Click Image to Expand

Product ID: SWF200M4-20

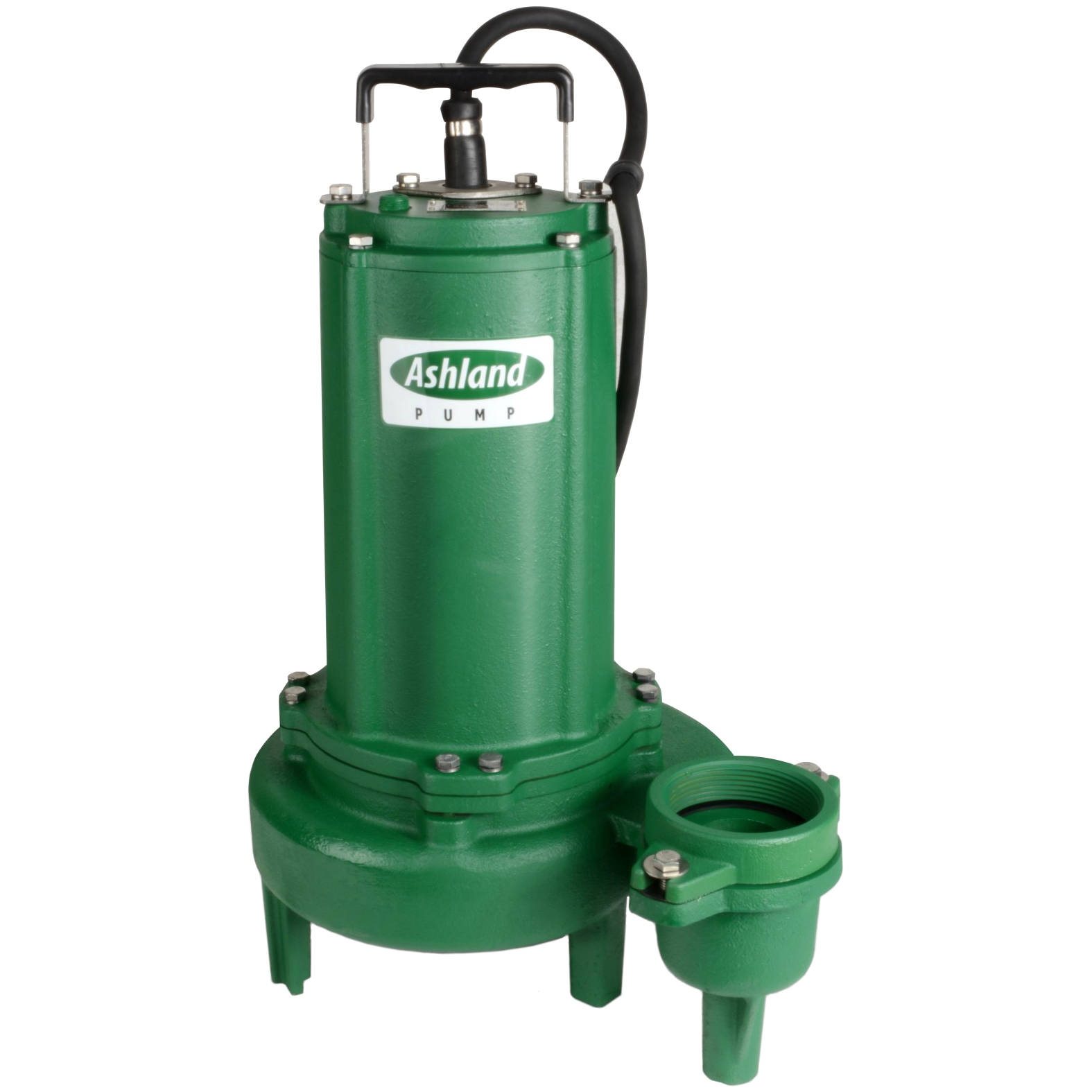

SWF200M4-20 Ashland 2HP Sewage Pump, 460VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: SWF200M4-20

Selected accessories will also be added to cart
$1,645.35 / Each
Quantity:
2" Flanged Discharge with 2"/3" NPT Adapter, Cast Iron Construction, 1750RPM

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC (Single Phase) or Induction (3 Phase) motor

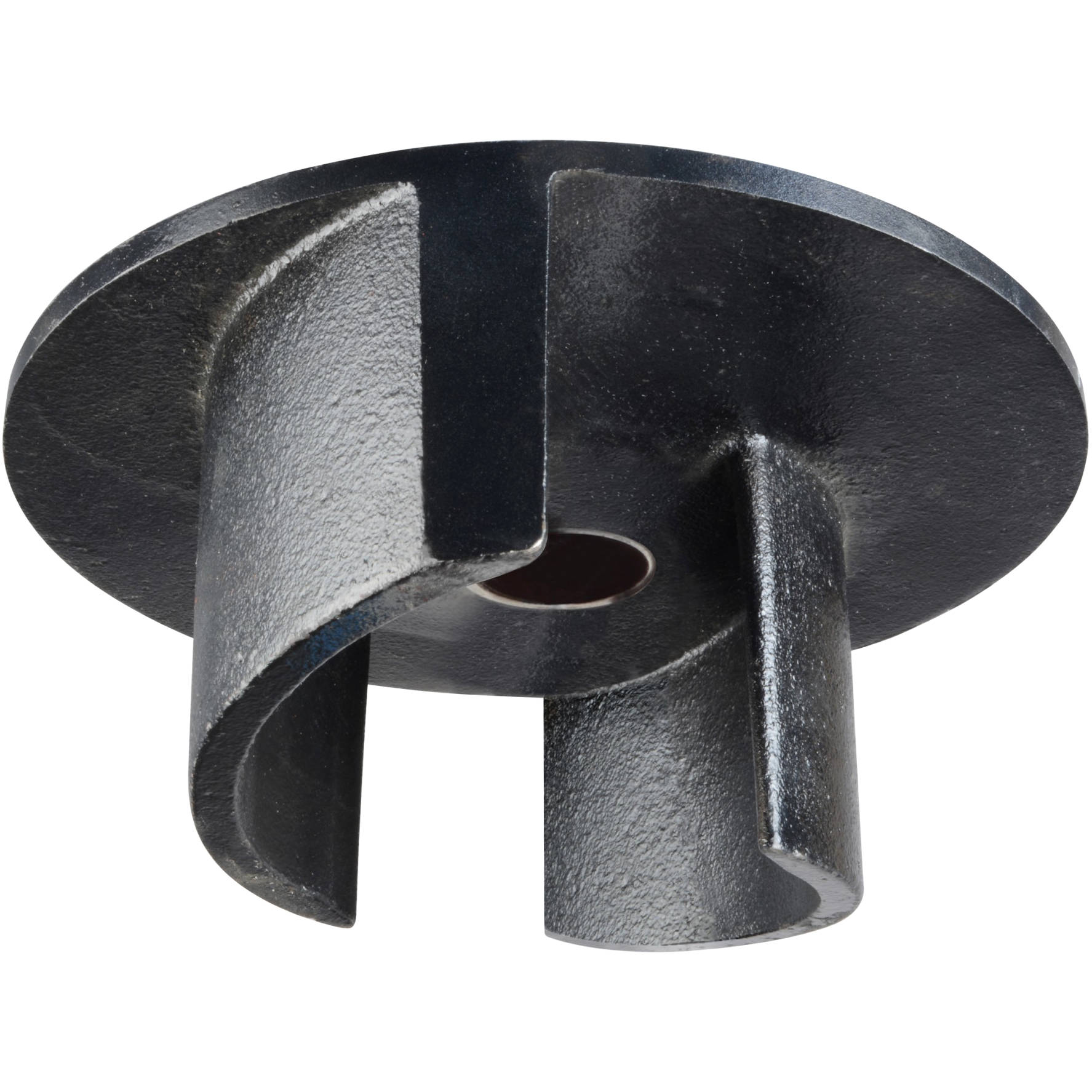

  • Semi-open cast iron impeller
  • 2? solids handling

Specifications

BrandAshland Pump
ModelSWF200M4-20
Switch TypeManual
HP2HP
Voltage460VAC 60Hz 3 Phase
RPM1750 RPM
NEMA Start CodeL
Full Load Amps5.5 Amps
Cord Power Size14AWG/4C
Cord TypeSOW
Cord O.D.0.59"
Discharge Size2" Flanged
with 2" & 3" NPT Adapter
Impeller Type2-Vane Semi-Open
Cast Iron
Cable Length20'
Solids Handling2"
Maximum Liquid Temperature104?F - Intermittent
Acceptable pH Range6 - 8
Motor HousingCast Iron
CasingCast Iron
ImpellerCast Iron
Motor ShaftSS430
HardwareSST
O-RingsNBR
Mechanical SealSingle Mechanical
Carbon Ceramic
Upper Bearing6203
Lower Bearing6203
RPM1750 RPM
Motor TypePSC (Single Phase)
Induction (3 Phase)
Gen Insulation ClassB
Stator Winding ClassB
Maximum Stator Temperature130?C
Voltage Tolerance+/-10%
Motor ProtectionThermally Protected
HP2HP
Service Factor1.00

Dimensions

SWF200 Pump Dimensions

Performance Curve

SWF200 Performance Curve Graph

Links

Speed
1750RPM
Input Phase
3-Phase
Input Voltage
460VAC
Horsepower
2HP
Type
Sewage Pump
Color
Green
