/Products/Electric Motors/DC/Baldor/Shunt Wound/CD6203 Baldor 3HP Shund Wound DC Electric Motor, 1750RPM

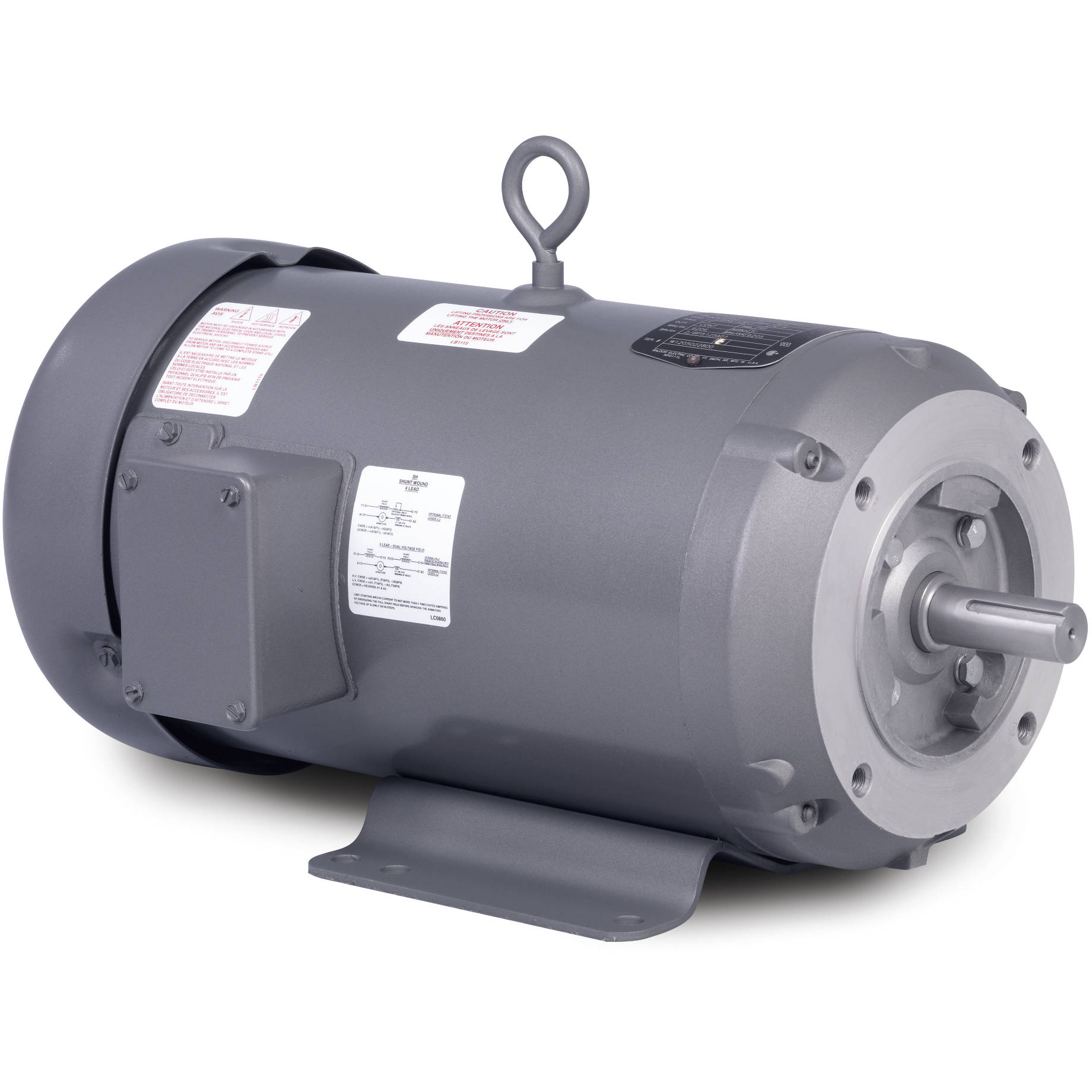

CD6203 Baldor 3HP Shund Wound DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CD6203

CD6203 Baldor 3HP Shund Wound DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CD6203

Selected accessories will also be added to cart
$3,599.97 / Each
Quantity:
TEFC, 184TC Frame, 100/200VDC Field, 180VDC Armature, 3668D, Rolled Steel, Rigid Base, C-Face, 1-1/8" Keyed Shaft

Specifications

Specs

Armature Voltage180 V
Base Speed1750 rpm
EnclosureTEFC
Field Voltage100 V
200 V
Frame184TC
Frame MaterialSteel
Output Power3.000 HP
XP Class and GroupNone
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current14.7 a
Armature Inertia57.312 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Field Winding TypeSHUNT
Heater IndicatorNo Heater
Insulation ClassH
Lifting LugsStandard Lifting Lugs
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size4 @ 18 AWG
2 @ 12 AWG
Mounting ArrangementF1
Overall Length21.62 IN
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
RoHS StatusROHS COMPLIANT
Service Factor1.00
Shaft Diameter1.125 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Motor StandardsNEMA
XP DivisionNot Applicable

Applications

  • Conveyors
  • Printing and textile equipment
  • Machine tools

Features

  • Designed for use with NEMA type K SCR control
  • 20:1 constant torque speed range
  • NEMA C-face and removable base
  • NEMA 182 frame and larger – normally closed thermostat on field winding
  • Class F insulation
  • 1.0 Service Factor

Nameplate

Nameplate

CAT.NO.CD6203
SPEC.36-5347Z136
HP3ENCLTEFC
RPM1750
FRAME184TCTYPE3668D
ARM V180ARM A14.7
FLD V200/100FLD A.6/1.2
INSULHAMB.40
DUTYCONTSUPPLYK
BRG/DE6206BRG/ODE6205
BRUSHES2/BP5125A01
BLANK
SER.
BLANK
APRV-CSAAPRV-UL
NP0111L
Type
Electric Motor
Horsepower
3HP
Input Phase
DC
Enclosure
TEFC
Frame
184TC
Speed
1750RPM
Input Voltage
100VDC
Input Voltage
200VDC
