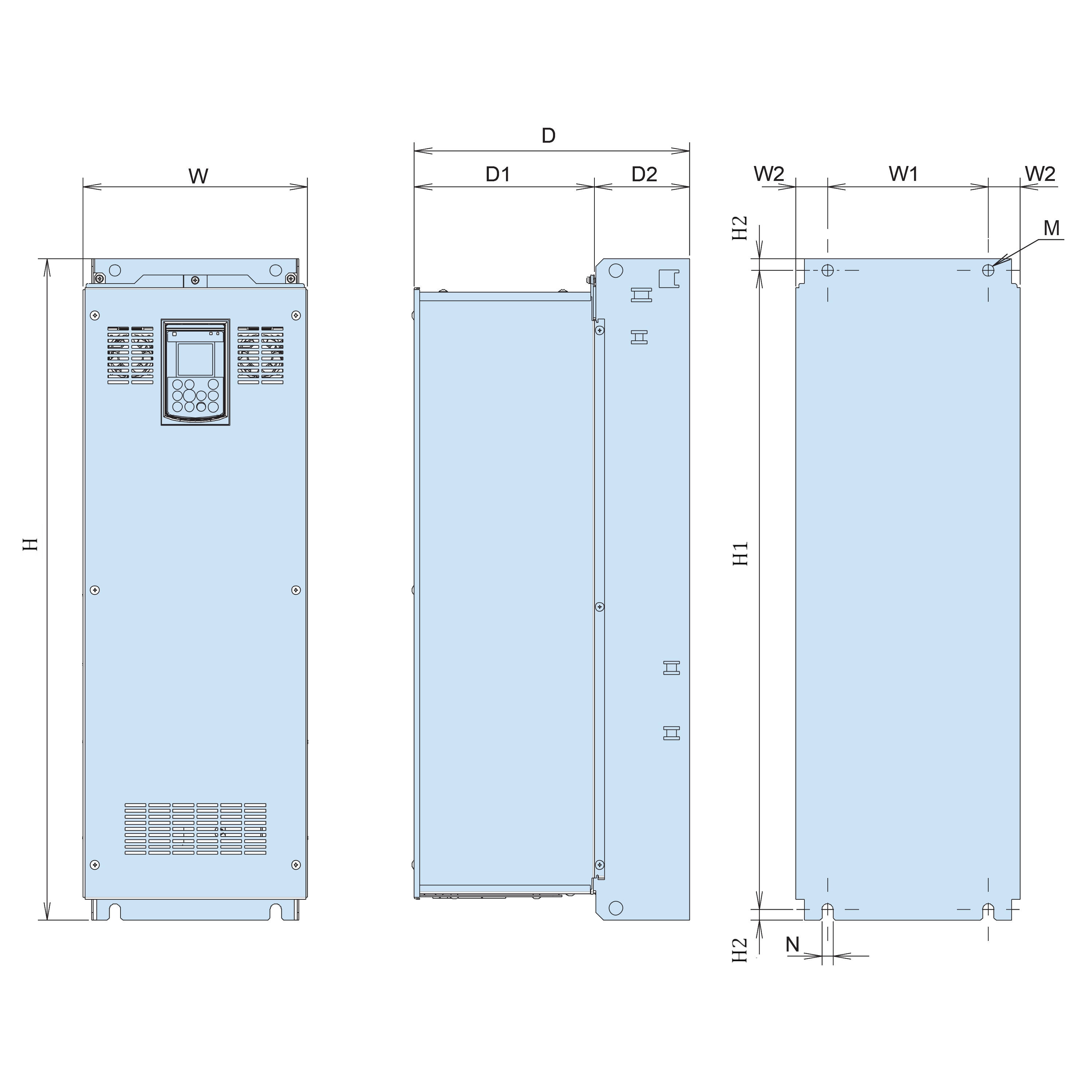

| Nominal Applied Motor (Rated Output) | 50 HP with Single Phase Input
125 HP with 3-Phase Input |
|---|
| Rated Output Capacity | 54 kVA with Single Phase Input
140 kVA with 3-Phase Input |
|---|
| Rated Output Current | 68.6 Amps with Single Phase Input
176 Amps with 3-Phase Input |
|---|
| Output Frequency | 120Hz Maximum |
|---|
| Output Stability | Analog Setting: ?0.2% of Maximum Frequency
Digital Setting: ?0.01% of Maximum Frequency (By Keypad) |
|---|
| Rated Voltage | Three Phase, 380 to 480 VAC (with AVR Function) |
|---|
| Output Overload Capability | 110% for 1 Minute
(Overload capability interval : IEC 61800-2 compliant) |
|---|
| Rated Input Frequency | 50, 60 Hz |
|---|
| Main Power Supply Input | Three Phase, 380 to 440 VAC, 50Hz
Three Phase, 380 to 480 VAC, 60Hz
Single Phase, 380 to 440 VAC, 50Hz
Single Phase, 380 to 480 VAC, 60Hz |
|---|
| Rated Input Current | 141 Amps |
|---|
| Required Input Power Supply Capacity | 65 kVA with Single Phase Input
113 kVA with 3-Phase Input |
|---|
| Auxiliary Control Power Supply | Single Phase, 380 to 480 VAC 50/60Hz |
|---|
| Auxiliary Main Power Supply | Single Phase, 380 to 440 VAC, 50Hz
Single Phase, 380 to 480 VAC, 60Hz |
|---|
| Voltage & Frequency Variations | Voltage: +10 to -15%
Interphase Voltage Unbalance: 2% or less
Frequency: -5 to +5% |
|---|
| Braking Torque | 10 to 15 % |
|---|
| DC Injection Braking | Starting frequency:0.0 to 60.0Hz
Braking time:0.0 to 30.0s
Braking level:0 to 60% |
|---|
| EMC Filter | Built-In
EMC standards compliance : Category C2 (emission) / 2nd Env. (Immunity) |
|---|
| DC Reactor | Built-in (IEC/EN 61000-3-2, IEC/EN 61000-3-12) |
|---|
| Power Factor (at Rated Load) | >0.98 Displacement P.F. (cosf)
>=0.90 True Power Factor |
|---|
| Efficiency | 98 % at Rated Load |
|---|
| Enclosure | IEC/EN 60529: IP21
UL 50: UL Type 1 |
|---|
| Cooling Method | Fan Cooling |
|---|
| Weight/Mass | 70 kg |
|---|
| Ambient Temperature | NEMA/UL Open/Type 1: -10 to 50?C (14 to 122?F) |
|---|
| Storage Temperature | -25 to 70?C (-13 to 158?F) |
|---|
| Relative Humidity | 5 to 95% RH (Without Condensation) |
|---|
| Installation Location | IEC60664-1 Pollution Degree 2
(Free from Corrosive Gases, Flammable Gases, Oil Mist, Dust and Direct Sunlight)
Indoor Use Only |
|---|
| Altitude | 0 to 3,300ft (1,000m)
3,300ft (1,000m) to 9,900ft (3,000m) with Derating |
|---|
