/Products/Electric Motors/3 Phase/Marathon 3-Phase Electric Motors/Globetrotter General Purpose/TEFC, C-Face, Footless/GT1309A Marathon 3HP Globetrotter Electric Motor, 3600RPM
Click Image to Expand

Product ID: GT1309A

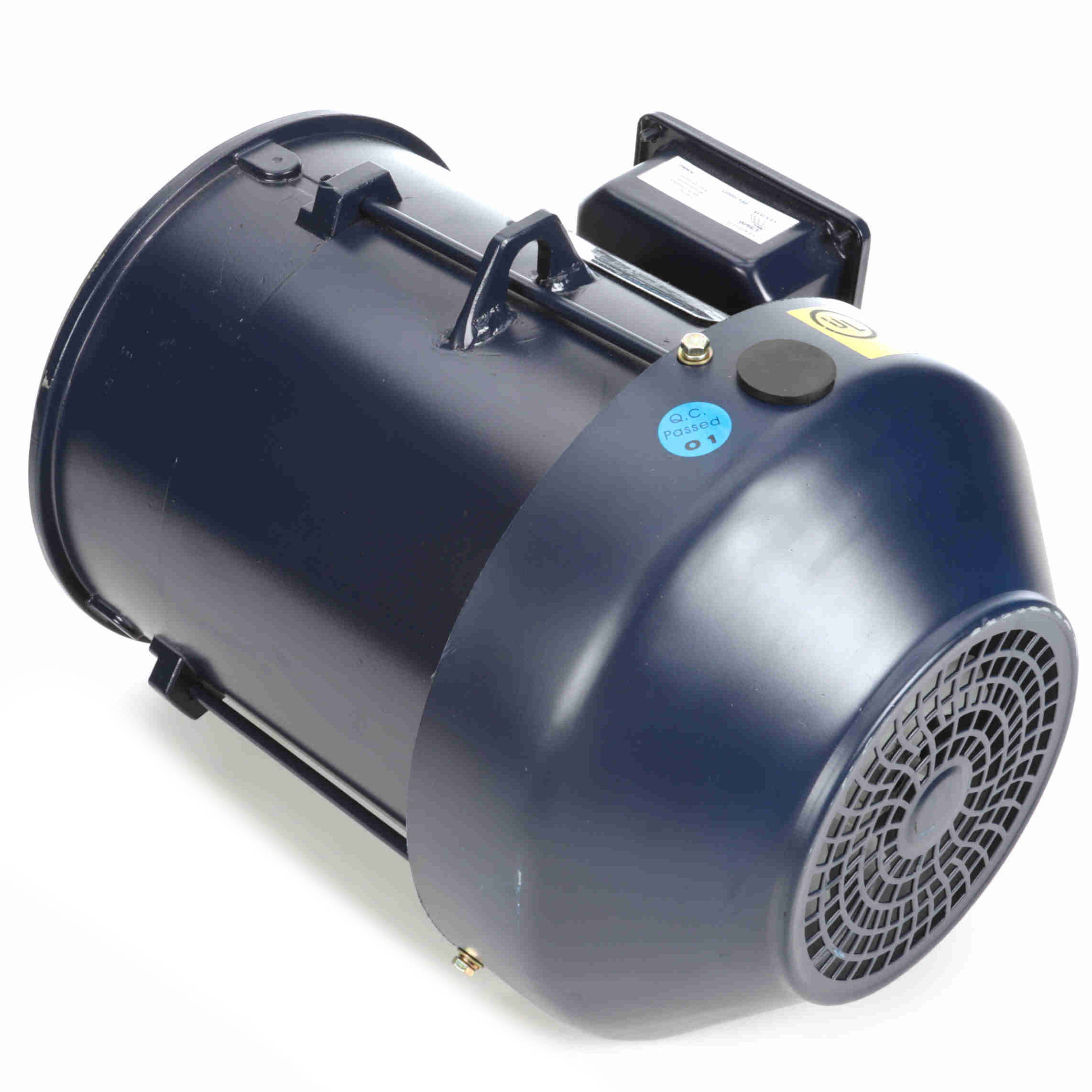

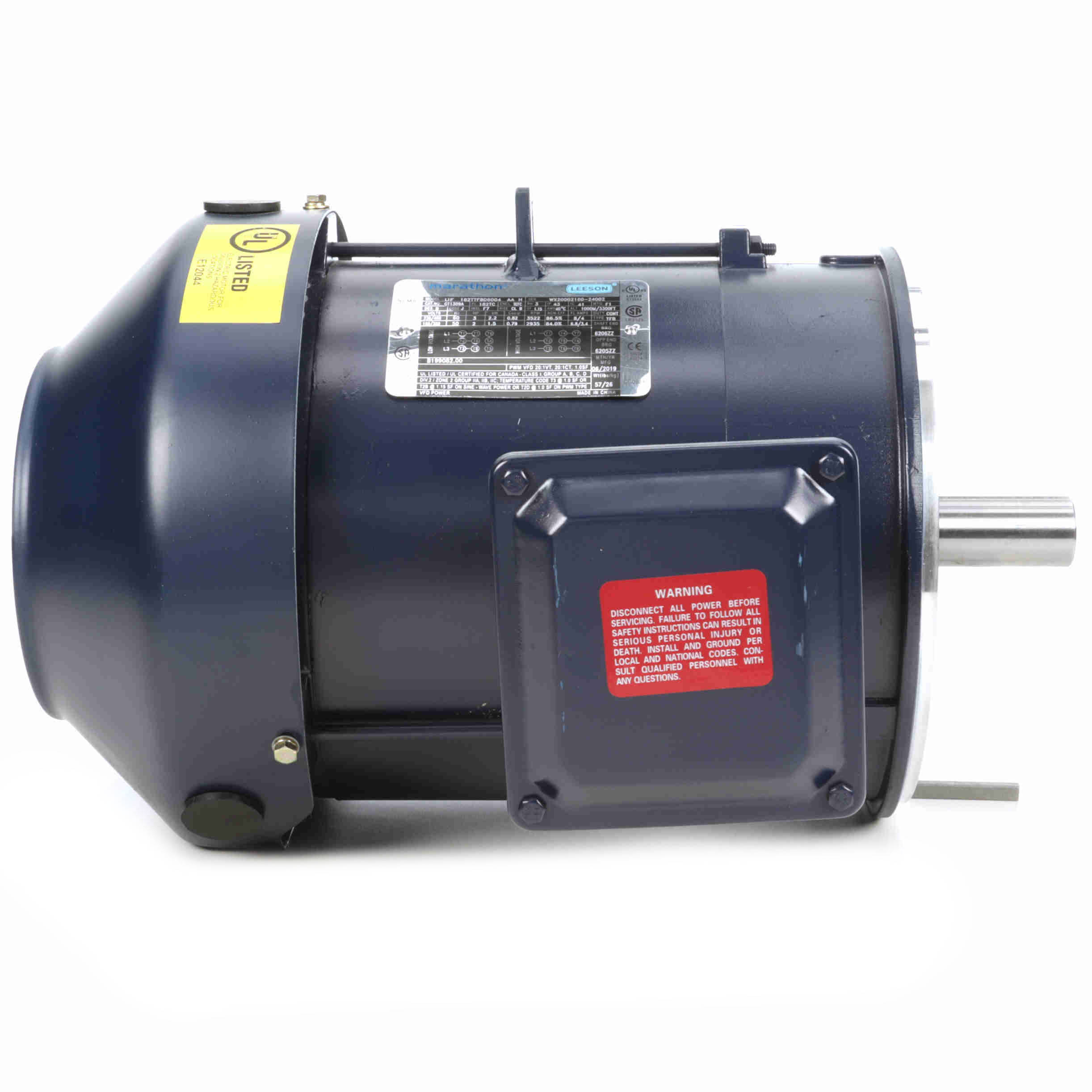

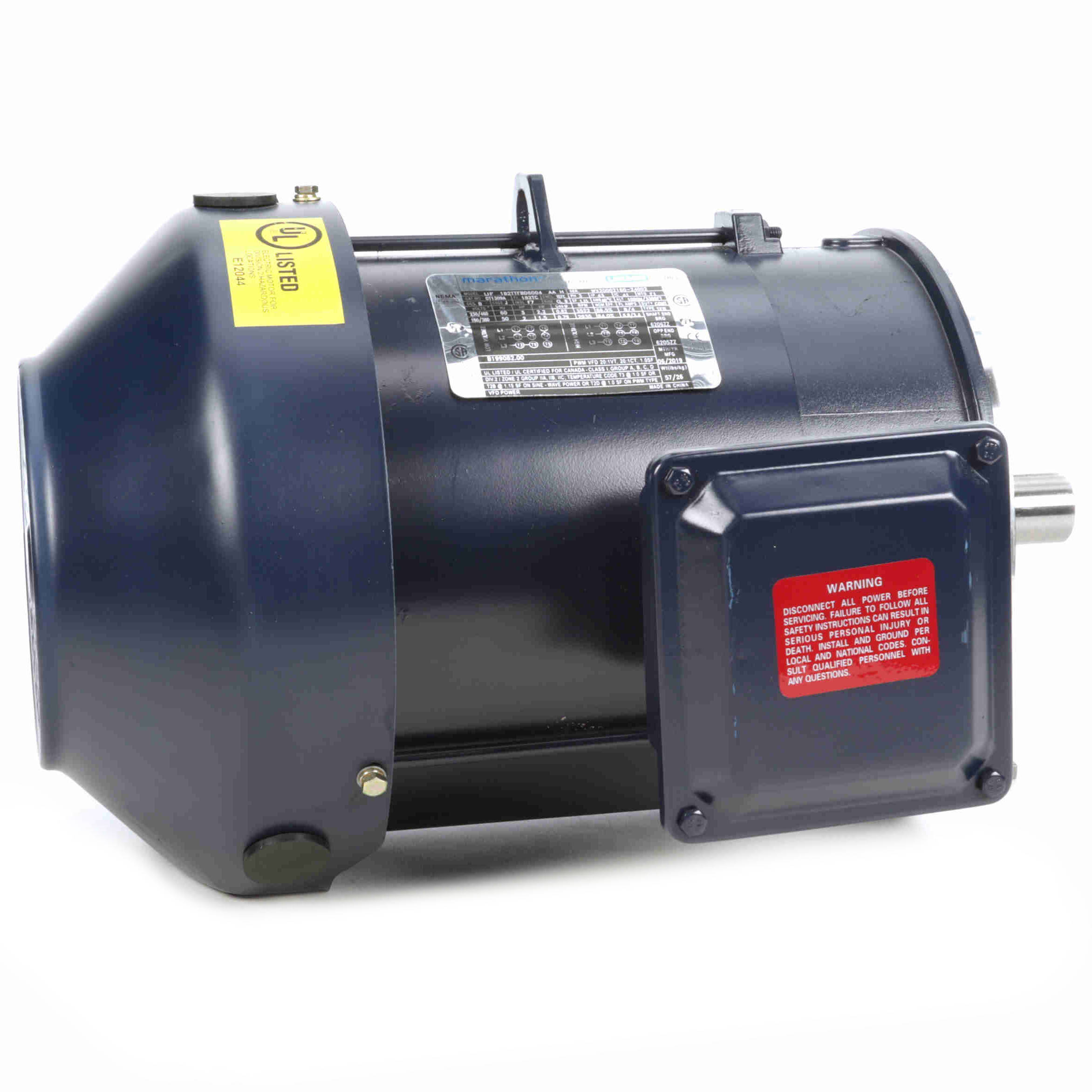

GT1309A Marathon 3HP Globetrotter Electric Motor, 3600RPM

MFG: Marathon Electric
MFG Part Number: GT1309A

Selected accessories will also be added to cart
$539.97 / Each
Quantity:
TEFC, 182TC Frame, 230/460VAC 60Hz 3-Phase, 182TTFBD6004, C-Face, Footless, Rolled Steel, 1-1/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium? efficiency. Model is in compliance with EISA2007
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • IP55 enclosure on cast iron frames
  • Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

General Specifications

UPC:722856061935Weight:83.00 LB
Packaged Length:16.53 INPackaged Width:14.48 IN
Packaged Height:18.42 IN

Nameplate Specifications

Output HP:3 HpOutput KW:2.2 kW
Frequency:60 HzVoltage:230/460 V
Current:8.0/4.0 ASpeed:3522 rpm
Service Factor:1.15Phase:3
Efficiency:86.5 %Power Factor:82
Duty:ContinuousInsulation Class:F
Design Code:BKVA Code:J
Frame:182TCEnclosure:Totally Enclosed Fan Cooled
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:6206Opp Drive End Bearing Size:6205
UL:ListedCSA:Y
CE:YIP Code:43

Technical Specifications

Electrical Type:Squirrel Cage Inverter RatedStarting Method:Line Or Inverter
Poles:2Rotation:Reversible
Resistance Main:5.72 OhmsMounting:Round
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:TOverall Length:15.85 in
Frame Length:5.85 inShaft Diameter:1.125 in
Shaft Extension:2.75 inAssembly/Box Mounting:F1/F2 CAPABLE

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down19.65491.016.00356.03,0000.0082.03.00
1/328.50712.07.50167.03000.000.03.00
Full Load4.00100.04.50100.03,5220.0082.03.00
2/326.50662.025.50567.01,5000.000.03.00
No Load2.2055.00.000.03,6000.0010.03.00
Pull-Up28.00700.08.00178.09000.000.03.00
Locked-Rotor32.00800.09.00200.000.0055.53.00

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %
Current (Amps)2.002.352.753.304.004.404.70
Rated Output (KW)0.190.771.351.962.592.983.25
Efficiency (%)0.073.182.585.586.586.386.1
Power Factor (%)10.840.961.674.582.085.086.8
Speed (RPM)3,6003,5853,5703,5453,5353,5293,520
Temp. Rise @ FL0.00.00.00.035.055.075.0
Torque (ft-lbs)0.001.102.203.334.485.155.62
Type
Electric Motor
Speed
3600RPM
Horsepower
3HP
Enclosure
TEFC
Input Phase
3-Phase
Frame
182TC
