/Products/Electric Motors/3 Phase/Techtop 3-Phase Electric Motors/Premium NEMA Aluminum, TEFC (GX3)/Rigid Base/GX3-AL-TF-182T-2-B-D-3 Techtop 3HP Aluminum Frame Electric Motor, 3600RPM
Click Image to Expand

Product ID: GX3ALTF182T2BD3

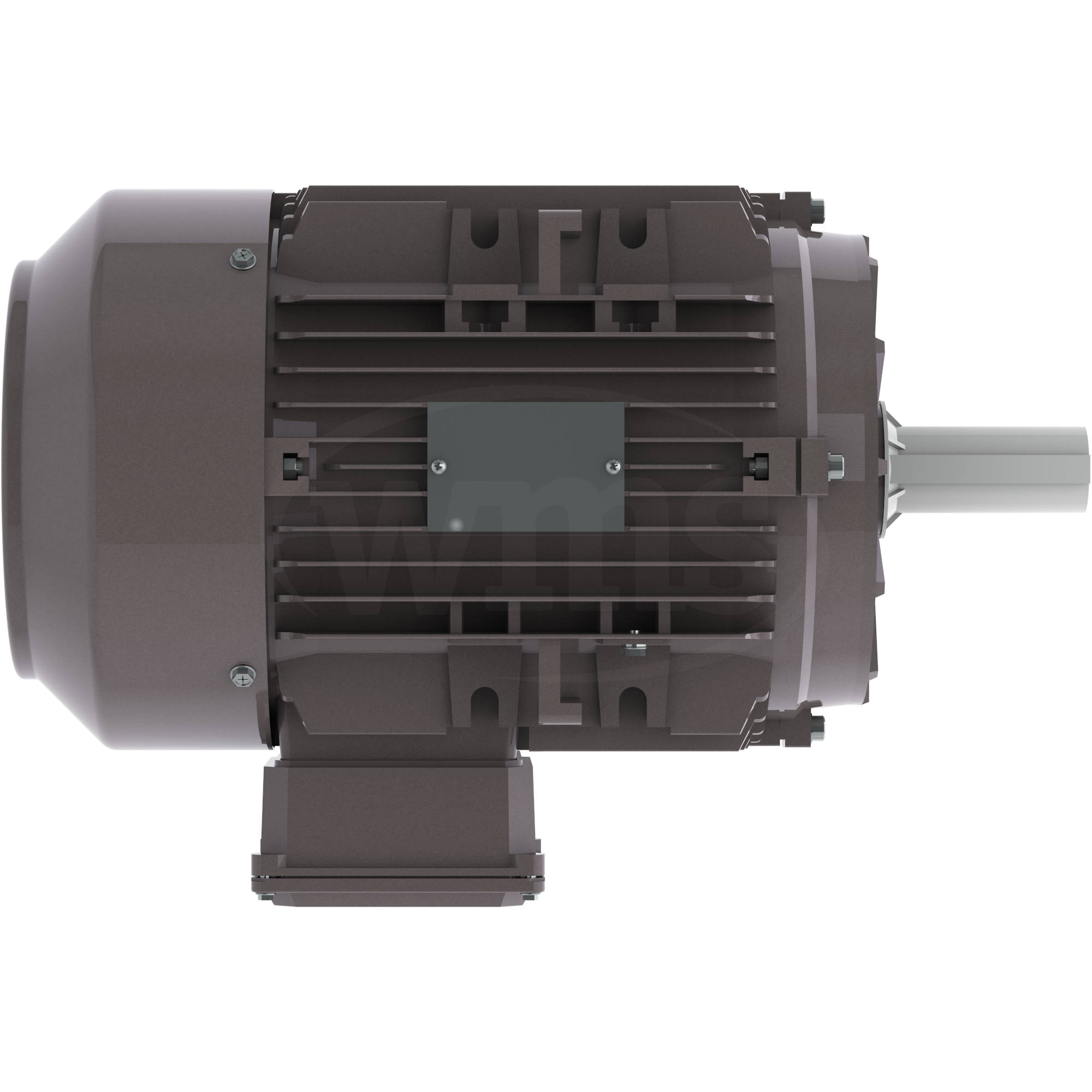

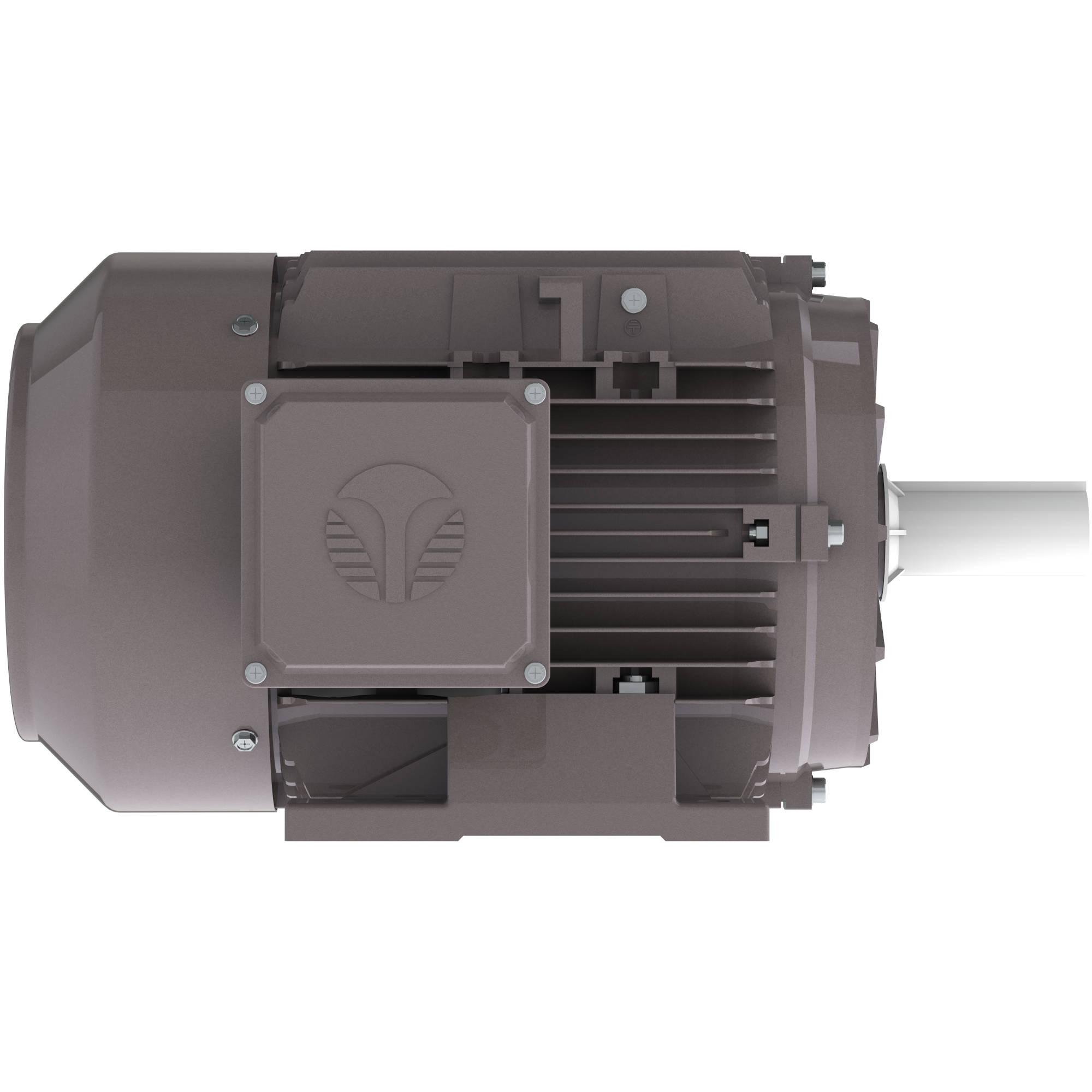

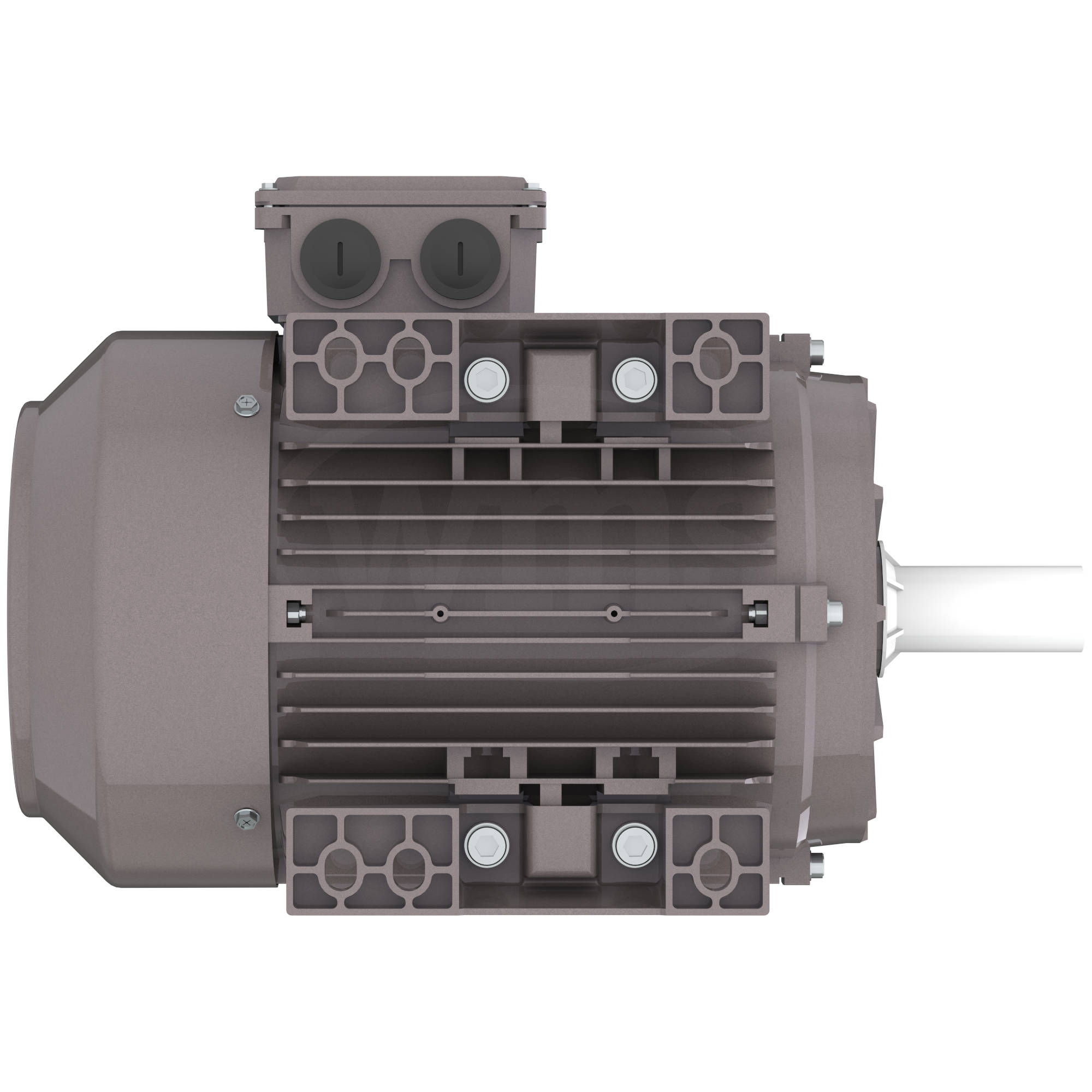

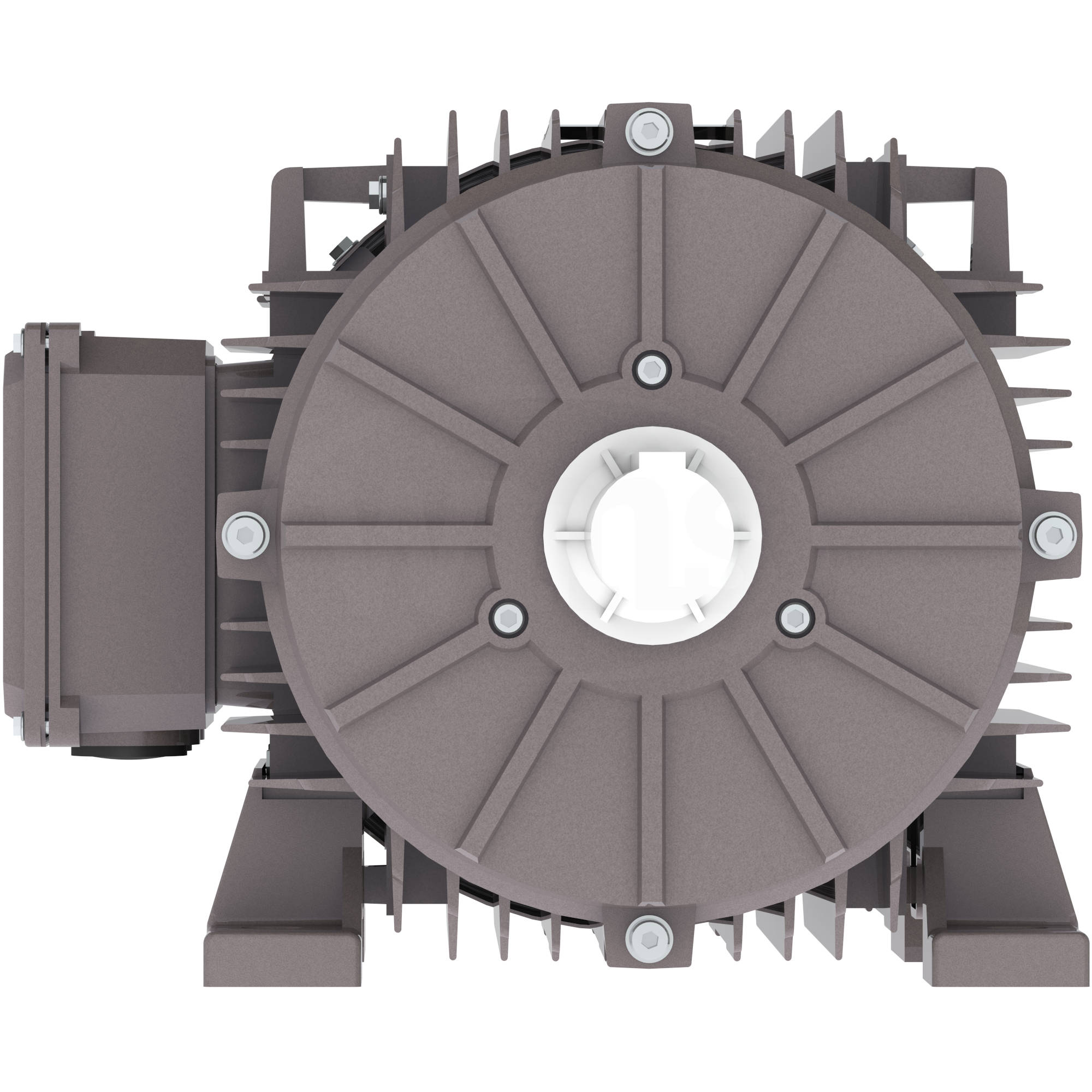

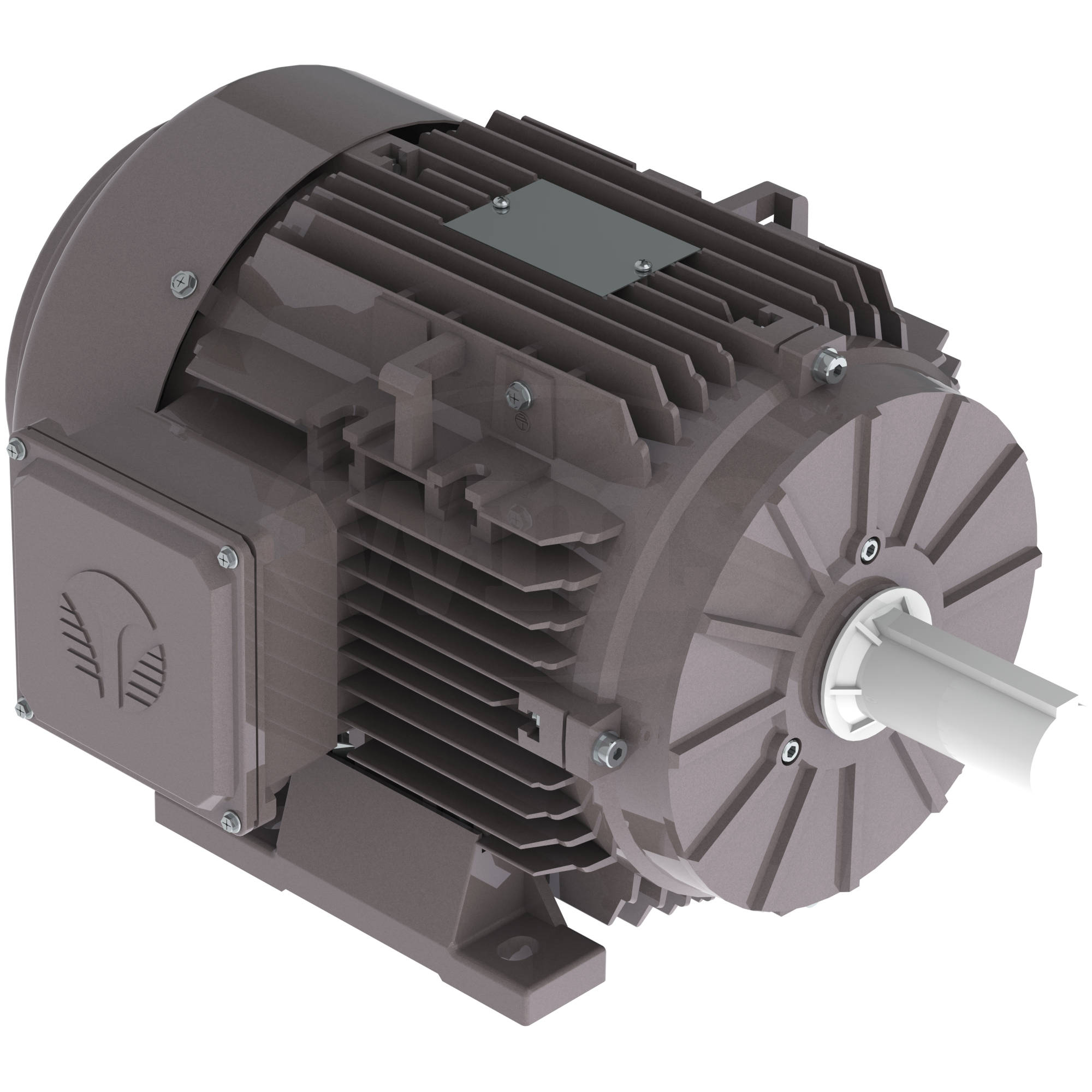

GX3-AL-TF-182T-2-B-D-3 Techtop 3HP Aluminum Frame Electric Motor, 3600RPM

MFG: TechTop Industries, Inc.
MFG Part Number: GX3-AL-TF-182T-2-B-D-3

Selected accessories will also be added to cart
$513.00 / Each
Quantity:
TEFC, 182T Frame, 208-230/460VAC 190/380VAC 50/60Hz 3 Phase, Removeable Rigid Base, Cast Aluminum Frame

Standard Features

  • NEMA Premium Efficiency
  • Dual Voltage – Three Phase
  • Inverter Duty – 15: Constant Torque (MG1 Part 31)
  • Totally Enclosed Fan Cooled, IP55 Protection
  • VPI Lap Wound Stator with Anti-Fungal Coating
  • Double Lip Oil Seal on DE & ODE
  • Internal Shaft Grounding Brush
  • 1.25 Service Factor – 143T Frame and Up
  • 50 Hz Capabble at 1.00 Service Factor
  • 40°C Ambient Temperature Rating
  • 1045 Carbon Steel Shaft
  • Multi-Mount Frame with Removable Feet
  • Oversized Drive End Bearing
  • One-Way Brass Condensation Drains
  • Aluminum Conduit Box, 90° Rotatable
  • Class F Insulation System with Class H Stator
  • F1, F2 & F3 Box Position Convertible (Shipped F1)
  • Class 1, Division 2, Group C & D Compliant
  • Installation up to 3300ft Altitude
  • 36 Month Warranty from Purchase Date

General Data

BrandTechtop
Model NumberGX3-AL-TF-182T-2-B-D-3
Factory TypeTXA
Frame Size182T
Frame EnclosureTEFC
MountingRigid
Insulation ClassF
DutyContinuous / S1
NEMA DesignA
Frame MaterialCast Aluminum
Ingress ProtectionIP55
TropicalizationTrue
Cable EntryOne 3/4" NPT
Feet RemovableTrue
Double Drilled-
Paint ColorGraphite Gray
Paint RAL7024
Weight50.0 lbs

Electrical Data

Horsepower3.0 HP
Speed3515 RPM @ 60Hz
2900 RPM @ 50Hz
Voltage208-230/460VAC
190/380VAC
Phase3
Full Load Amps7.77/7.17/3.59 Amps (208/230/460V) @ 60Hz
8.38/4.19 Amps (190/380V) @ 50Hz
Power Factor0.89 @ 60Hz
Nominal Efficiency86.5% @ 60Hz
86.2% @ 50Hz
Service Factor1.25 @ 60Hz
1.00 @ 50Hz
KVA CodeK @ 60Hz
H @ 50Hz
Number of Leads9
ConnectionYY/Y

Mechanical Data

DE Bearing6306ZZ
NDE Bearing6206ZZ
Wavy WasherNDE

Site Conditions

Ambient Temperature40°C
Altitude1000m above sea level

Dimensions

Techtop Motor Dimensions

Documentation

Type
Electric Motor
Speed
3600RPM
Horsepower
3HP
Enclosure
TEFC
Frame
182T
Input Phase
3-Phase
Input Voltage
230VAC
Input Voltage
460VAC
