/RD1RSTF182T4BB3 Techtop 3HP Electric Motor

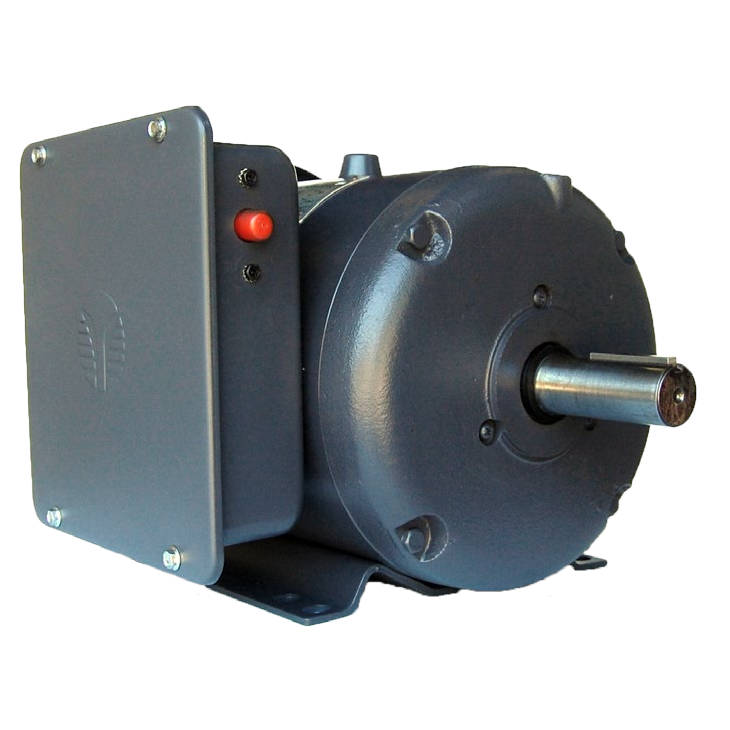

RD1RSTF182T4BB3 Techtop 3HP Electric Motor
Enlarge Photo

Product ID: RD1RSTF182T4BB3

RD1RSTF182T4BB3 Techtop 3HP Electric Motor

MFG: TechTop Industries, Inc.
MFG Part Number: RD1-RS-TF-182T-4-B-B-3

Selected accessories will also be added to cart
$668.64 / Each
Quantity:
Farm Duty, 1740RPM, TEFC, 182T Frame, 208-230V 1-Phase, Rigid Base

Standard Features:

  • Manual Reset Protector
  • High Efficiency Dual Cap Design
  • High Quality Molded Gaskets
  • Over 300% Starting Torque
  • Cast Iron End Bells
  • Dual Oversized Ball Bearings
  • Dependable Mechanical Starting Switch
  • 18 Month Warranty

Electrical Data:

ManufacturerTechtop
Part NumberRD1RSTF182T4BB3
RD1-RS-TF-182T-4-B-B-3
Horsepower3.0 HP
Speed1740 RPM
Voltage208-230V
PhaseSingle (1)
Full Load Amps14.3-12.9 A
Power Factor0.93
Nominal Efficiency80.0 %
Service Factor1.15
KVA CodeH
LRC @ 60Hz HV90.4247
Start CapacitorSCAP350V-250UF
Run CapacitorRCAP450V-20UF
Number of Leads5

General Data:

Frame Size182T
Frame EnclosureTEFC
MountingRigid
Insulation ClassF
DutyContinuous / S1
NEMA DesignL
Frame MaterialRolled Steel
Ingress ProtectionIP54
Cable Entry1.1”
Double DrilledTrue
Paint ColorGraphite Gray
Paint RAL7024
Weight92.0 lbs

Torque Values:

Locked Rotor38.8067 lb-ft
437.0 % FLT
Pull-Up19.6253 lb-ft
221.0 % FLT
Breakdown21.135 lb-ft
238.0 % FLT
Full Load8.88025 lb-ft
100.0 % FLT
Type
Electric Motor
Input Phase
Single Phase
Application
Farm Duty
Enclosure
TEFC
Horsepower
3HP
Frame
182T
Speed
1800RPM
Input Voltage
208VAC
Input Voltage
230VAC
