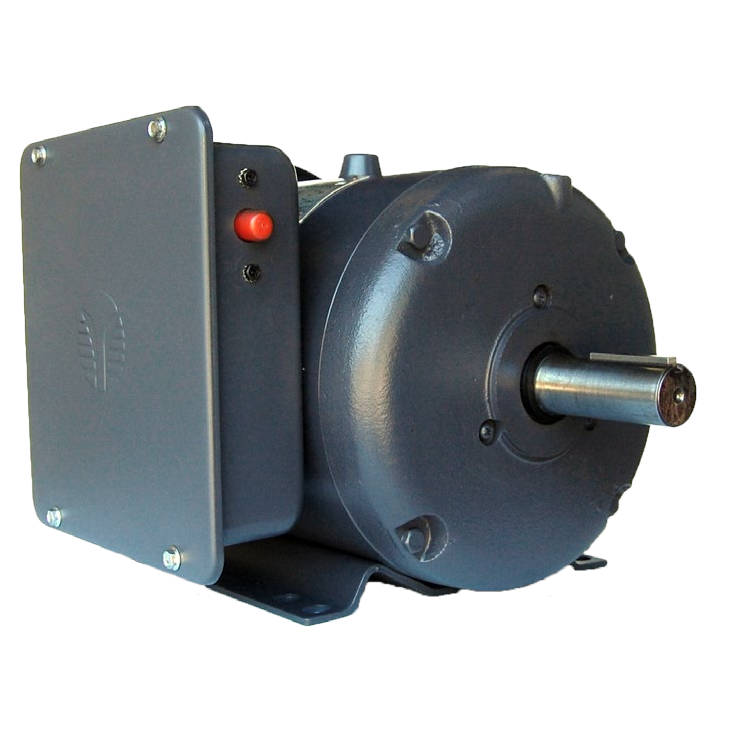

/RD1RSTF184T4BB5 Techtop 5HP Electric Motor
RD1RSTF184T4BB5 Techtop 5HP Electric Motor
Enlarge Photo

Product ID: RD1RSTF184T4BB5

RD1RSTF184T4BB5 Techtop 5HP Electric Motor

MFG: TechTop Industries, Inc.
MFG Part Number: RD1-RS-TF-184T-4-B-B-5

Selected accessories will also be added to cart
$804.72 / Each
Quantity:
Farm Duty, 1740RPM, TEFC, 184T Frame, 208-230V 1-Phase

Standard Features:

  • Manual Reset Protector
  • High Efficiency Dual Cap Design
  • High Quality Molded Gaskets
  • Over 300% Starting Torque
  • Cast Iron End Bells
  • Dual Oversized Ball Bearings
  • Dependable Mechanical Starting Switch
  • 18 Month Warranty

Electrical Data:

ManufacturerTechtop
Part NumberRD1RSTF184T4BB5
RD1-RS-TF-184T-4-B-B-5
Horsepower5 HP
Speed1740 RPM
Voltage208-230V
PhaseSingle (1)
Full Load Amps23.2-21.0 A
Power Factor0.93
Nominal Efficiency82.0 %
Service Factor1.15
KVA CodeG
LRC @ 60Hz HV134.367
Start CapacitorSCAP-350V-350UF
Run CapacitorRCAP450V-30UF
Number of Leads5

General Data:

Frame Size184T
Frame EnclosureTEFC
MountingRigid
Insulation ClassF
DutyContinuous / S1
NEMA DesignL
Frame MaterialRolled Steel
Ingress ProtectionIP54
Cable Entry1.1”
Double DrilledTrue
Paint ColorGraphite Gray
Paint RAL7024
Weight110.0 lbs

Torque Values:

Locked Rotor50.4729 lb-ft
329.0 % FLT
Pull-Up28.8416 lb-ft
188.0 % FLT
Breakdown33.444 lb-ft
218.0 % FLT
Full Load15.3413 lb-ft
100.0 % FLT
Type
Electric Motor
Input Phase
Single Phase
Application
Farm Duty
Enclosure
TEFC
Horsepower
5HP
Frame
184T
Speed
1800RPM
Input Voltage
208VAC
Input Voltage
230VAC
