/RD1RSTF184TC4BB5 Techtop 5 HP Electric Motor

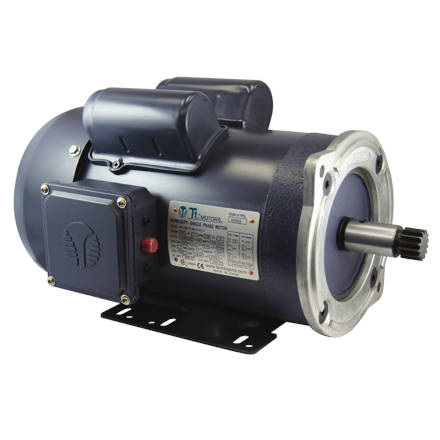

RD1RSTF184TC4BB5 Techtop 5 HP Electric Motor
Enlarge Photo

Product ID: RD1RSTF184TC4BB5

RD1RSTF184TC4BB5 Techtop 5 HP Electric Motor

MFG: TechTop Industries, Inc.
MFG Part Number: RD1-RS-TF-184TC-4-B-B-5

Selected accessories will also be added to cart
$817.32 / Each
Quantity:
Farm Duty, 1800RPM, TEFC, 184TC Frame, 115/208-230V 1-Phase, C-Face with Base, Rolled Steel

Standard Features:

  • Manual Reset Protector
  • High Efficiency Dual Cap Design
  • High Quality Molded Gaskets
  • Over 300% Starting Torque
  • Cast Iron End Bells
  • Dual Oversized Ball Bearings
  • Dependable Mechanical Starting Switch
  • 18 Month Warranty

Electrical Data:

ManufacturerTechtop
Part NumberRD1RSTF184TC4BB5
RD1-RS-TF-184TC-4-B-B-5
Horsepower5 HP
Speed1740 RPM
Voltage208-230V
PhaseSingle (1)
Full Load Amps23.2-21.0 A
Power Factor0.93
Nominal Efficiency82.0 %
Service Factor1.15
KVA CodeG
LRC @ 60Hz HV134.367
Start CapacitorSCAP350V-350UF
Run CapacitorRCAP450V-30UF
Number of Leads5

General Data:

Frame Size184TC
Frame EnclosureTEFC
MountingRigid/C-Flange
Insulation ClassF
DutyContinuous / S1
NEMA DesignL
Frame MaterialRolled Steel
Ingress ProtectionIP54
Cable Entry1.1”
Double DrilledTrue
Paint ColorGraphite Gray
Paint RAL7024
Weight110.0 lbs

Torque Values:

Locked Rotor50.4729 lb-ft
329.0 % FLT
Pull-Up28.8416 lb-ft
188.0 % FLT
Breakdown33.444 lb-ft
218.0 % FLT
Full Load15.3413 lb-ft
100.0 % FLT
Type
Electric Motor
Type
Electric Motor
Input Phase
Single Phase
Input Phase
Single Phase
Speed
1800RPM
Speed
1800RPM
Application
Farm Duty
Application
Farm Duty
Enclosure
TEFC
Frame
184TC
Horsepower
5HP
Input Voltage
208VAC
Input Voltage
230VAC
