/RD1RSTF213TZ4BB7.5 Techtop 7.5HP Electric Motor

Product ID: RD1RSTF213TZ4BB7.5

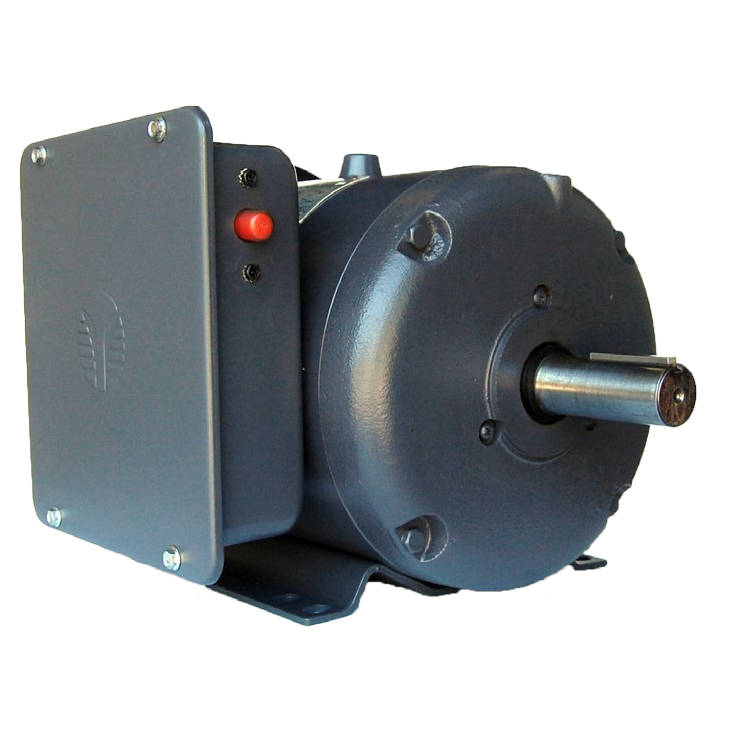

RD1RSTF213TZ4BB7.5 Techtop 7.5HP Electric Motor

MFG: TechTop Industries, Inc.
MFG Part Number: RD1RSTF213TZ4BB7.5

Selected accessories will also be added to cart

$1,119.20 / Each

Quantity:

Farm Duty, 1740RPM, TEFC, 213TZ Frame, 208-230V 1-Phase

Details
Purchase Components

Standard Features:

Manual Reset Protector
High Efficiency Dual Cap Design
High Quality Molded Gaskets
Over 300% Starting Torque
Cast Iron End Bells
Dual Oversized Ball Bearings
Dependable Mechanical Starting Switch
18 Month Warranty

Electrical Data:

Manufacturer	Techtop
Part Number	RD1RSTF213TZ4BB7.5 RD1-RS-TF-213TZ-4-B-B-7.5
Horsepower	7.5 HP
Speed	1740 RPM
Voltage	208-230V
Phase	Single (1)
Full Load Amps	34.3-31.0 A
Power Factor	0.94
Nominal Efficiency	82.0 %
Service Factor	1.15
KVA Code	H
LRC @ 60Hz HV	218.397
Start Capacitor	SCAP350V-400UF
Run Capacitor	RCAP450V-40UF
Number of Leads	5

General Data:

Frame Size	213TZ
Frame Enclosure	TEFC
Mounting	Rigid
Insulation Class	F
Duty	Continuous / S1
NEMA Design	L
Frame Material	Rolled Steel
Ingress Protection	IP54
Cable Entry	1.1”
Double Drilled	True
Paint Color	Graphite Gray
Paint RAL	7024
Weight	185.0 lbs
