/RD1RSTF215T4BB10 Techtop 10HP Electric Motor
RD1RSTF215T4BB10 Techtop 10HP Electric Motor
Enlarge Photo

Product ID: RD1RSTF215T4BB10

RD1RSTF215T4BB10 Techtop 10HP Electric Motor

MFG: TechTop Industries, Inc.
MFG Part Number: RD1-RS-TF-215T-4-B-B-10

Selected accessories will also be added to cart
$1,464.12 / Each
Quantity:
Farm Duty, 1800RPM, TEFC, 215T Frame, 208-230V 1-Phase

Standard Features:

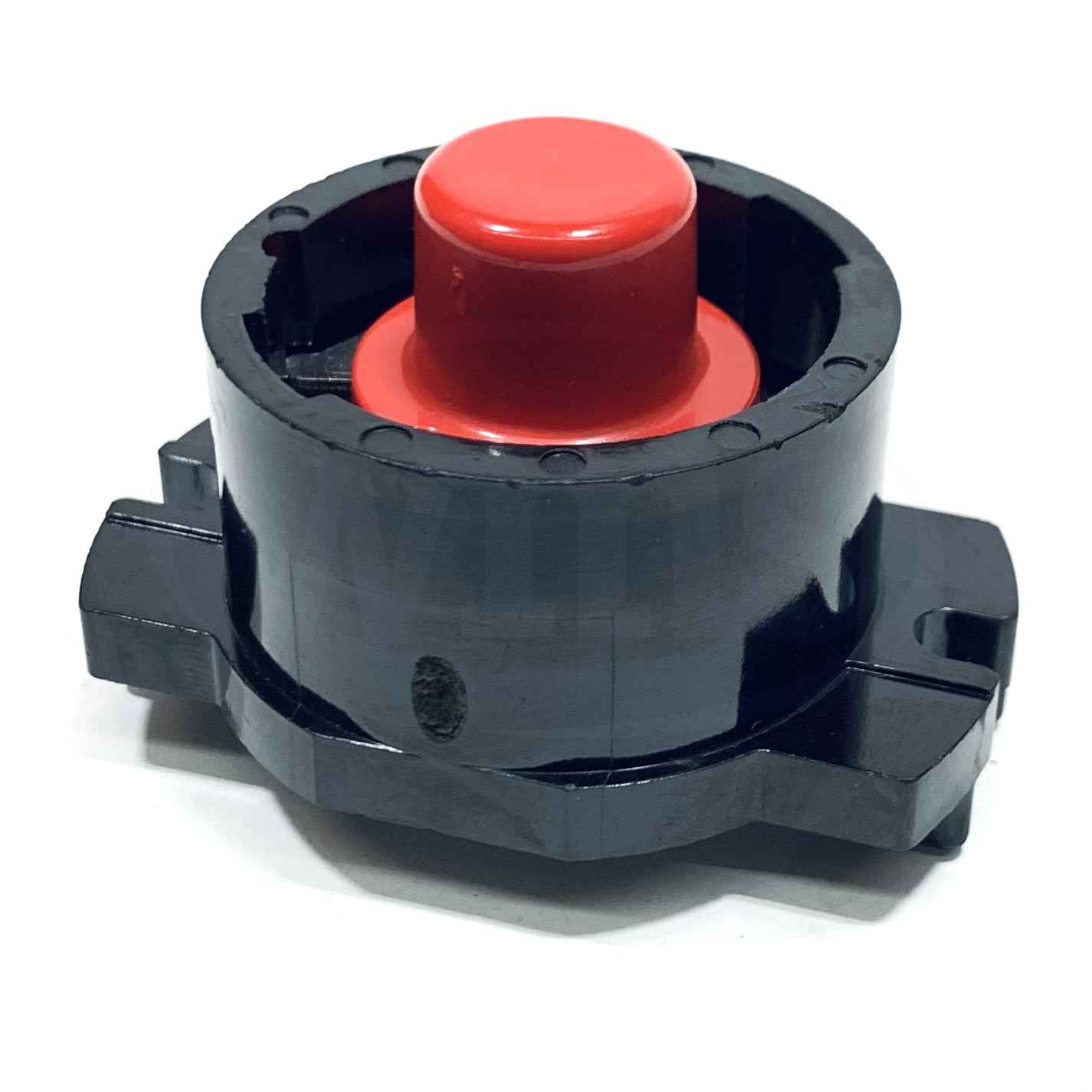

  • Manual Reset Protector
  • High Efficiency Dual Cap Design
  • High Quality Molded Gaskets
  • Over 300% Starting Torque
  • Cast Iron End Bells
  • Dual Oversized Ball Bearings
  • Dependable Mechanical Starting Switch
  • 18 Month Warranty

Electrical Data:

ManufacturerTechtop
Part NumberRD1RSTF215T4BB10
RD1-RS-TF-215T-4-B-B-10
Horsepower10.0 HP
Speed1740 RPM
Voltage208-230V
PhaseSingle (1)
Full Load Amps46.3-41.8 A
Power Factor0.94
Nominal Efficiency83.0 %
3/4 Load Efficiency-
Service Factor1.15
KVA CodeH
Full Load Amps @ 208V46.3 A
LRC @ 60Hz HV299.932

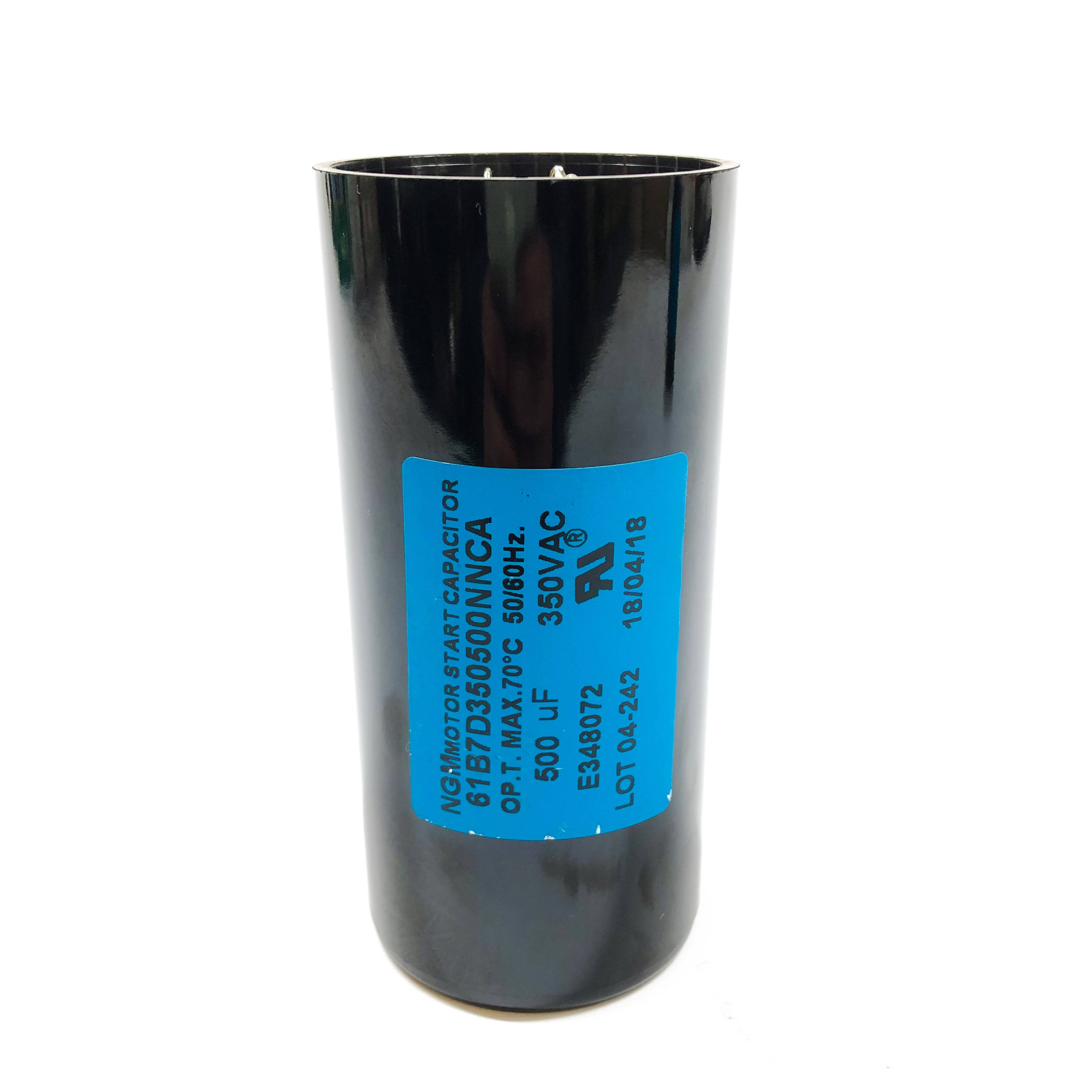

Start CapacitorSCAP350V-500UF
Run CapacitorRCAP450V-50UF
Number of Leads5

General Data:

Frame Size215T
Frame EnclosureTEFC
MountingRigid
Insulation ClassF
DutyContinuous / S1
NEMA DesignL
Frame MaterialRolled Steel
Ingress ProtectionIP54
Cable Entry1.1”
Paint ColorGraphite Gray
Paint RAL7024
Weight207.0 lbs

Torque Values:

Locked Rotor108.962 lb-ft
362.0 % FLT
Pull-Up58.9958 lb-ft
196.0 % FLT
Breakdown68.0258 lb-ft
226.0 % FLT
Full Load30.0999 lb-ft
100.0 % FLT
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEFC
Horsepower
10HP
Frame
215T
Input Voltage
208VAC
Input Voltage
230VAC
