/Products/Electric Motors/Air Compressor/Leeson/131515.00 Leeson 2HP Compressor Duty Electric Motor, 1740RPM
Click Image to Expand

Product ID: 131515.00

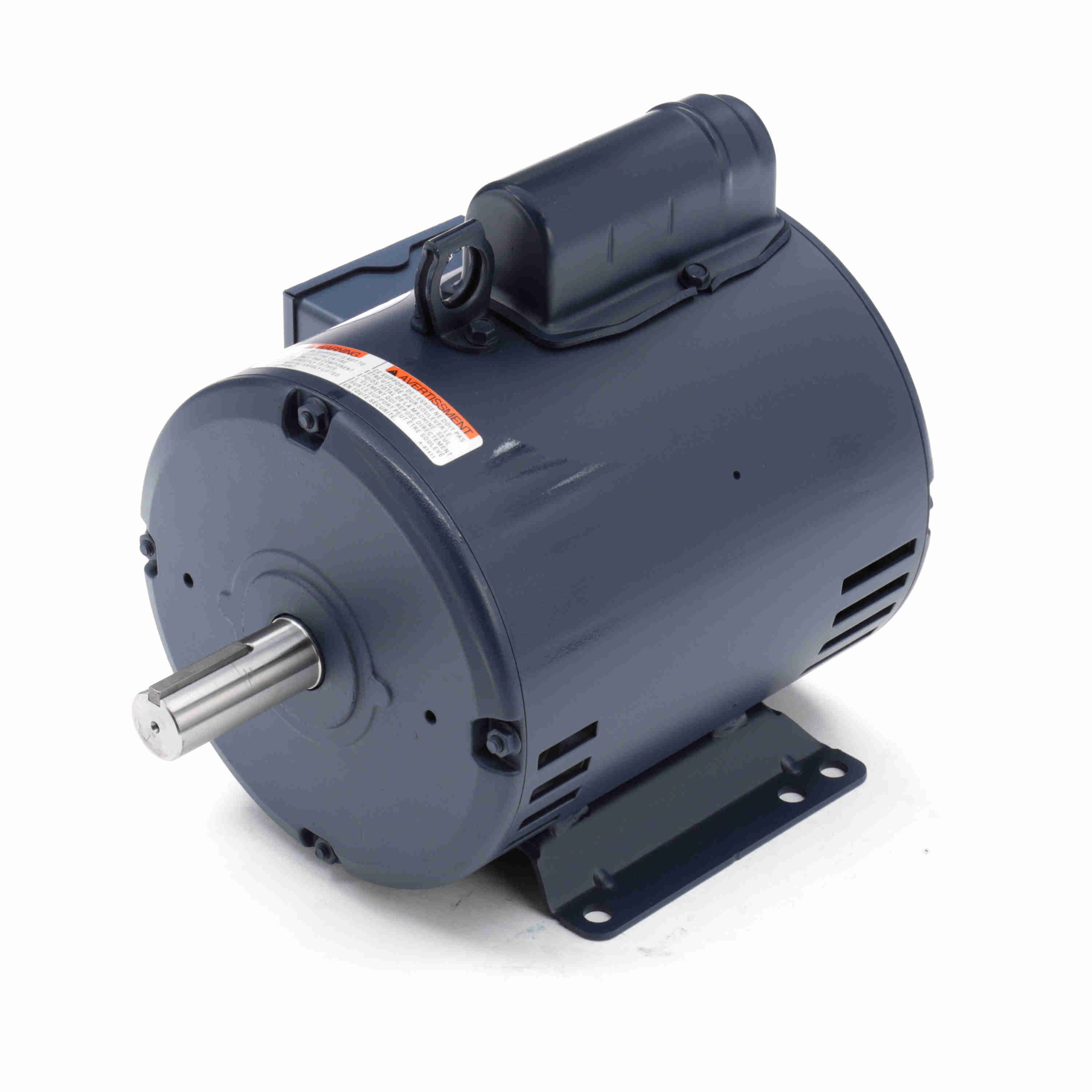

131515.00 Leeson 2HP Compressor Duty Electric Motor, 1740RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131515.00

Selected accessories will also be added to cart
$718.71 / Each
Quantity:
DP, 182T Frame, 115/208-230V Single Phase 60Hz, Rigid Base, C182C17DB8A

Features

Features
  • Durable rolled steel construction
  • NEMA design B performance
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified
  • 1-year warranty on general purpose motors

General Specifications

General Specifications
Model :C182C17DB8A Catalog No :131515.00
Part Description :2HP..1740RPM.182.DP.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL PURPOSE.C182C17DB8A Category :Air Compressor
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :2 Hp Output KW :1.5 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :24.5/13.0-12.4 A Speed :1740 rpm
Service Factor :1.15 Phase :1
Efficiency :72 % Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :K Frame :182T
Enclosure :Drip Proof Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :N
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :13.19 in Frame Length :9.00 in
Shaft Diameter :1.125 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720017661
Weight :59.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor78.0020.60343.002.00
Full Load12.406.00100.002.00
Break-Down0.0016.10268.002.00
Pull-Up0.0015.00250.002.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 8.16
  • 0.360
  • 0.0
  • 19.2
  • 1,796
  • 0.0
  • 0.00
  • 25 %
  • 8.24
  • 0.758
  • 50.2
  • 40.0
  • 1,786
  • 0.0
  • 1.50
  • 50 %
  • 9.19
  • 1.164
  • 65.0
  • 55.1
  • 1,775
  • 0.0
  • 3.00
  • 75 %
  • 10.68
  • 1.648
  • 68.4
  • 67.1
  • 1,764
  • 0.0
  • 4.50
  • 100 %
  • 12.40
  • 2.122
  • 70.4
  • 74.4
  • 1,752
  • 52.0
  • 6.00
  • 115 %
  • 13.50
  • 2.260
  • 75.6
  • 69.0
  • 1,755
  • 0.0
  • 6.80
  • 125 %
  • 14.47
  • 2.642
  • 70.1
  • 79.4
  • 1,737
  • 0.0
  • 7.50
  • 150 %
  • 16.92
  • 3.215
  • 68.5
  • 82.6
  • 1,721
  • 0.0
  • 9.00
