/Products/Electric Motors/3 Phase/Leeson/Compressor Duty/131519.00 Leeson 3HP Electric Motor, 1765RPM
Click Image to Expand

Product ID: 131519.00

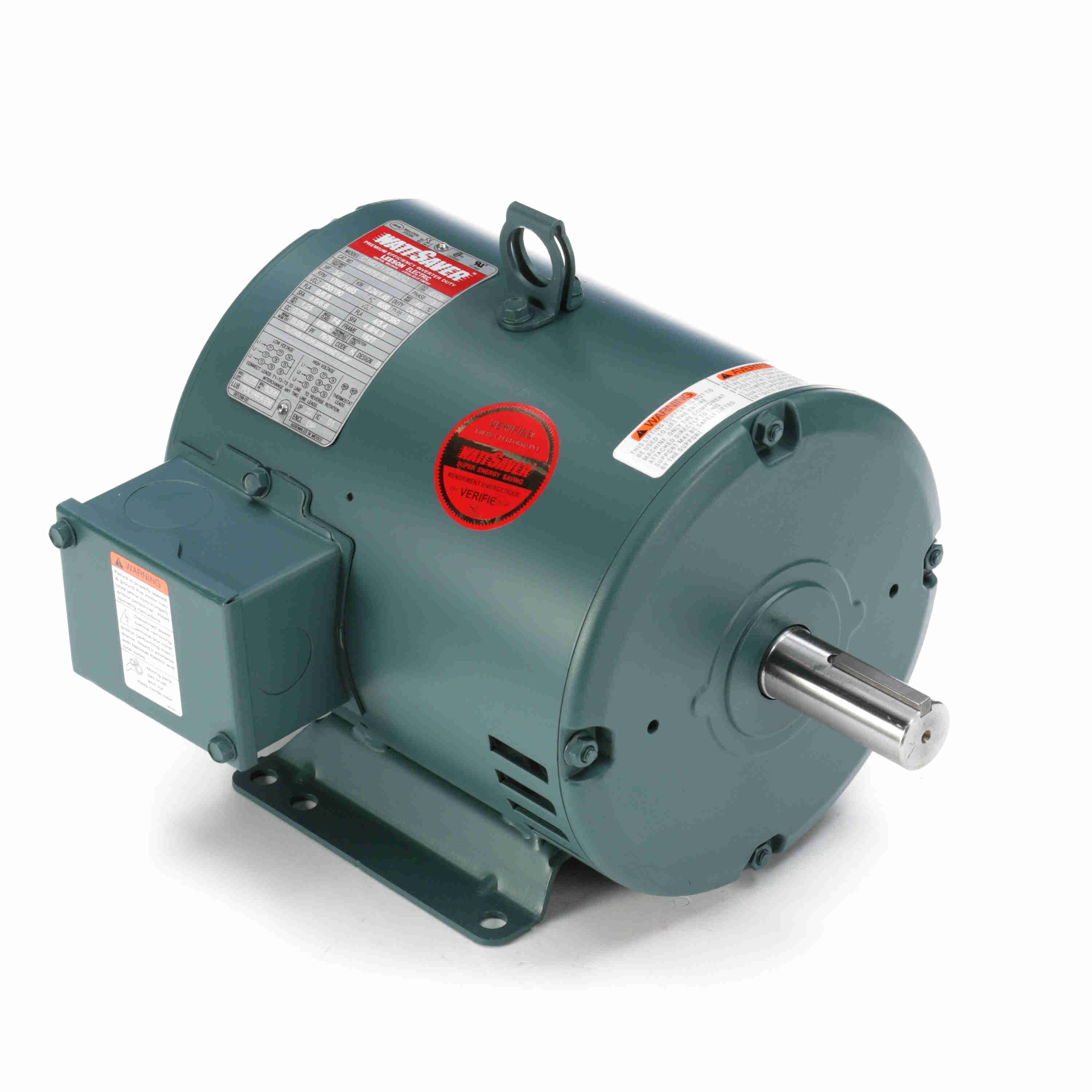

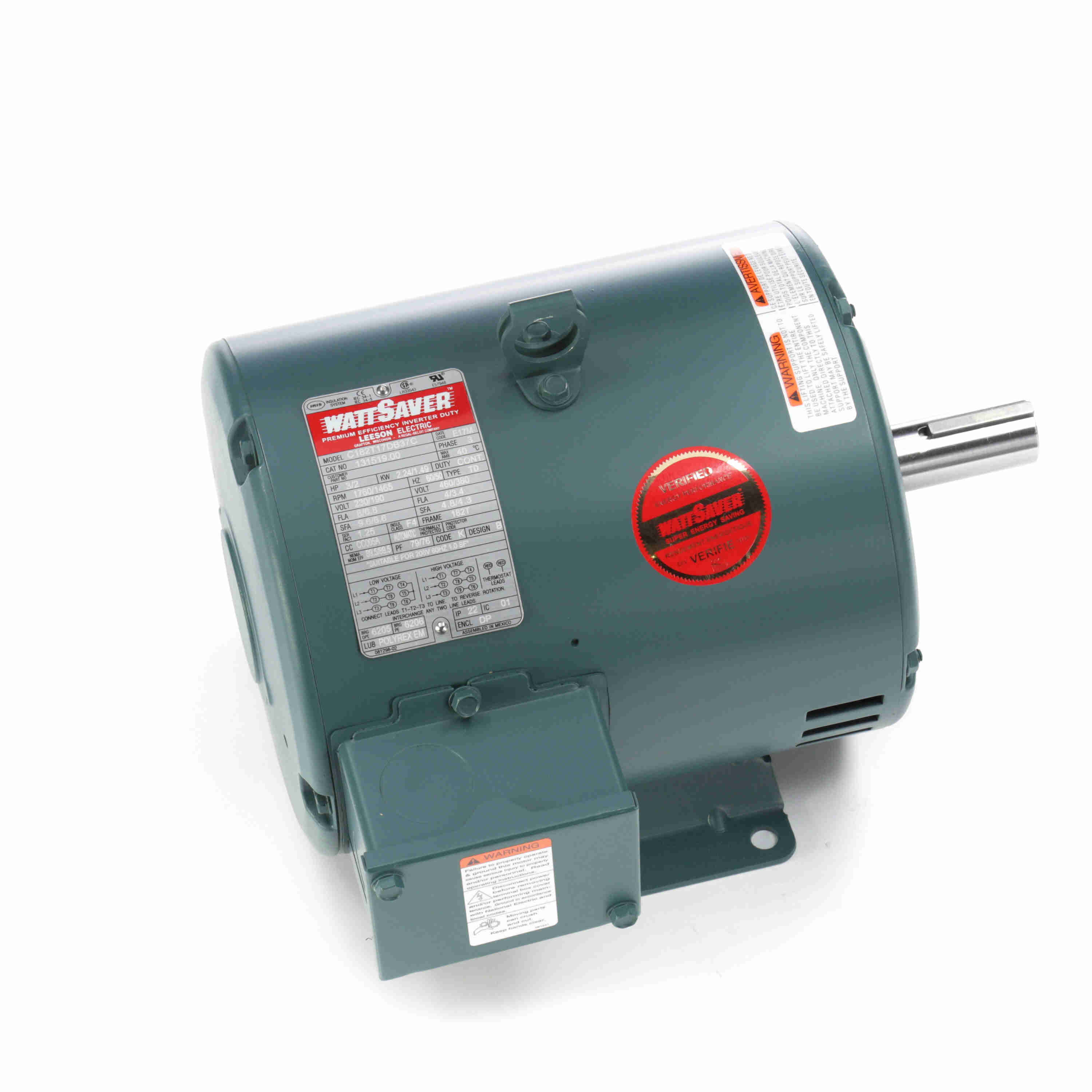

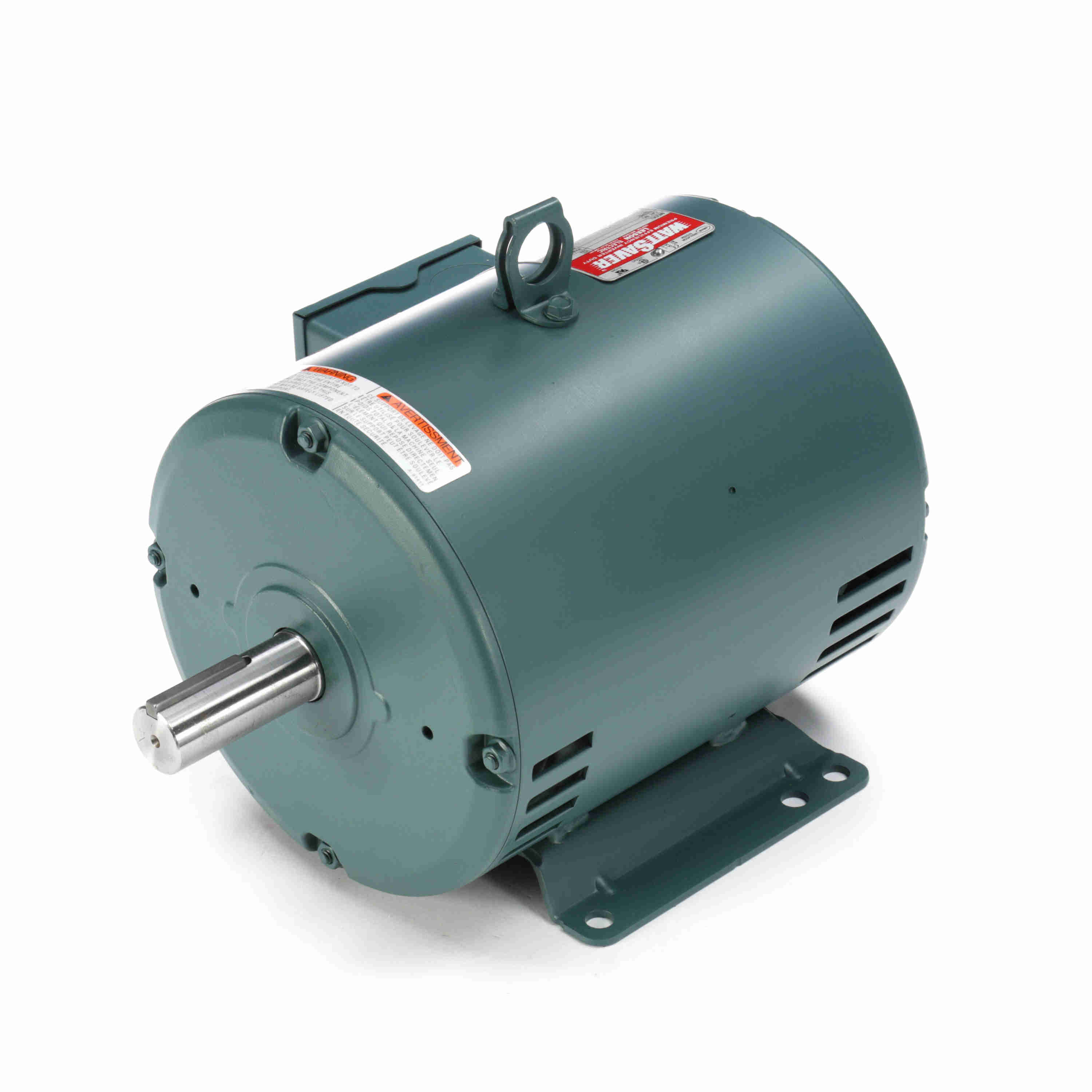

131519.00 Leeson 3HP Electric Motor, 1765RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131519.00

Temporarily out of stock
Selected accessories will also be added to cart
$323.97 / Each
Compressor Duty, DP, 182T Frame, 208-230/460V
Features
  • Double shielded ball bearings
  • Designed for belted loads
  • High starting and breakdown torque
  • Dual rotation
  • 3-year warranty on Premium efficient motors
  • Class B insulation systems, Class F 140 frame and higher
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • UL recognized and CSA certified
General Specifications
Model :C182T17DB37C Catalog No :131519.00
Part Description :..3HP..1765RPM.182.DP.230/460V.3PH.60HZ.CONT.40C.1.25SF.RIGID.C182T17DB37C.....WATTSAVER.AUTOMATIC....... Category :Open Drip Proof (ODP)
Stock :No
Nameplate Specifications
Output HP :3 Hp Output KW :2.24 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :8.4-8/4 A Speed :1760 rpm
Service Factor :1.25 Phase :3
Efficiency :89.5 % Duty :CONTINUOUS
Insulation Class :F Design Code :B
KVA Code :K Frame :182T
Enclosure :DP Overload Protector :AUTOMATIC
Ambient Temperature :40 °C Drive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :22
Technical Specifications
Electrical Type :SQ CAGE IND RUN Starting Method :ACROSS THE LINE
Poles :4 Rotation :REV
Mounting :RIGID Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :ROLLED STEEL Shaft Type :T
Overall Length :13.19 in Frame Length :9 in
Shaft Diameter :1.13 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720017739
Weight :77.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up33.500.020.80231.03500.000.03.00
Break-Down22.000.036.40404.01,4900.000.03.00
Locked-Rotor34.200.021.00233.000.000.03.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.00
  • 0.105
  • 0.0
  • 6.6
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 2.20
  • 0.680
  • 82.0
  • 39.2
  • 1,790
  • 0.0
  • 2.21
  • 50 %
  • 2.60
  • 1.265
  • 88.2
  • 59.7
  • 1,779
  • 0.0
  • 4.40
  • 75 %
  • 3.20
  • 1.865
  • 89.5
  • 71.9
  • 1,767
  • 0.0
  • 6.65
  • 100 %
  • 4.00
  • 2.500
  • 89.5
  • 79.3
  • 1,770
  • 31.0
  • 9.00
  • 115 %
  • 4.50
  • 2.865
  • 90.0
  • 80.6
  • 1,752
  • 38.0
  • 10.27
  • 125 %
  • 4.80
  • 3.125
  • 89.6
  • 81.5
  • 1,745
  • 0.0
  • 11.17
  • 150 %
  • 5.60
  • 3.790
  • 89.1
  • 83.5
  • 1,730
  • 0.0
  • 13.48
