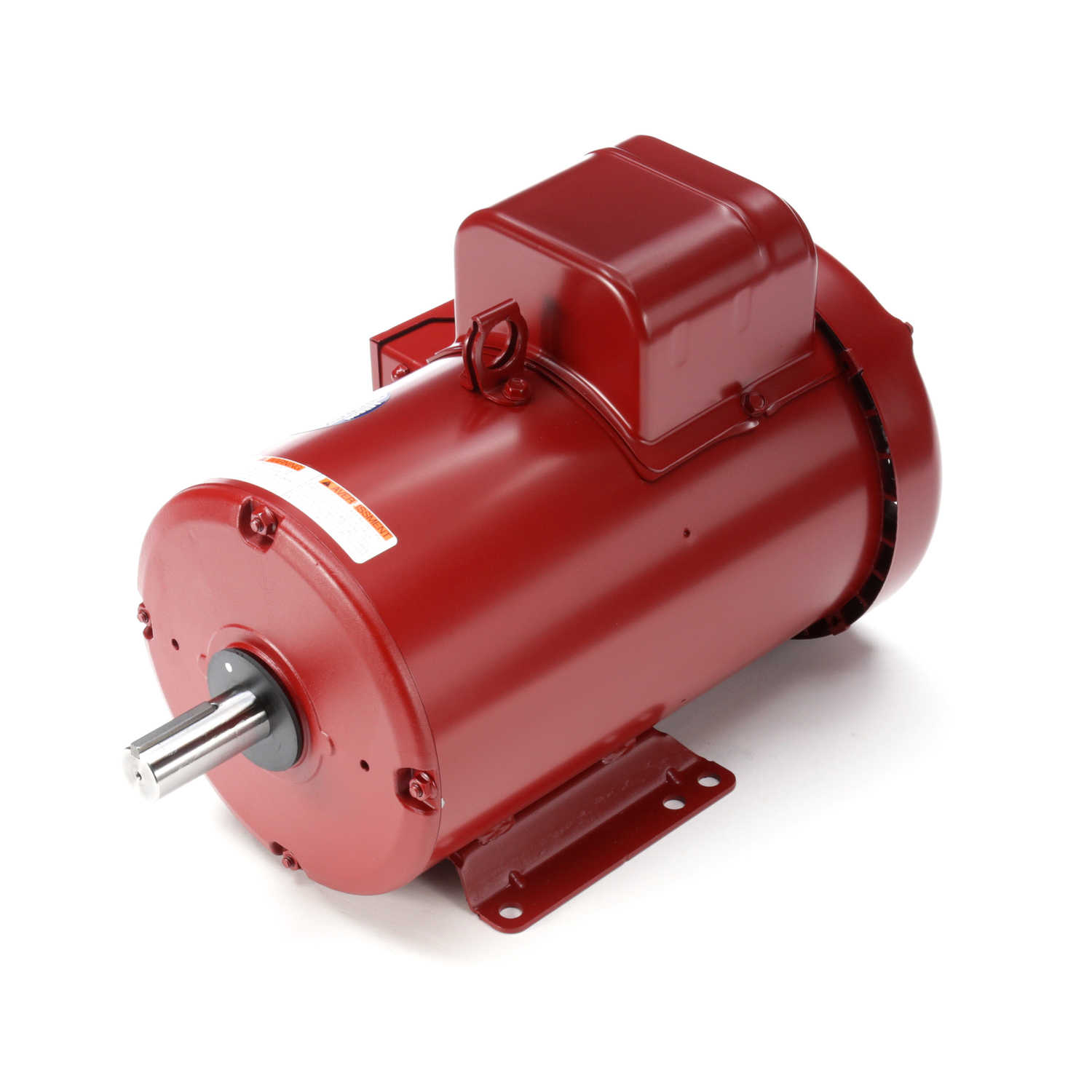

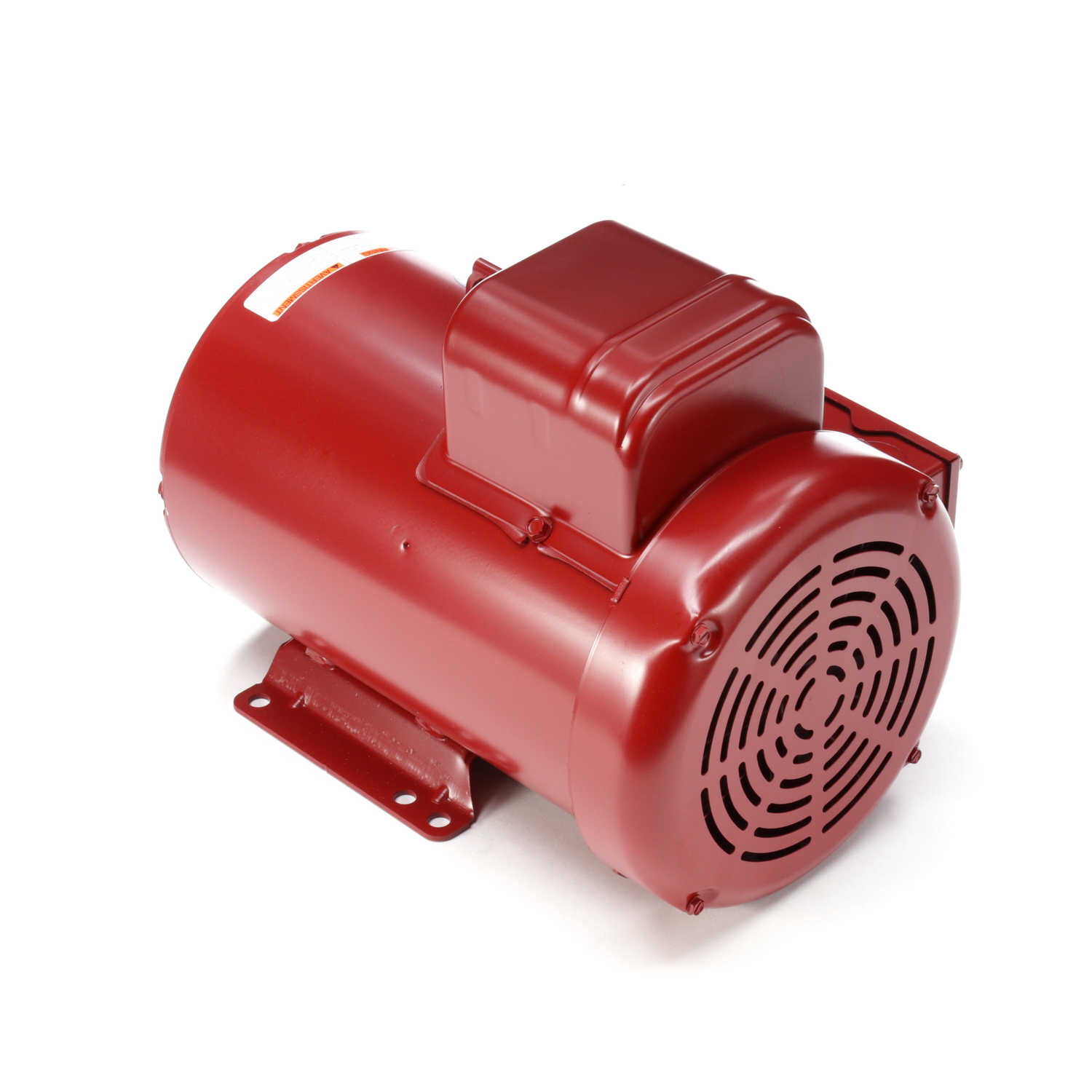

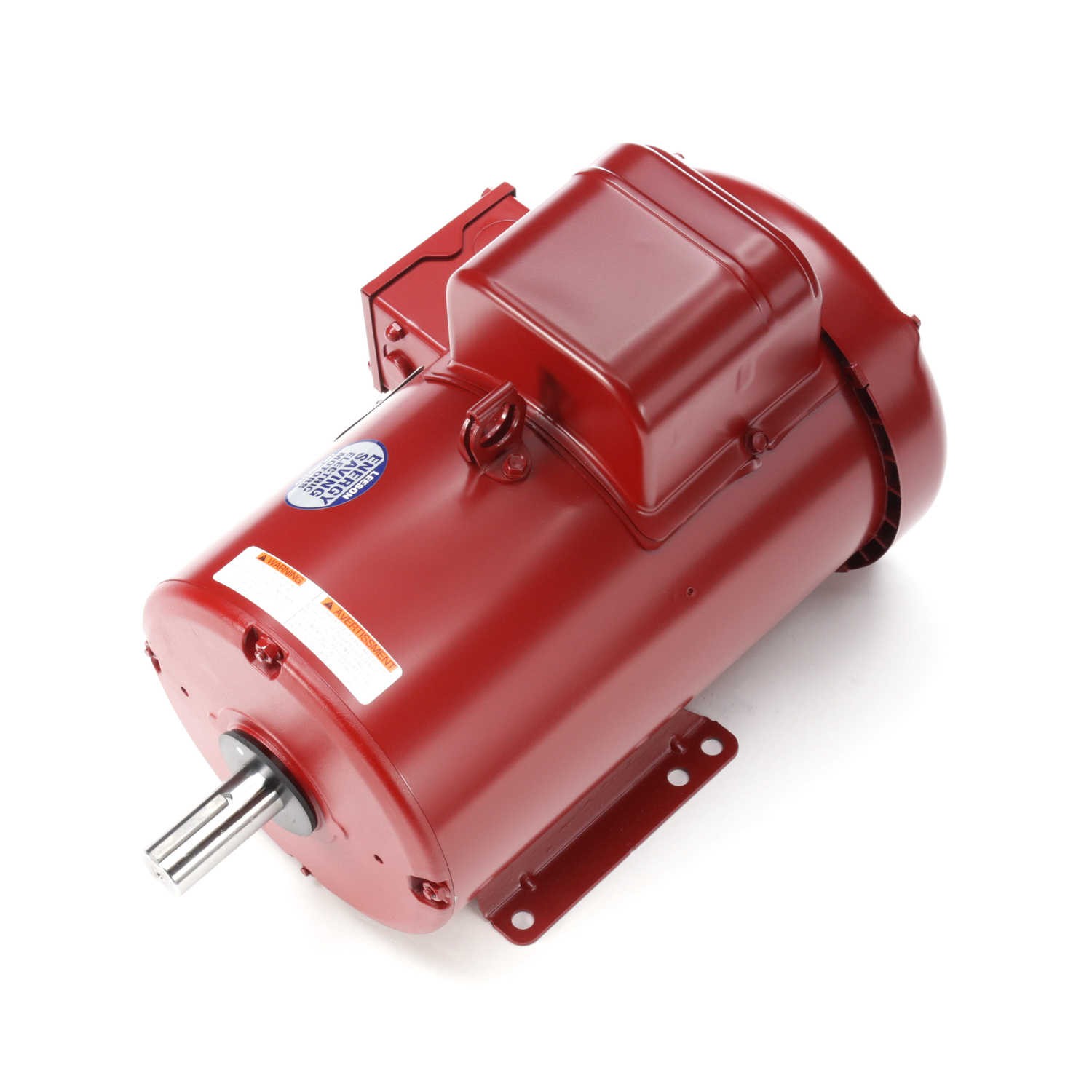

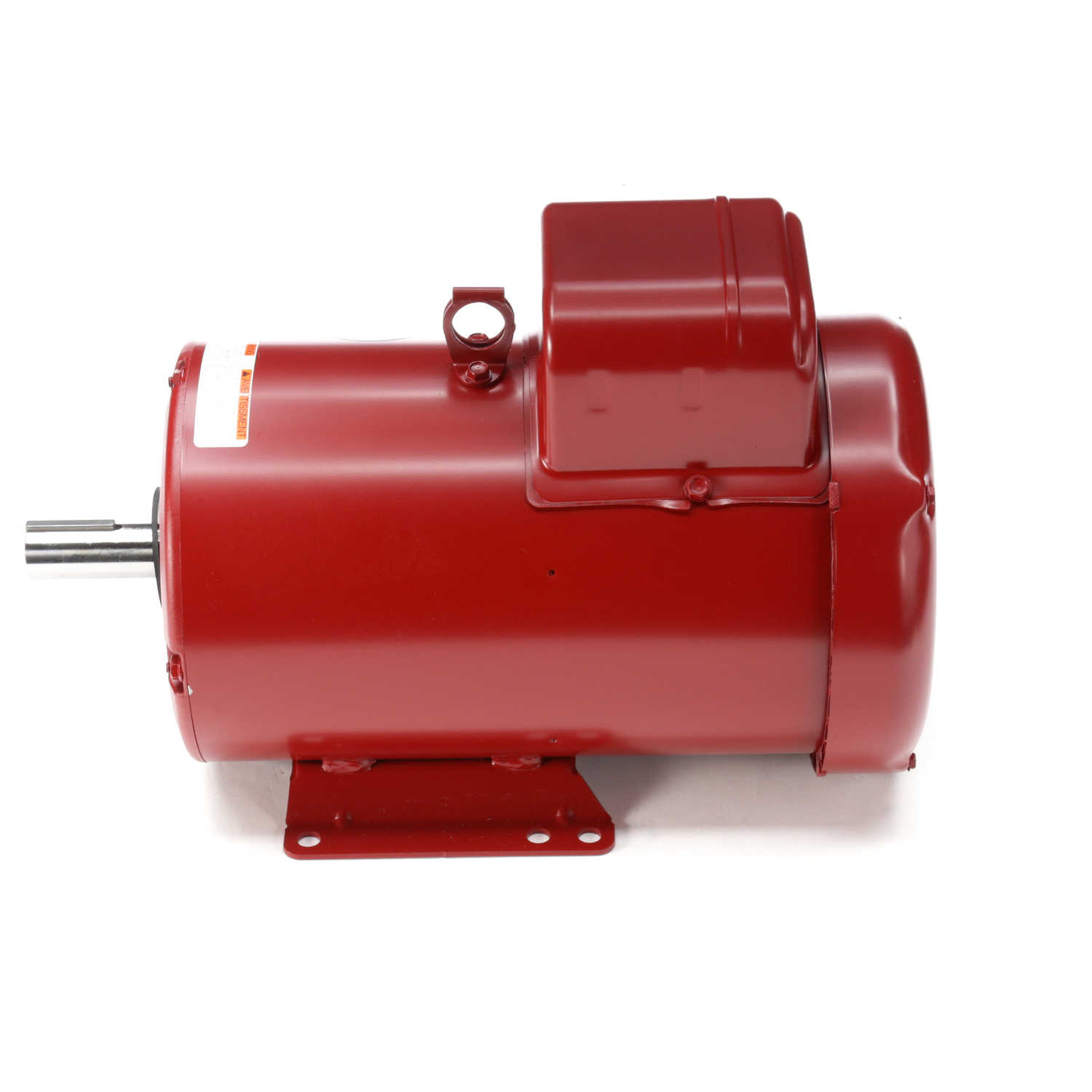

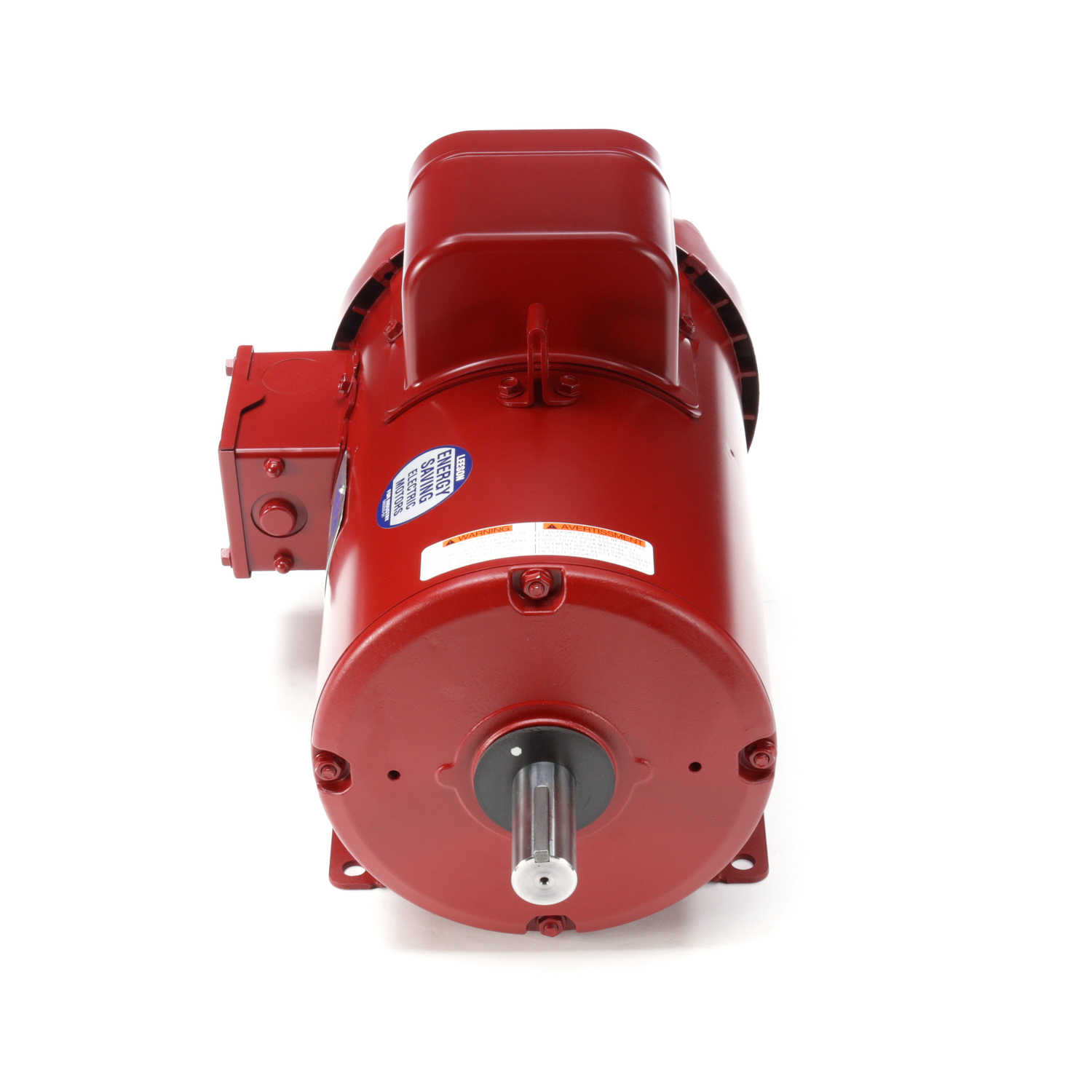

Farm Duty
1/3 to 10 HP, TEFC, High Torque (HT): Feeders, conveyors, fans, compressors, spray washers, grinders, elevators, pumps and other demanding applications that require high starting torque.
2 to 10 HP, TEFC, Extra High Torque (EHT): Silo unloaders, barn cleaners, bunk feeders, conveyors and other machinery requiring extra high starting torque. Motors have 300% and greater LRT.
Product Features
|
| |
|
|
|
| Catalog No |
131543.00 |
Model
|
P184K17FB16C |
| Product type
|
AC MOTOR |
Stock |
Stock |
| Description
|
..5HP..1740RPM.184T.TEFC./230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.P184K17FB16C.....AG - FARM DUTY/GENERAL PURPOSE.MANUAL....... |
|
|
| Information shown is for current motor's design |
| Engineering Data |
| Volts |
230 |
Volts |
|
Volts |
|
| F.L. Amps |
20.5 |
F.L. Amps |
|
F.L. Amps |
|
| S. F Amps |
23.6 |
S. F Amps |
|
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
5 |
Duty |
CONTINUOUS |
TYPE |
KF |
| KW |
3.7 |
|
|
|
|
| Frame |
184T |
Serv. Factor |
1.15 |
Phase |
1 |
| Max Amb |
40 |
Design |
L |
Code |
H |
| Insul Class |
F |
Protection |
MANUAL |
Therm.Prot. |
LED964 |
| Eff 100% |
82.5 |
Eff 75% |
|
PF |
93 |
| UL |
Y-(LEESON UL REC)
|
CSA |
Yes |
Bearing OPE |
6205 |
| CC Number |
EXEMPT |
CE |
No |
Bearing PE |
6206 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
98 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
081285.02 |
Mounting |
RIGID |
Rotation |
SELECTIVE CCW |
| Assembly |
180-033 |
Shaft Dia. |
1 1/8 IN |
Ext. Diag. |
005056.03 |
| Cust Part No |
|
Outline |
035748-1200 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
K8483 |
| Carton Label |
Leeson Farm Duty |
|
|
GROUP: |
2 |
| Iris |
|
Paint |
RED (ENAMEL) |
Test Card |
01 |
|
| Form Factor |
|
RMS Amps |
|
Const Torque Speed Range |
|
| Torque |
|
Peak |
|
|
|
| AB Code |
|
Peak@DegC |
|
|
|
| Resistance |
|
|
|
|
|
| Connection |
|
|
|
|
|
|
| Rework Status |
|
Rework TYPE |
|
|
|
|
| Hazardous Loc |
NONE |
Brake Motors |
|
| Explosion Proof |
|
Temp Op Code |
|
FORCE |
|
| Class |
|
GROUP: |
|
VDC |
|
| Class |
|
GROUP: |
|
ADC |
|
| |
|
|
|
Brake Coil OHMs @25 C |
|
| Performance |
| Torque UOM |
LB-FT |
Inertia (WK²) |
.61 LB-FT^2 |
|
| Torque |
15(Full Load) |
35.5(Break Down) |
26.5(Pull Up) |
43.5(Locked Rotor) |
| CURRENT (amps) |
20.5(Full Load) |
0(Break Down) |
0(Pull Up) |
150(Locked Rotor) |
| Efficiency (%) |
0(Full Load) |
82.4(75% Load) |
77.9(50% Load) |
64.9(25% Load) |
| PowerFactor |
(Full Load) |
94.4(75% Load) |
92.1(50% Load) |
83(25% Load) |
|
Speed Torque Curve @
60 Hz, 230 Volts
|
| Curve Point |
Amps |
Amps(%) |
Torque |
Torque(%) |
RPM |
KW |
PF |
HP |
|
FL
|
20.5
|
-
|
15.0
|
100.0
|
1753
|
-
|
-
|
5.0
|
|
BD
|
-
|
-
|
35.5
|
237.0
|
0.0
|
-
|
-
|
5.0
|
|
PU
|
-
|
-
|
26.5
|
177.0
|
0.0
|
-
|
-
|
5.0
|
|
LR
|
150.0
|
-
|
43.5
|
290.0
|
0.0
|
-
|
-
|
5.0
|
|
SOURCE: CALCULATED
GROUP: 2
|
| Load Curve Data
@60 Hz,
230 Volts, 5 Horsepower
|
| Load |
Amps |
KW |
RPM |
Torque |
EFF |
PF |
Rise By Resis |
Frame Rise |
|
0.0
|
5.5
|
0.6
|
1795
|
0.0
|
0.0
|
47.4
|
0.0
|
-
|
|
0.25
|
7.7
|
1.47
|
1790
|
3.75
|
64.9
|
83.0
|
0.0
|
-
|
|
0.5
|
11.5
|
2.437
|
1781
|
7.5
|
77.9
|
92.1
|
0.0
|
-
|
|
0.75
|
15.9
|
3.451
|
1771
|
11.3
|
82.4
|
94.4
|
0.0
|
-
|
|
1.0
|
20.5
|
4.51
|
1755
|
15.0
|
82.8
|
95.7
|
85.0
|
-
|
|
1.25
|
25.7
|
5.636
|
1747
|
18.8
|
82.8
|
95.3
|
0.0
|
-
|
|
1.5
|
31.4
|
6.891
|
1731
|
22.5
|
80.3
|
95.4
|
0.0
|
-
|
|
1.15
|
23.6
|
0.0
|
0
|
0.0
|
0.0
|
0.0
|
0.0
|
-
|
|
SOURCE: CALCULATED
GROUP: 2
|
|
