/Products/Electric Motors/Single Phase/Leeson/131560.00 Leeson 5HP General Purpose Electric Motor, 1800RPM

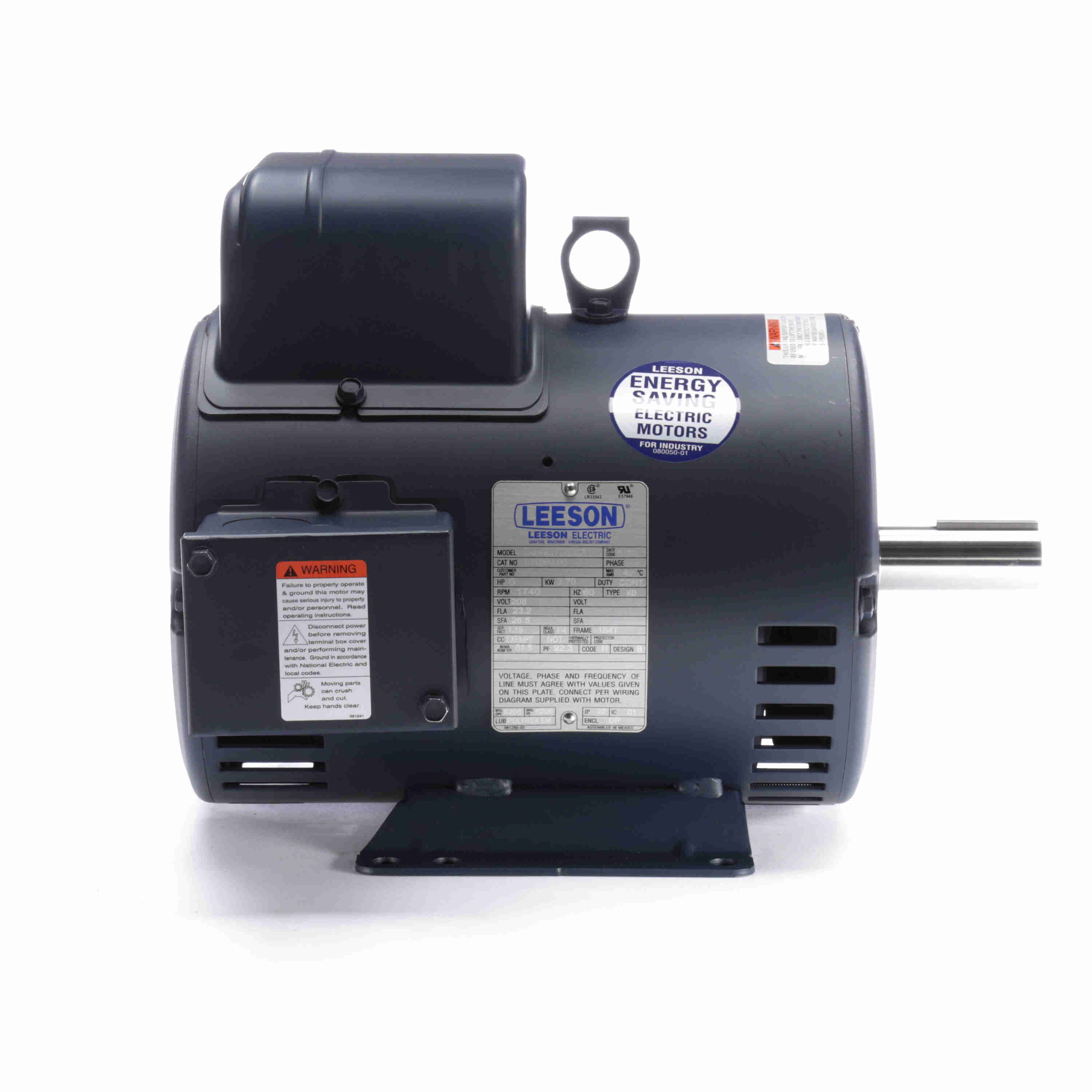

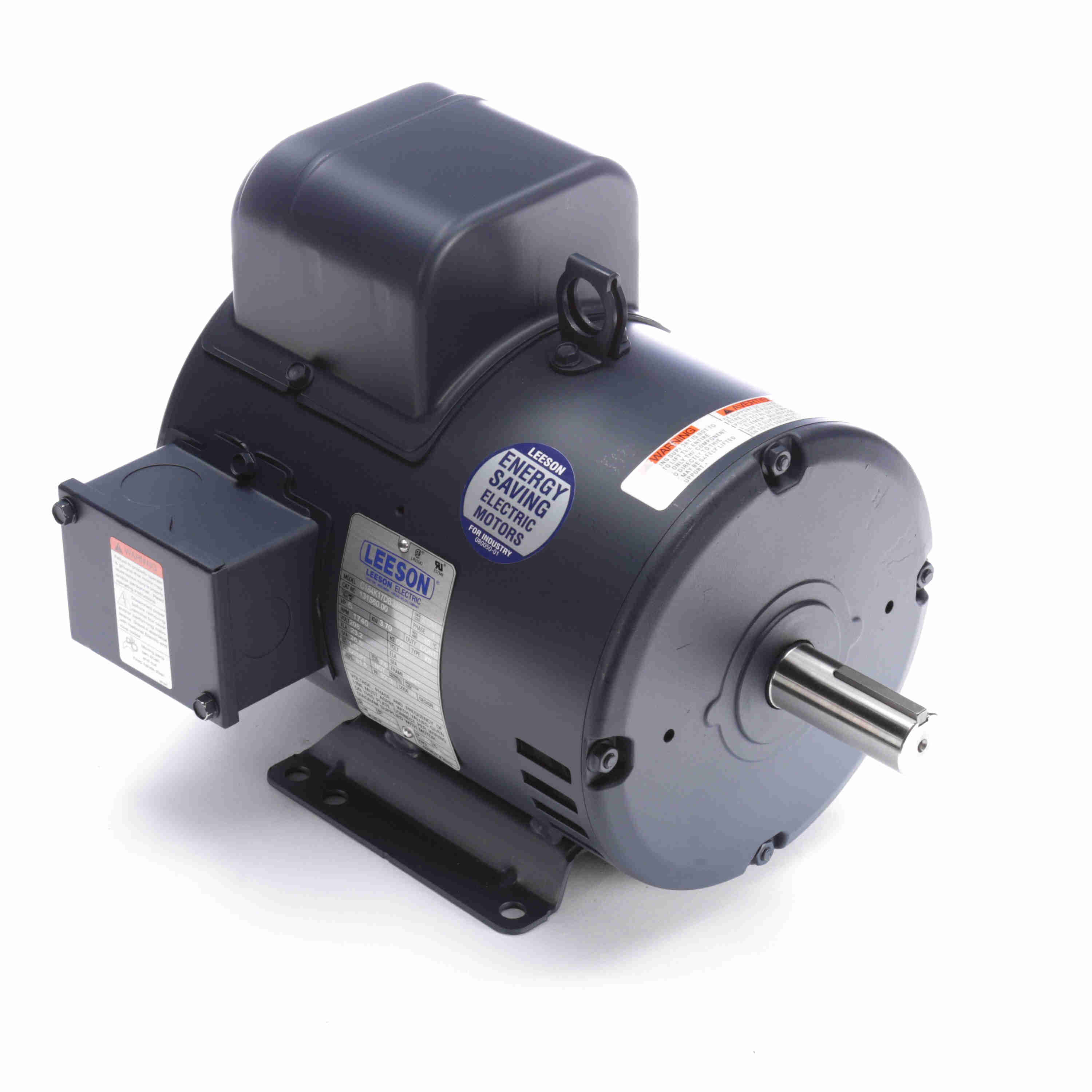

Click Image to Expand

Product ID: 131560.00

131560.00 Leeson 5HP General Purpose Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131560.00

Selected accessories will also be added to cart
$790.31 / Each
Quantity:
Drip Proof (DP), 184T Frame, 208VAC 60Hz Single Phase, Rigid Base, Rolled Steel Frame, 1-1/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA design B performance
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720018033 Weight: 85.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN Country of Origin: Mexico

Nameplate Specifications

Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 208 V
Current: 23.2 A Speed: 1740 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 81.5 % Power Factor: 92.3
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: H
Frame: 184T Enclosure: Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: N IP Code: 22
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 14.69 in
Frame Length: 10.50 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 31.60 211.0 0 5.00
Full Load 23.20 15.00 100.0 0 5.00
Locked-Rotor 159.00 38.40 256.0 0 5.00
Break-Down 0.00 34.30 229.0 0 5.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 % 175 % 200 %
Current (Amps) 7.90 9.87 13.61 17.89 23.33 28.88 35.81 43.64 54.73
Rated Output (KW) 0.00 1.53 2.47 3.44 4.58 5.71 7.07 8.54 10.58
Efficiency (%) 0.0 62.4 76.7 82.3 81.9 81.5 78.1 74.4 67.1
Power Factor (%) 0.0 74.4 87.4 92.3 94.3 95.0 94.9 94.1 92.9
Speed (RPM) 0 1,790 1,781 1,770 1,759 1,746 1,728 1,704 1,665
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (LB-FT) 0.00 3.75 7.50 11.25 15.00 18.75 22.50 26.25 30.00
