/Products/Electric Motors/Single Phase/Leeson/Pressure Washer/131633.00 Leeson 5HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: 131633.00

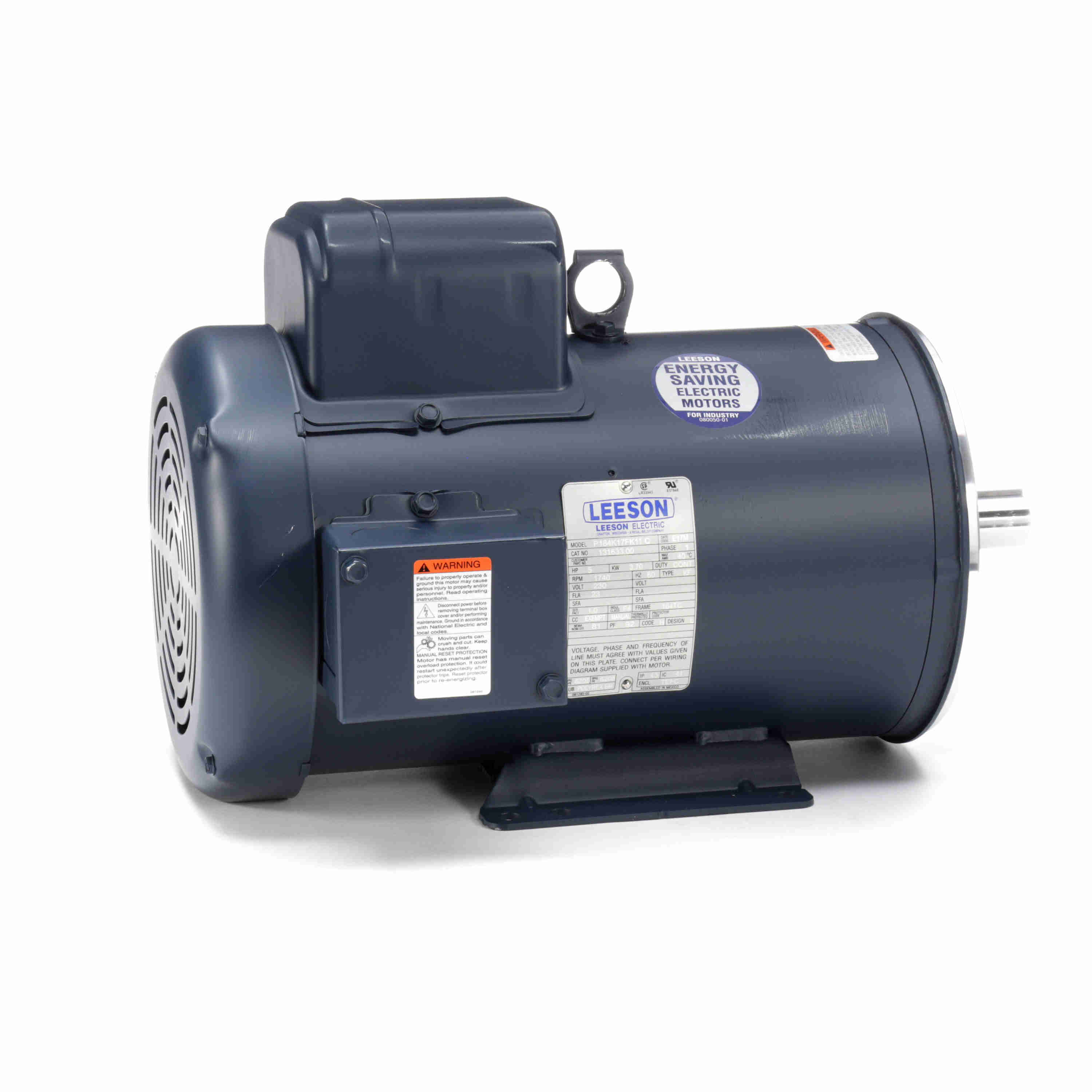

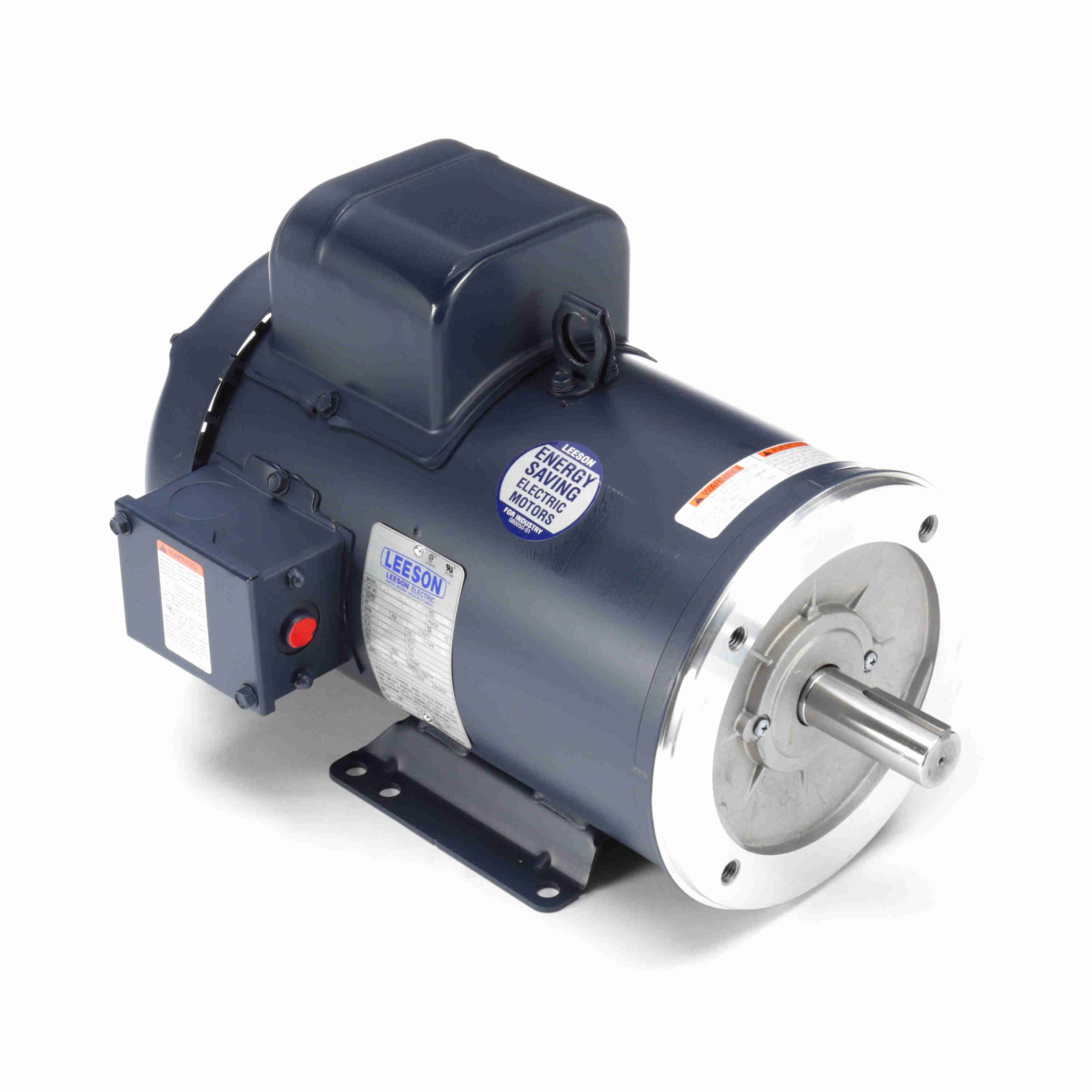

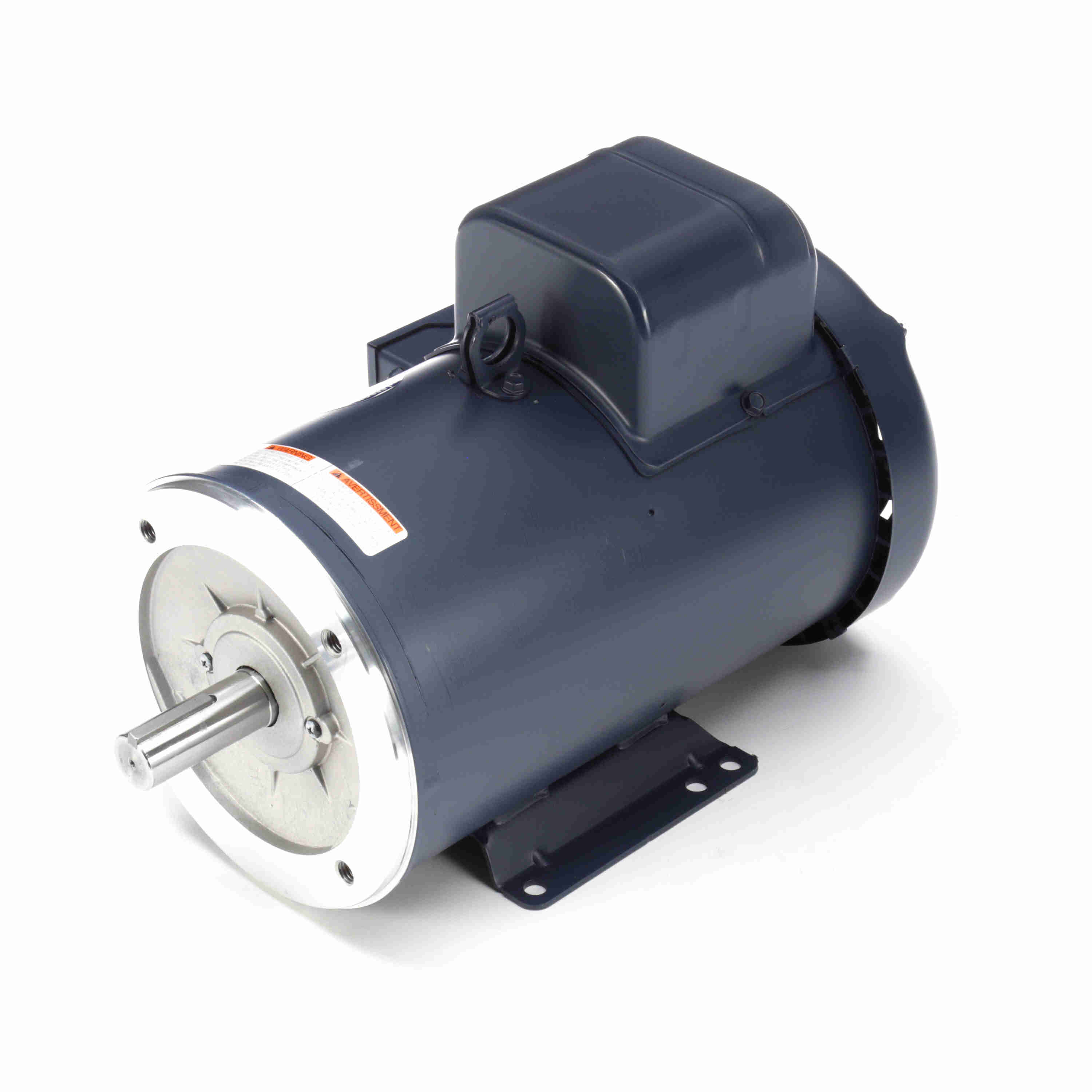

131633.00 Leeson 5HP Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131633.00

Selected accessories will also be added to cart
$1,002.38 / Each
Quantity:
P184K17FK11C, 184TC Frame, 208-230V
Features
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • Capacitor start / capacitor run designs to reduce amp draw
  • Manual reset overload protection
  • High service factor
General Specifications
Model : P184K17FK11C Catalog No : 131633.00
Part Description : 5HP..1740RPM.NAN.TEFC./230V.1PH.60HZ.CONT.MANUAL.40C.1.0SF.RIGID C.GENERAL PURPOSE.P184K17FK11C Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No
Nameplate Specifications
Output HP : 5 Hp Output KW : 3.7 kW
Frequency : 60 Hz Voltage : 230 V
Current : 23 A Speed : 1740 rpm
Service Factor : 1 Phase : 1
Efficiency : 81 % Duty : CONTINUOUS
Insulation Class : F Design Code : L
KVA Code : H Frame : 184TC
Enclosure : TEFC Overload Protector : MANUAL
Ambient Temperature : 40 °C Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : N
IP Code : 43
Technical Specifications
Electrical Type : CAP START CAP RUN Starting Method : ACROSS THE LINE
Poles : 4 Rotation : SELECTIVE CCW
Mounting : RIGID Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL Shaft Type : T
Overall Length : 17.47 in Frame Length : 12 in
Shaft Diameter : 1.13 in Shaft Extension : 2.75 in
Assembly/Box Mounting : F1 ONLY UPC : 691720018484
Weight : 107.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 35.30 235.0 0 5.00
Full Load 23.00 15.00 100.0 0 5.00
Locked-Rotor 149.00 46.50 310.0 0 5.00
Pull-Up 0.00 30.50 203.0 0 5.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 7.70
  • 0.430
  • 0.0
  • 24.3
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 8.98
  • 1.290
  • 73.9
  • 62.5
  • 1,790
  • 0.0
  • 3.75
  • 50 %
  • 12.61
  • 2.305
  • 82.3
  • 79.5
  • 1,781
  • 0.0
  • 7.50
  • 75 %
  • 16.75
  • 3.385
  • 83.6
  • 87.9
  • 1,771
  • 0.0
  • 11.25
  • 100 %
  • 21.70
  • 4.590
  • 81.6
  • 92.0
  • 1,758
  • 98.0
  • 15.00
  • 125 %
  • 27.54
  • 5.740
  • 80.9
  • 90.6
  • 1,744
  • 0.0
  • 18.75
  • 150 %
  • 34.35
  • 7.170
  • 77.1
  • 90.8
  • 1,728
  • 0.0
  • 22.50
