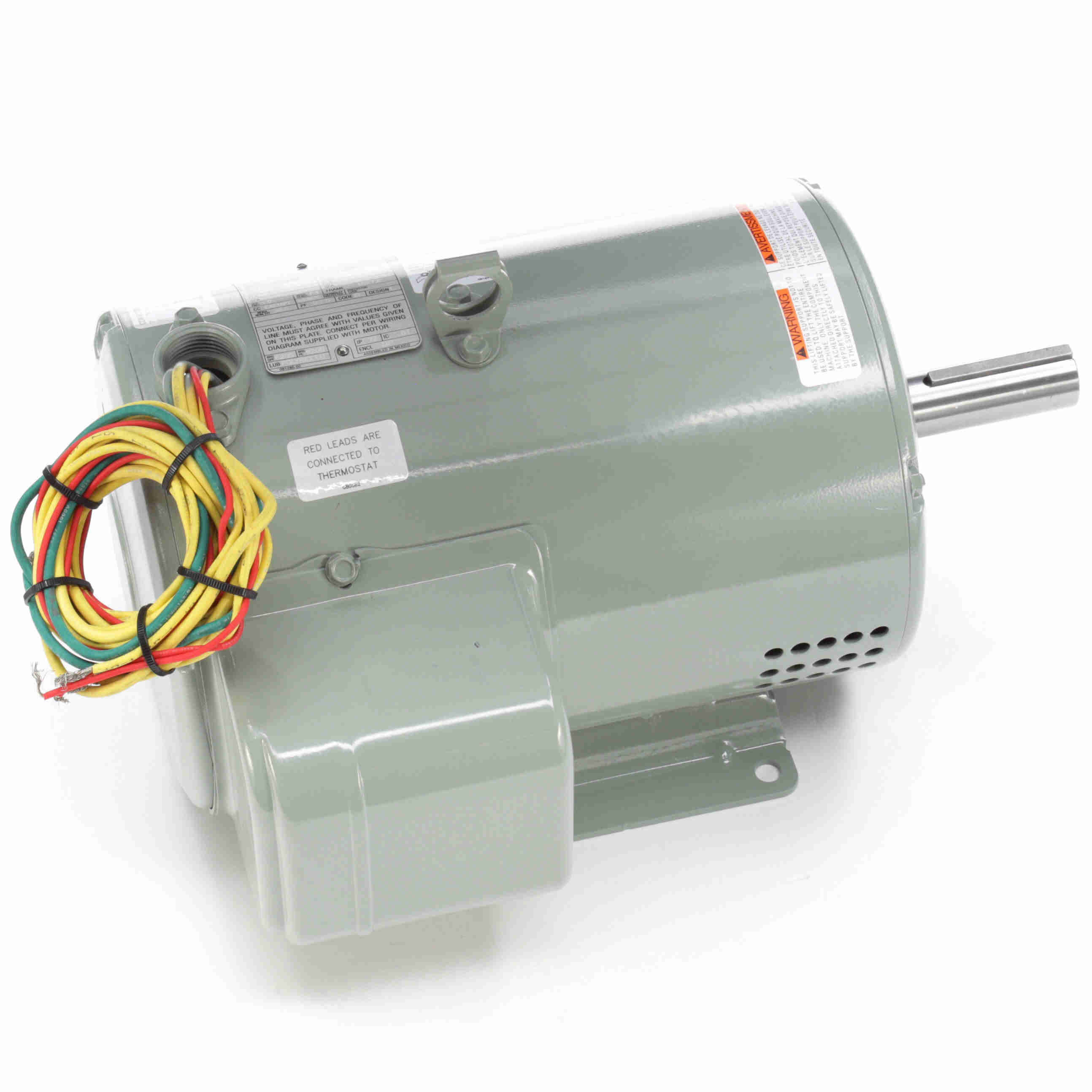

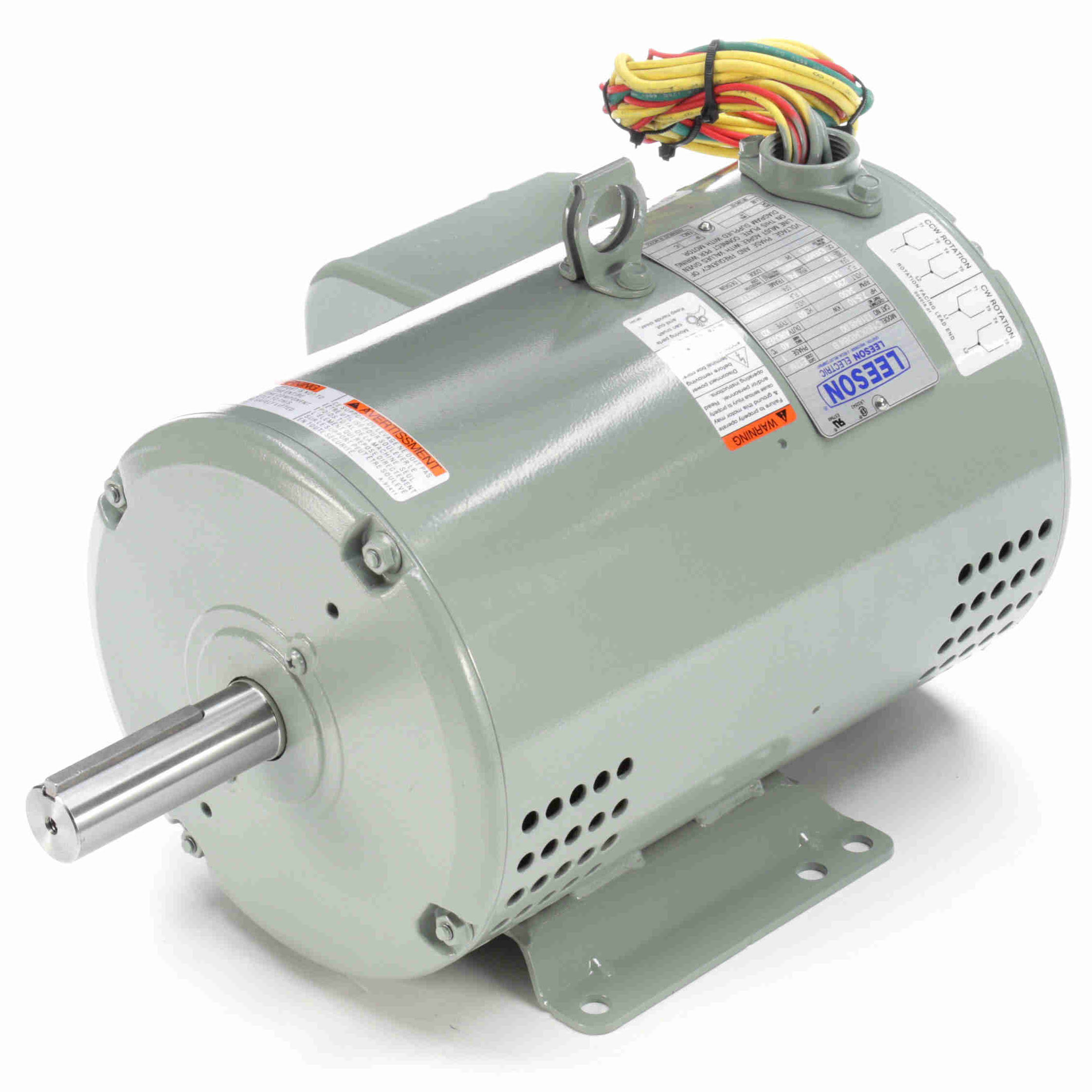

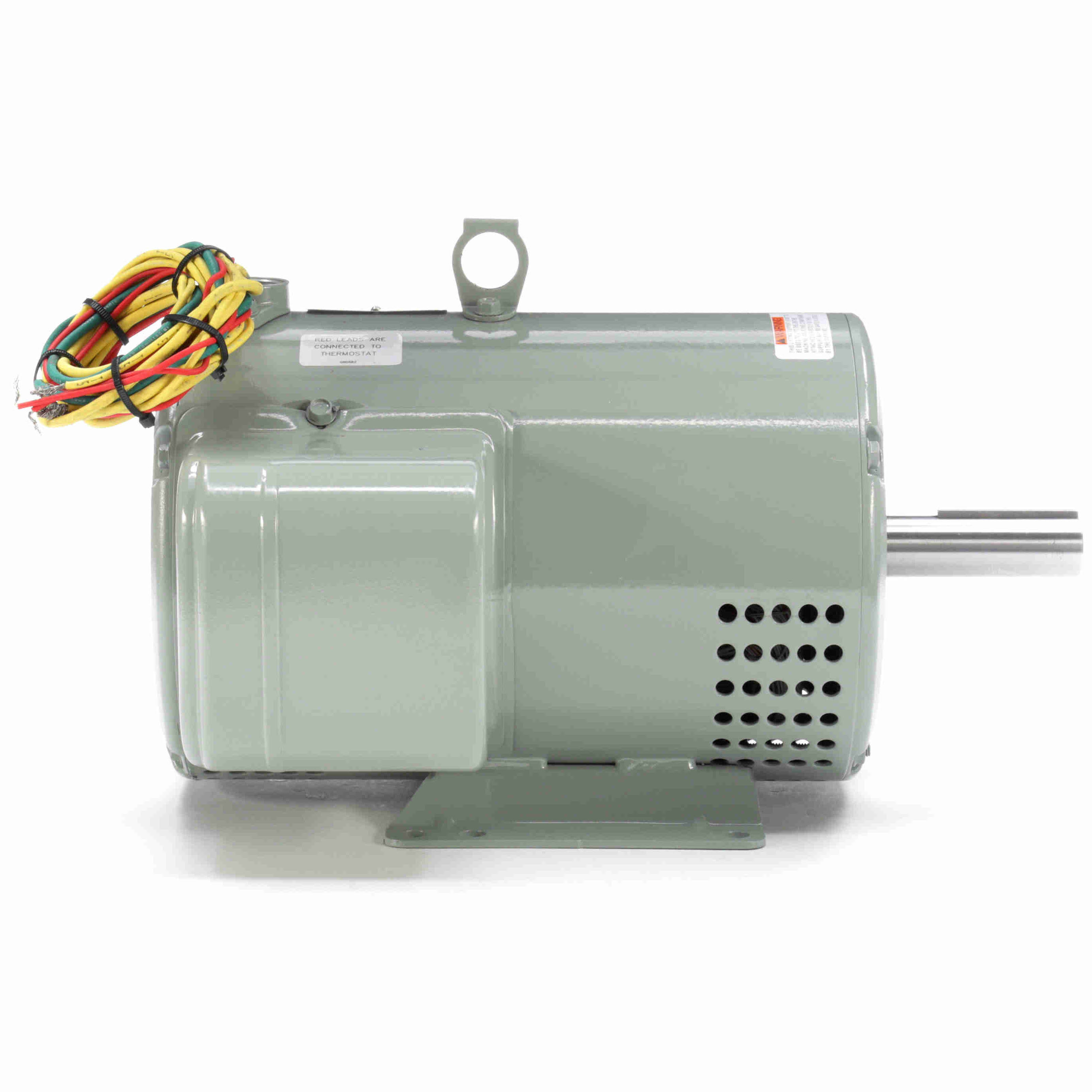

Used on Crop Dryers with air over/fan on shaft designs
Features:
• Class “F” insulation system
• Overload protected
• Keyed shaft with 1/4-20 UNC tapped hole on end
• 34” long leads
• Motor venting protected against insects and rodents
• Double sealed ball bearings
Features
- Class “F” insulation system
- Overload protected
- 34” long leads
- Motor venting protected against insects and rodents
- Double sealed ball bearings
General Specifications
| UPC: |
691720154458 |
Weight: |
98.00 LB |
| Packaged Length: |
17.94 IN |
Packaged Width: |
13.06 IN |
| Packaged Height: |
12.88 IN |
Nameplate Specifications
| Output HP: |
7.50 Hp |
Output KW: |
5.6 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
31.0 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
82.5 % |
Power Factor: |
93.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
G |
| Frame: |
182TZ |
Enclosure: |
Drip Proof Air Over |
| Thermal Protection: |
Thermostats 140 deg. C (N/C) |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6206 |
Opp Drive End Bearing Size: |
6205 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
| Number of Speeds: |
1 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
.214 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
16.44 in |
| Frame Length: |
11.50 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
3.5 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (LB-FT) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
130.00 |
419.0 |
30.00 |
269.0 |
3,100 |
0.00 |
0.0 |
7.50 |
| Pull-Up |
233.00 |
752.0 |
24.20 |
217.0 |
30 |
0.00 |
0.0 |
7.50 |
| Locked-Rotor |
235.00 |
758.0 |
22.00 |
195.0 |
0 |
0.00 |
0.0 |
7.50 |
| Full Load |
31.00 |
100.0 |
11.17 |
100.0 |
0 |
0.00 |
0.0 |
7.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
150 % |
| Current (Amps) |
7.60 |
11.20 |
17.10 |
23.60 |
31.00 |
35.40 |
38.60 |
47.10 |
| Rated Output (KW) |
0.62 |
2.11 |
3.62 |
5.15 |
6.78 |
7.85 |
8.60 |
10.48 |
| Efficiency (%) |
0.0 |
67.5 |
78.3 |
82.0 |
82.5 |
81.9 |
81.1 |
79.8 |
| Power Factor (%) |
35.6 |
81.8 |
91.9 |
92.5 |
93.5 |
97.0 |
96.9 |
96.7 |
| Speed (RPM) |
3,598 |
3,580 |
3,561 |
3,541 |
3,515 |
3,505 |
3,496 |
3,467 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
53.0 |
70.0 |
0.0 |
0.0 |
| Torque (LB-FT) |
0.00 |
2.80 |
5.60 |
8.40 |
11.17 |
12.92 |
14.05 |
16.98 |
