/Products/Electric Motors/Single Phase/Leeson/Pressure Washer/131857.00 Leeson 3HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: 131857.00

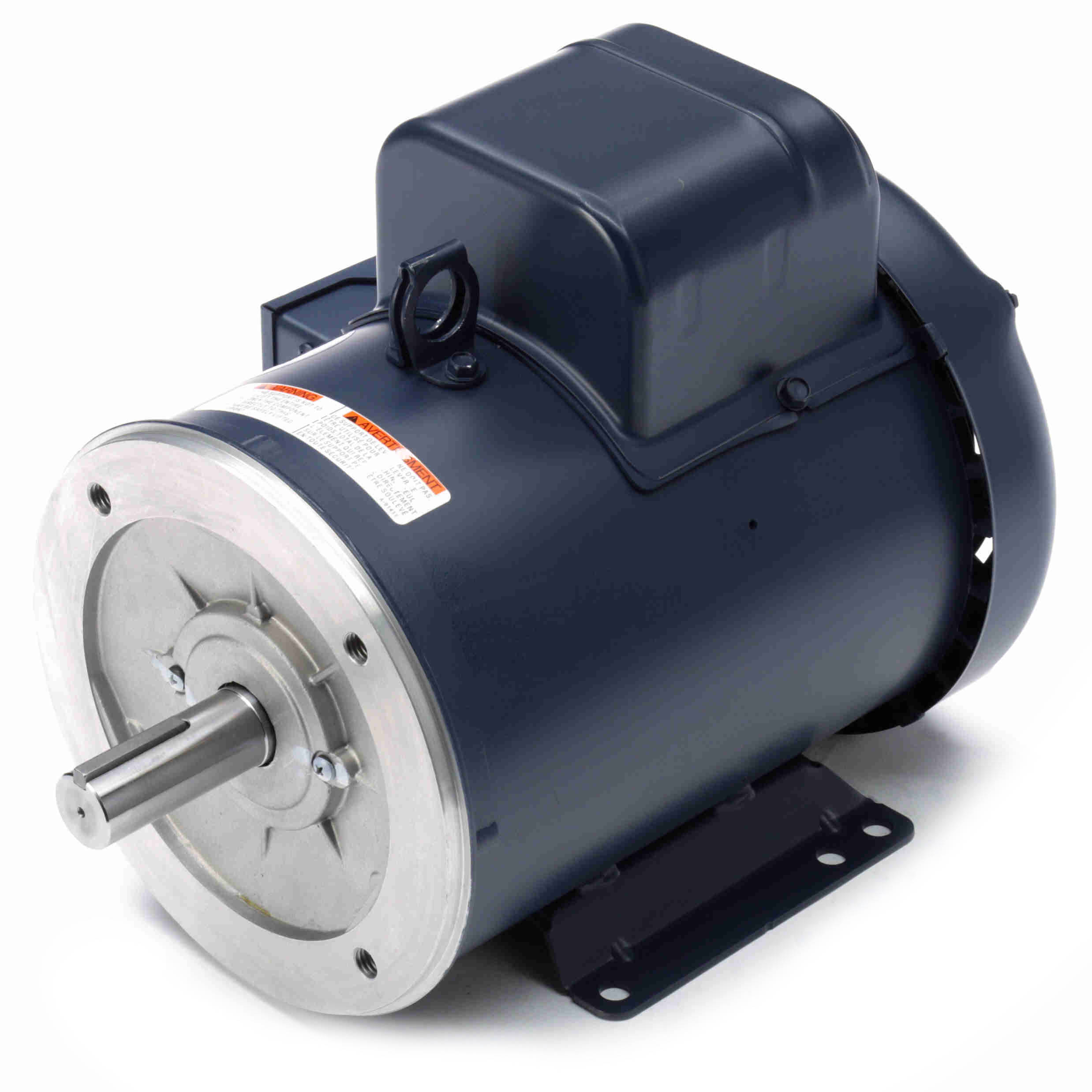

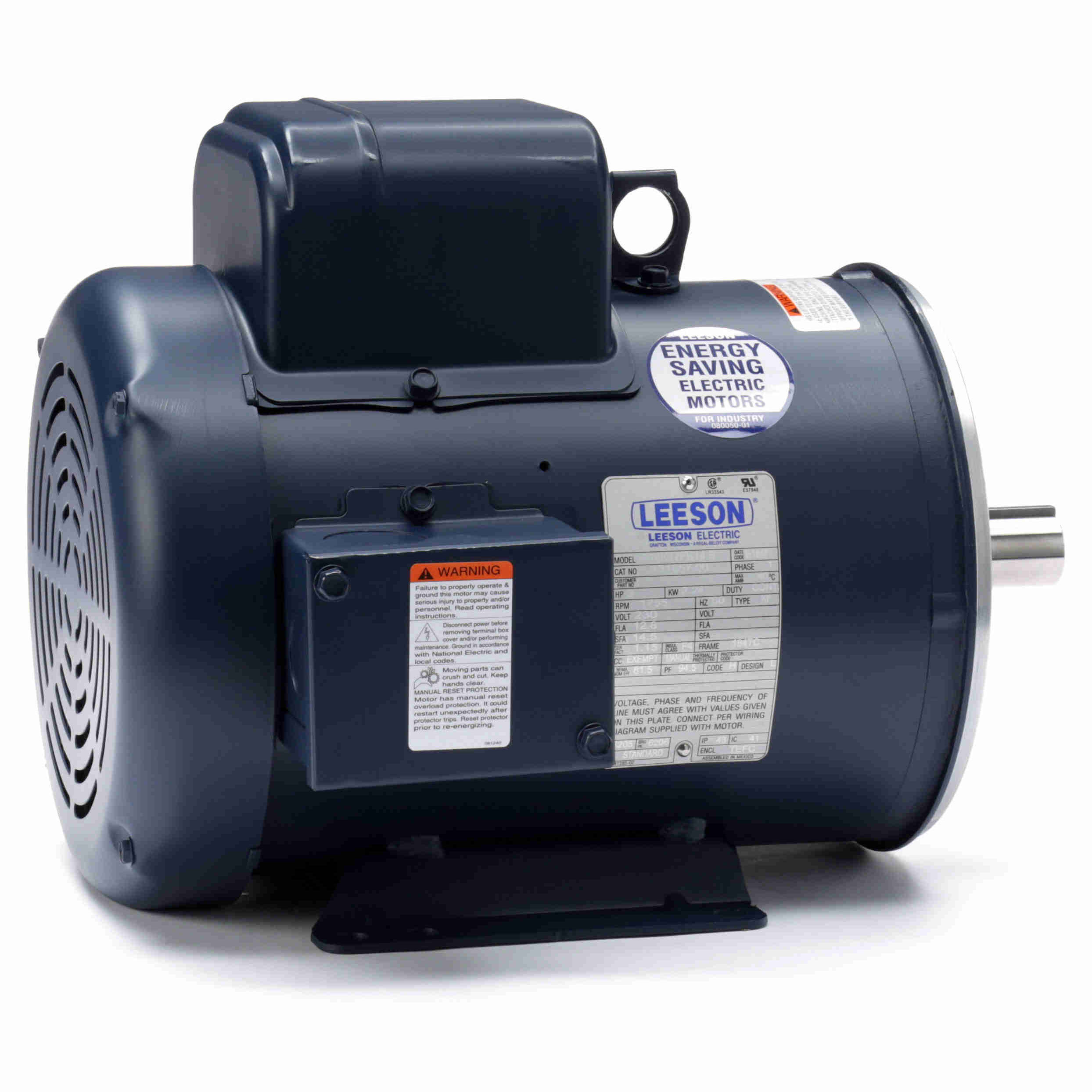

131857.00 Leeson 3HP Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131857.00

Selected accessories will also be added to cart
$895.17 / Each
Quantity:
P14K17FK14B, 184TC Frame, 208-230VAC Single Phase 60Hz, TEFC, C-Face with Base, Rolled Steel, 1-1/8" Keyed Shaft
Features
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • Capacitor start / capacitor run designs to reduce amp draw
  • Manual reset overload protection
  • High service factor
General Specifications
Model : P14K17FK14 B Catalog No : 131857.00
Part Description : 3HP..1750RPM.184.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID.PRESSURE WASHER.184TBFR7749AP Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No
Nameplate Specifications
Output HP : 3 Hp Output KW : 2.24 kW
Frequency : 60 Hz Voltage : 230 V
Current : 12.8 A Speed : 1755 rpm
Service Factor : 1.15 Phase : 1
Efficiency : 81.5 % Duty : CONTINUOUS
Insulation Class : F Design Code : L
KVA Code : H Frame : 184TC
Enclosure : TEFC Overload Protector : MANUAL
Ambient Temperature : 40 °C Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205 UL : Recognized
CSA : Y CE : N
IP Code : 43
Technical Specifications
Electrical Type : CAP START CAP RUN Starting Method : ACROSS THE LINE
Poles : 4 Rotation : SELECTIVE CCW
Mounting : RIGID Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL Shaft Type : T
Overall Length : 14.97 in Frame Length : 9.5 in
Shaft Diameter : 1.13 in Shaft Extension : 2.75 in
Assembly/Box Mounting : F1 ONLY UPC : 691720154540
Weight : 107.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 90.00 734.0 23.50 263.0 0 20.40 0.0 3.00
Break-Down 48.00 375.0 23.50 263.0 1,560 10.40 0.0 3.00
Full Load 12.80 100.0 8.94 100.0 1,755 2.75 0.0 3.00
Pull-Up 68.00 531.0 17.60 197.0 1,240 12.10 0.0 3.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.80
  • 0.380
  • 0.0
  • 43.5
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 5.10
  • 0.920
  • 60.6
  • 78.4
  • 1,784
  • 0.0
  • 2.20
  • 50 %
  • 7.30
  • 1.495
  • 74.5
  • 89.0
  • 1,773
  • 0.0
  • 4.42
  • 75 %
  • 9.90
  • 2.100
  • 79.9
  • 92.2
  • 1,762
  • 0.0
  • 6.70
  • 100 %
  • 12.80
  • 2.730
  • 81.5
  • 94.5
  • 1,755
  • 65.0
  • 8.94
  • 115 %
  • 14.50
  • 3.160
  • 80.9
  • 94.8
  • 1,740
  • 78.0
  • 10.34
  • 125 %
  • 15.80
  • 3.450
  • 80.5
  • 94.9
  • 1,737
  • 0.0
  • 11.25
  • 150 %
  • 19.50
  • 4.250
  • 78.2
  • 94.8
  • 1,721
  • 0.0
  • 13.60
