/Products/Electric Motors/3 Phase/Leeson/Feather Picker/132246.00 Leeson 2HP Ag-Duty Feather Picker Electric Motor, 1200RPM
Click Image to Expand

Product ID: 132246.00

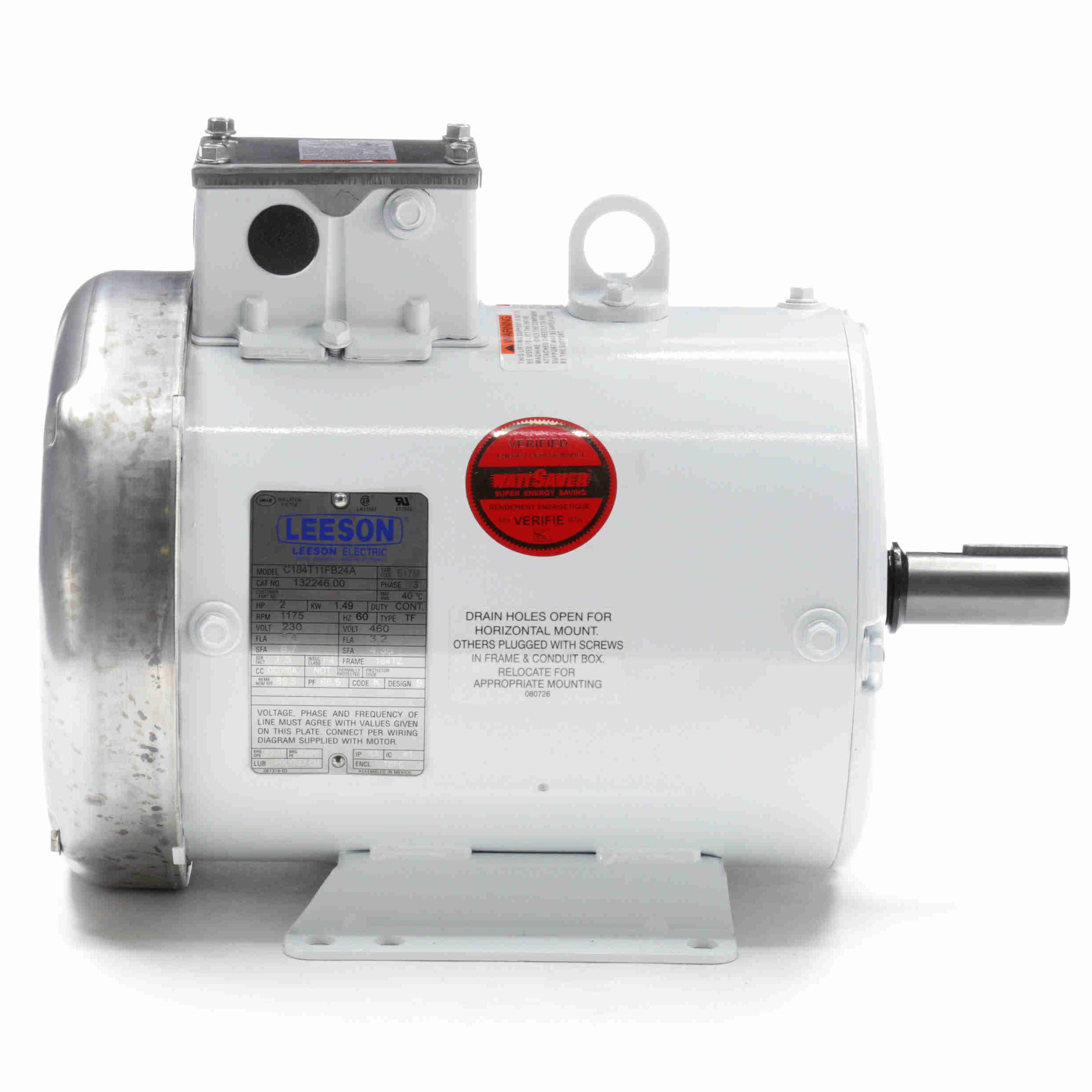

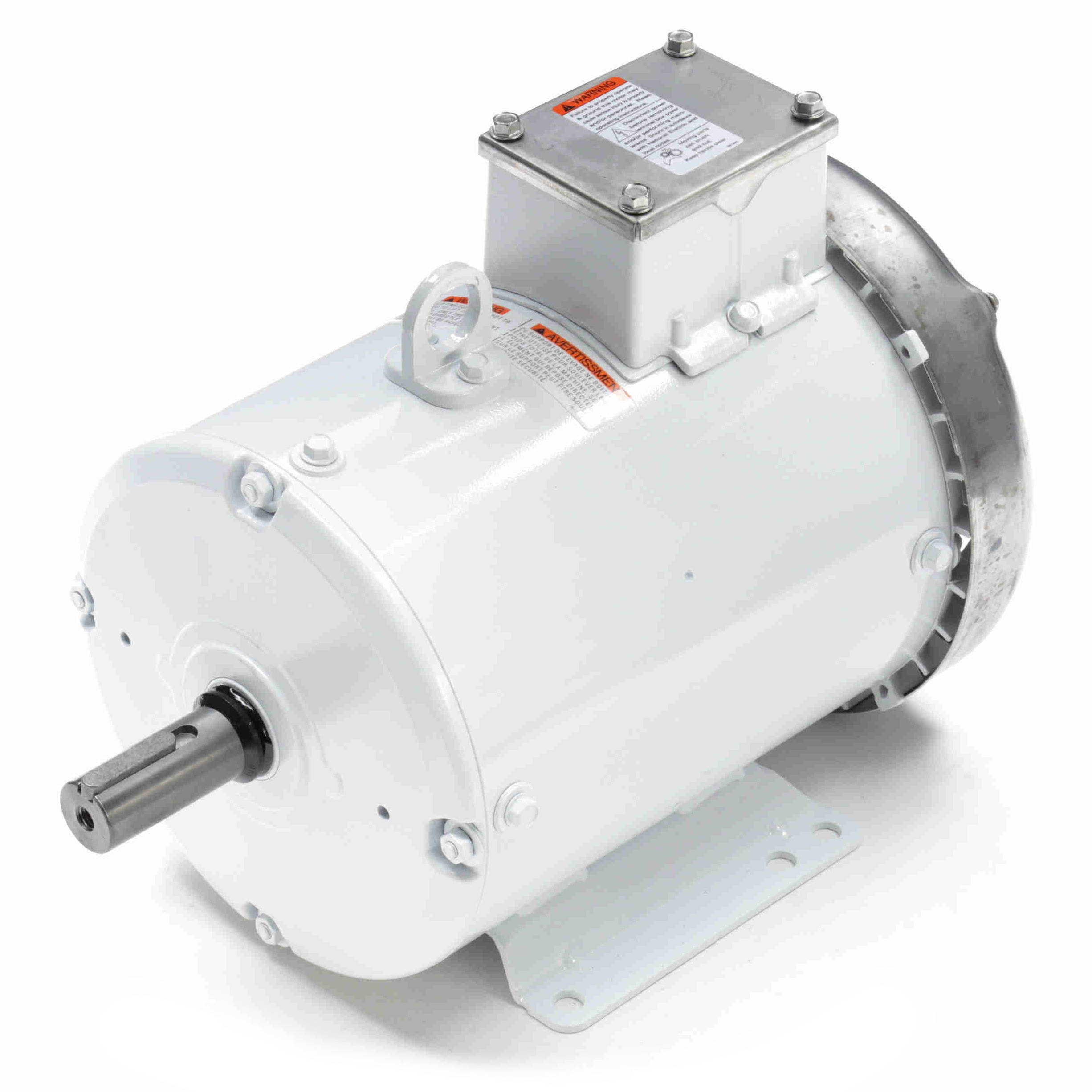

132246.00 Leeson 2HP Ag-Duty Feather Picker Electric Motor, 1200RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C184T11FB24

Selected accessories will also be added to cart
$969.08 / Each
Quantity:
TEFC, 184TZ Frame, 208-230/460VAC 3-Phase 60Hz, C184T11FB24A, Rigid Base, Rolled Steel, 1-1/8" Keyed Shaft

Features

Features
  • Phosphatized or stainless steel shafts drilled and tapped metric shafts
  • Epoxy painted for corrosion protection
  • USDA approved food-safe paint
  • Extra high breakdown torques

General Specifications

General Specifications
Model :C184T11FB24A Catalog No :132246.00
Part Description :..2HP..1170RPM.184TZ.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.5SF.RIGID.C184T11FB24A............. Category :Feather Picker
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :2 HP Output KW :1.5 kW
Frequency :60 Hz Voltage :230/460 V
Current :6.4/3.2 A Speed :1175 RPM
Service Factor :1.5 Phase :3
Efficiency :88.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :K Frame :184TZ
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :6 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :IEC
Overall Length :14.96 in Frame Length :9.50 in
Shaft Diameter :1.125 in Shaft Extension :2.81 in
Assembly/Box Mounting :F1/F2 CAPABLE UPC :691720257500
Weight :85.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Full Load3.20100.09.00100.01,1750.000.02.00
Break-Down10.10316.030.20336.01,0000.000.02.00
Locked-Rotor20.50641.016.80187.000.000.02.00
Pull-Up20.10628.016.50183.0210.000.02.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.94
  • 0.094
  • 0.0
  • 6.1
  • 1,198
  • 0.0
  • 0.00
  • 25 %
  • 2.05
  • 0.475
  • 80.3
  • 29.1
  • 1,194
  • 0.0
  • 2.25
  • 50 %
  • 2.32
  • 0.872
  • 87.1
  • 47.2
  • 1,188
  • 0.0
  • 4.50
  • 75 %
  • 2.70
  • 1.267
  • 88.0
  • 58.9
  • 1,182
  • 0.0
  • 6.64
  • 100 %
  • 3.20
  • 1.695
  • 88.5
  • 66.5
  • 1,175
  • 32.0
  • 9.00
  • 115 %
  • 3.50
  • 1.945
  • 88.5
  • 69.8
  • 1,171
  • 0.0
  • 10.35
  • 125 %
  • 3.72
  • 2.120
  • 87.9
  • 71.5
  • 1,168
  • 0.0
  • 11.23
  • 150 %
  • 4.35
  • 2.576
  • 86.7
  • 74.3
  • 1,159
  • 0.0
  • 13.57
