/Products/Electric Motors/3 Phase/Leeson/Washguard - TENV/TEFC/140822.00 Leeson 7.5HP Washguard Electric Motor, 1800 RPM
Click Image to Expand

Product ID: 140822.00

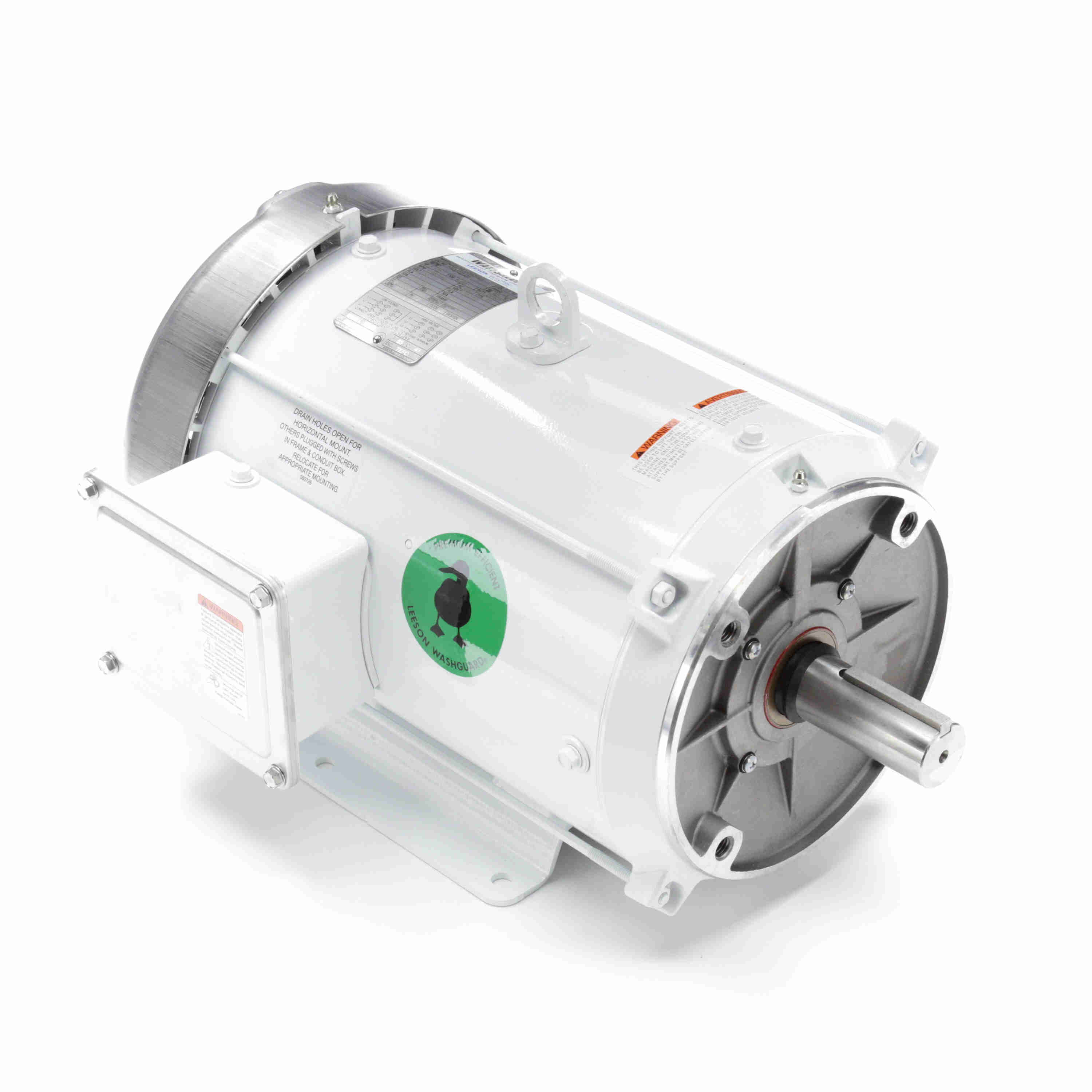

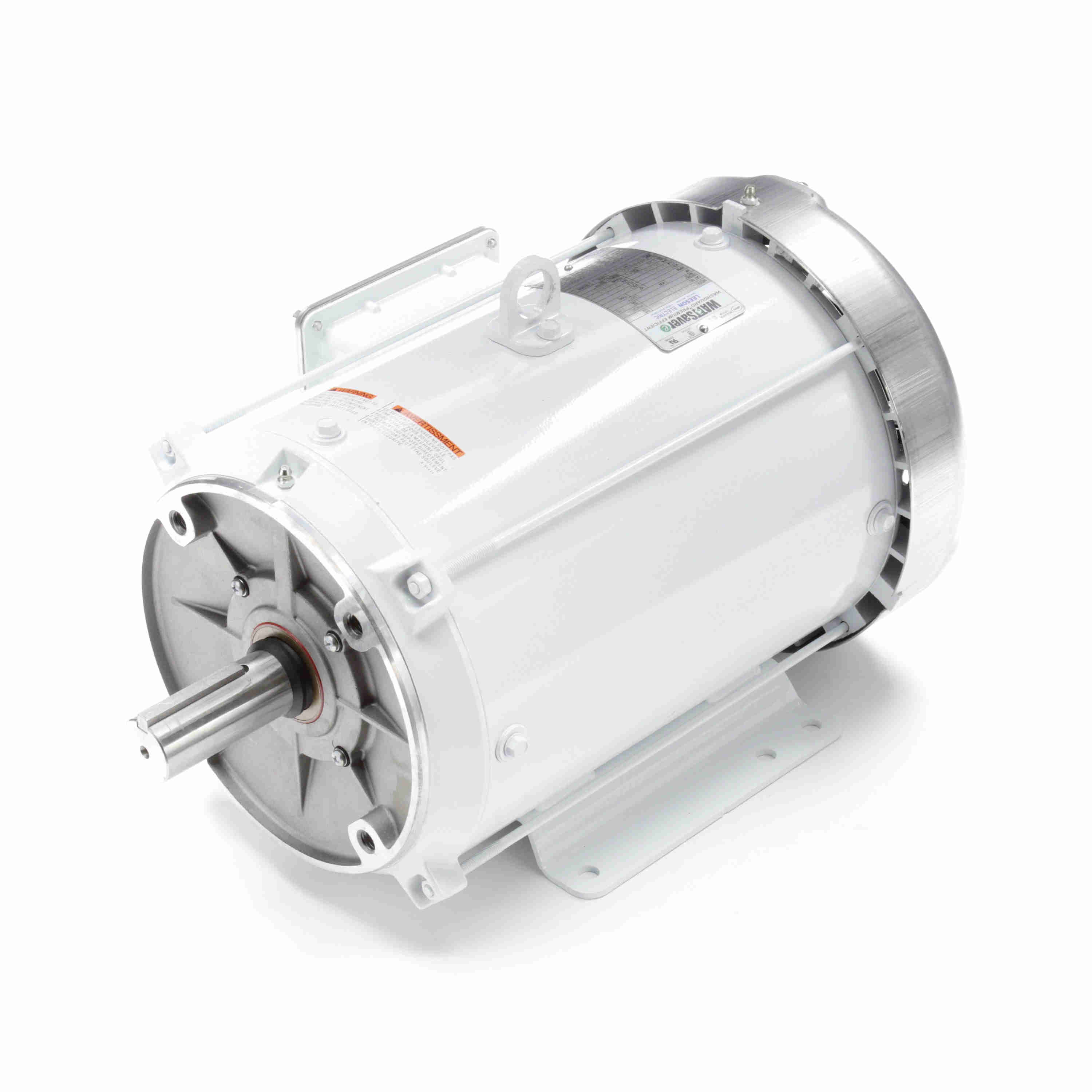

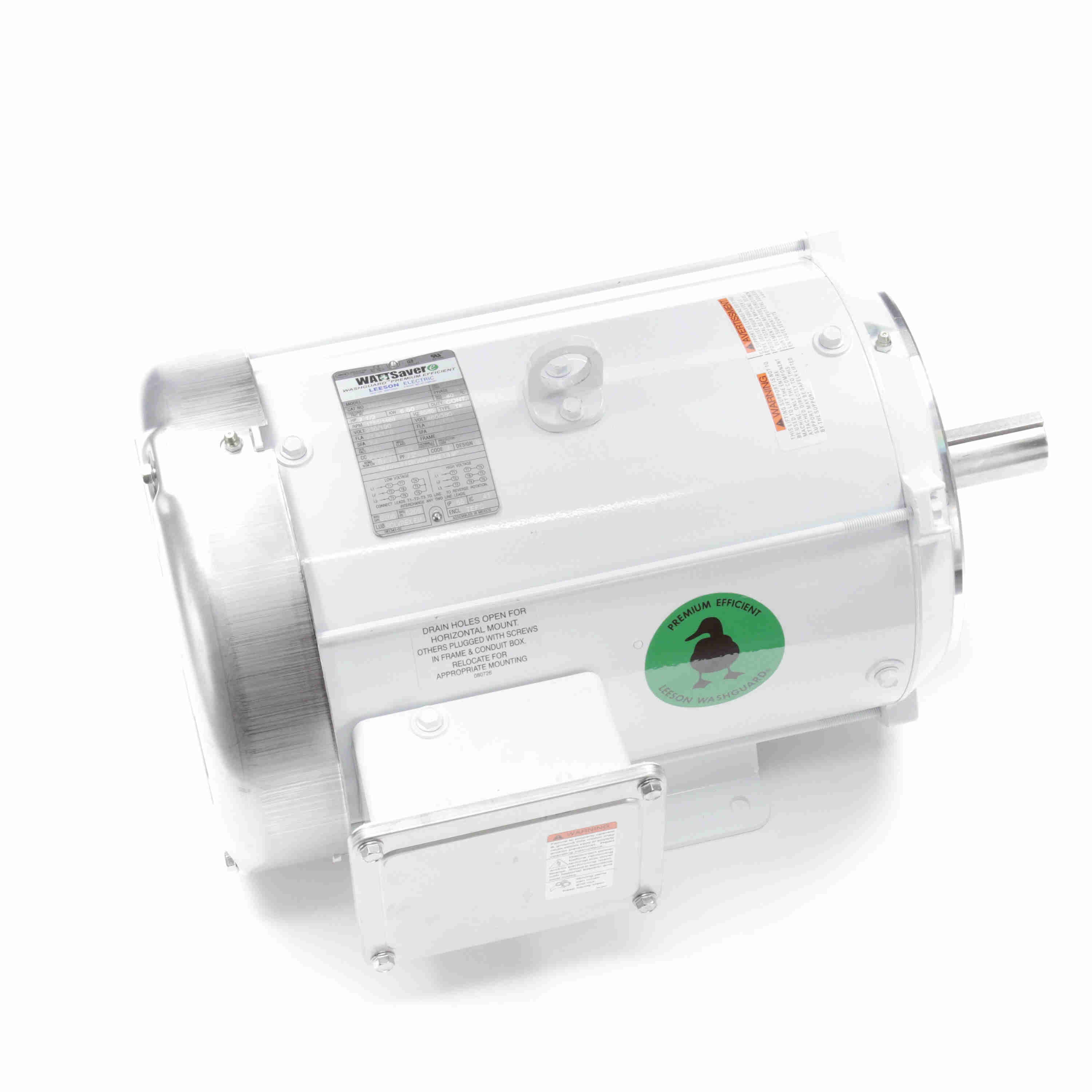

140822.00 Leeson 7.5HP Washguard Electric Motor, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 140822.00

Selected accessories will also be added to cart
$1,629.97 / Each
Quantity:
TEFC, 213TC Frame, 208-230/460VAC 60Hz 3-Phase, C Face with Base, C213T17WK9A, Washdown Duty
Features
  • USDA-approved epoxy painted motors
  • NEMA motors
  • AC washdown
  • Rigid base and C face mount types
  • BISSC approved designs; Double lip contact seals and v-ring seals used for shaft seals
  • 3-year warranty on encapsulated and premium efficient models
  • UL recognized and CSA certified
  • Washdown brakemotors and pump motors available
  • UL recognized and CSA certified
General Specifications
Model :C213T17WK9A Catalog No :140822.00
Part Description :..7 1/2HP..1765RPM.213.TEFC.230/460V.3PH.60HZ.CONT.40C.1.25SF.RIGID C.C213T17WK9A.....WASHGUARD.NOT....5.6kW... Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :7.50 Hp Output KW :5.6 kW
Frequency :60 Hz Voltage :230/460 V
Current :22.4-21.6/10.8 A Speed :1765 rpm
Service Factor :1.25 Phase :3
Efficiency :91.7 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :J Frame :213TC
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6209
Opp Drive End Bearing Size :6206 UL :Recognized
CSA :Y CE :Y
IP Code :55
Technical Specifications
Electrical Type :Squirrel Cage Induction Run Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :18.71 in Frame Length :12.00 in
Shaft Diameter :1.375 in Shaft Extension :3.38 in
Assembly/Box Mounting :F1 ONLY UPC :691720000243
Weight :157.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.0043.00194.04007.50
Full Load10.8022.20100.01,7707.50
Break-Down0.0064.20289.01,6007.50
Locked-Rotor73.0050.00225.007.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 6.00
  • 0.300
  • 0.0
  • 6.2
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 6.50
  • 1.720
  • 81.5
  • 33.2
  • 1,794
  • 0.0
  • 5.50
  • 50 %
  • 7.55
  • 3.158
  • 88.4
  • 52.5
  • 1,787
  • 0.0
  • 11.00
  • 75 %
  • 9.00
  • 4.650
  • 90.4
  • 64.8
  • 1,780
  • 0.0
  • 16.62
  • 100 %
  • 10.64
  • 6.110
  • 91.8
  • 72.1
  • 1,770
  • 43.0
  • 22.30
  • 125 %
  • 12.65
  • 7.700
  • 90.9
  • 76.4
  • 1,765
  • 0.0
  • 27.90
  • 150 %
  • 15.00
  • 9.270
  • 90.6
  • 77.6
  • 1,756
  • 0.0
  • 33.65
