/Products/Pulleys & Sheaves/BK-H Single Groove/BK62H AMEC 5.95" "H" Style BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK62H

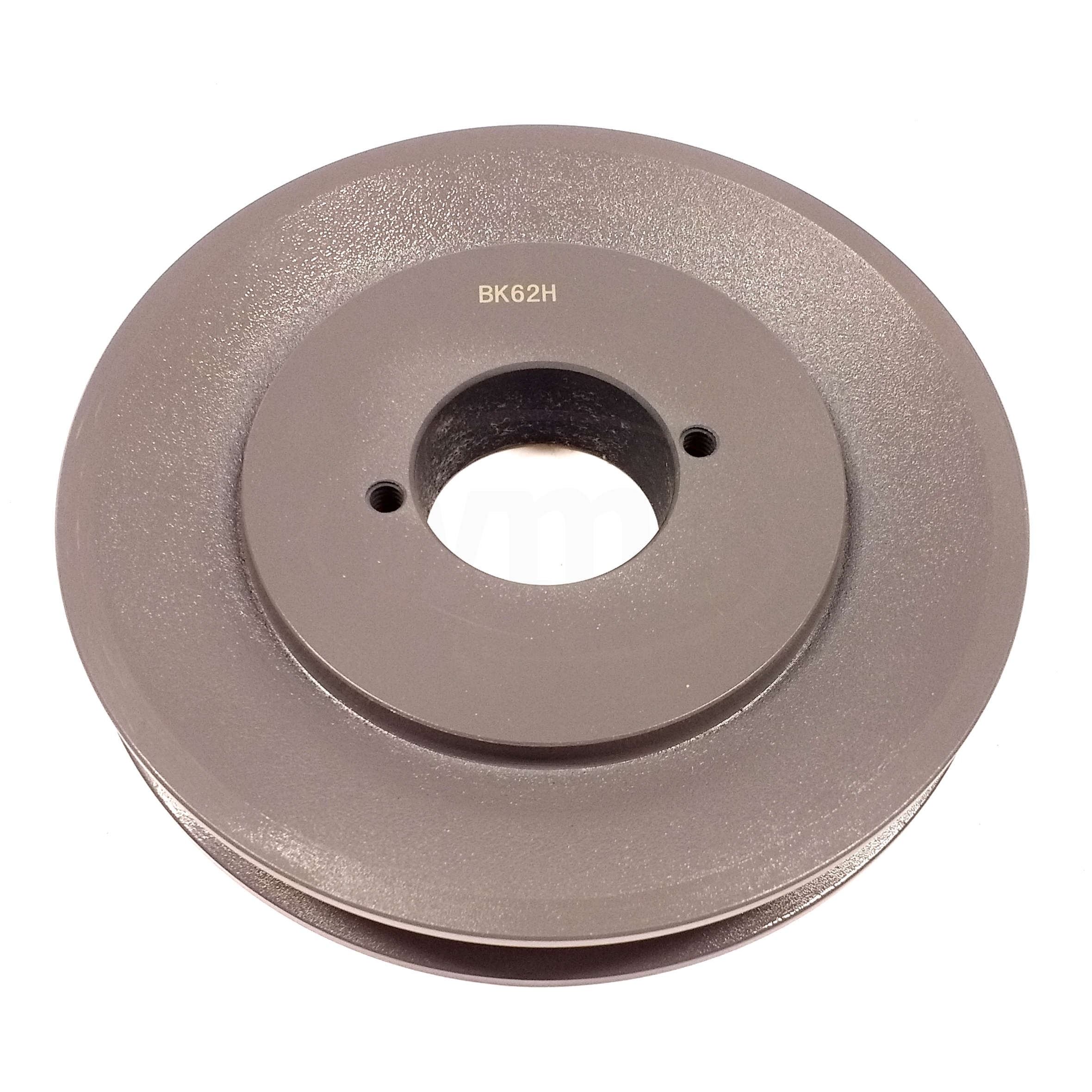

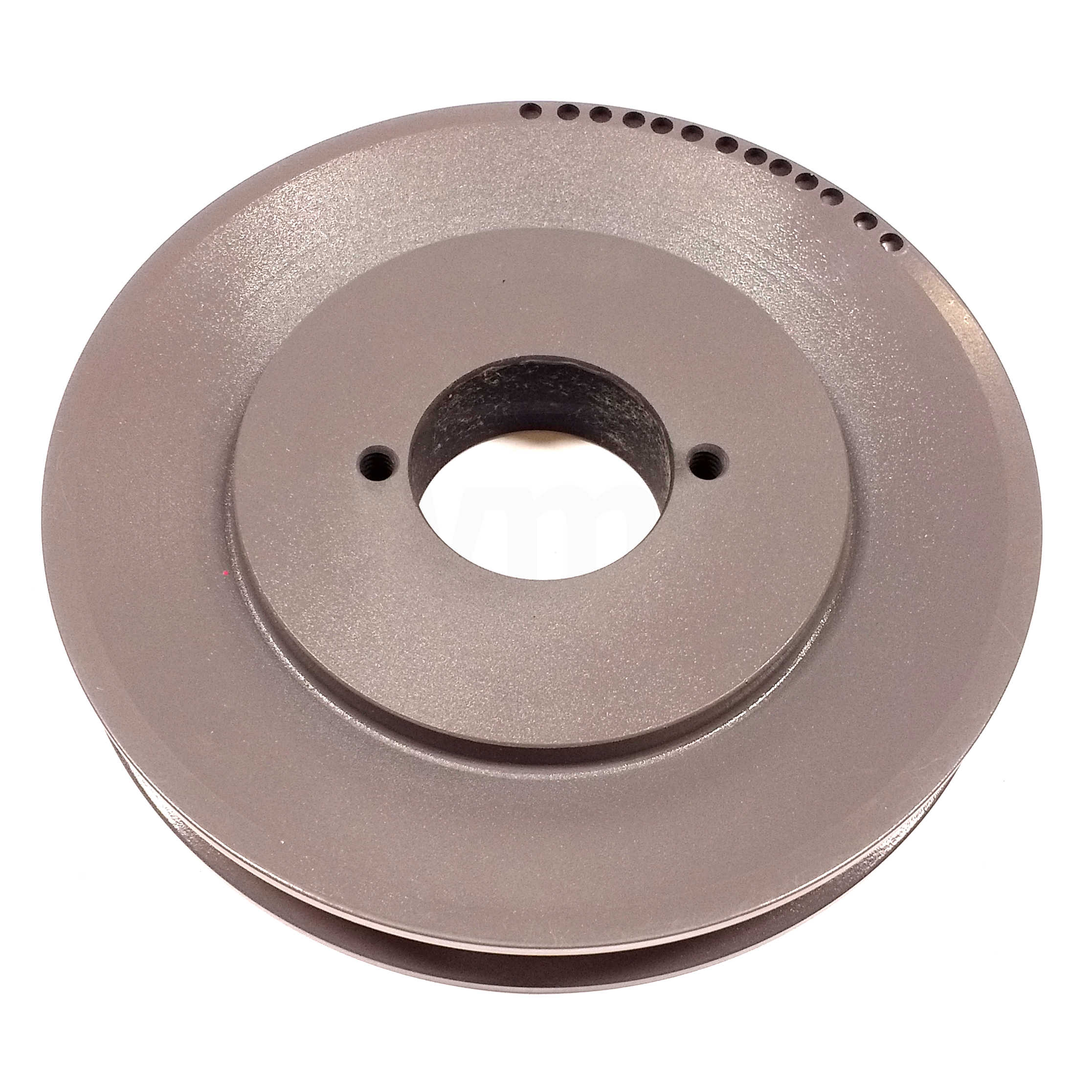

BK62H AMEC 5.95" "H" Style BK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: BK62H

Available Stock: 2
Selected accessories will also be added to cart
$25.74 / Each
Quantity:
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron

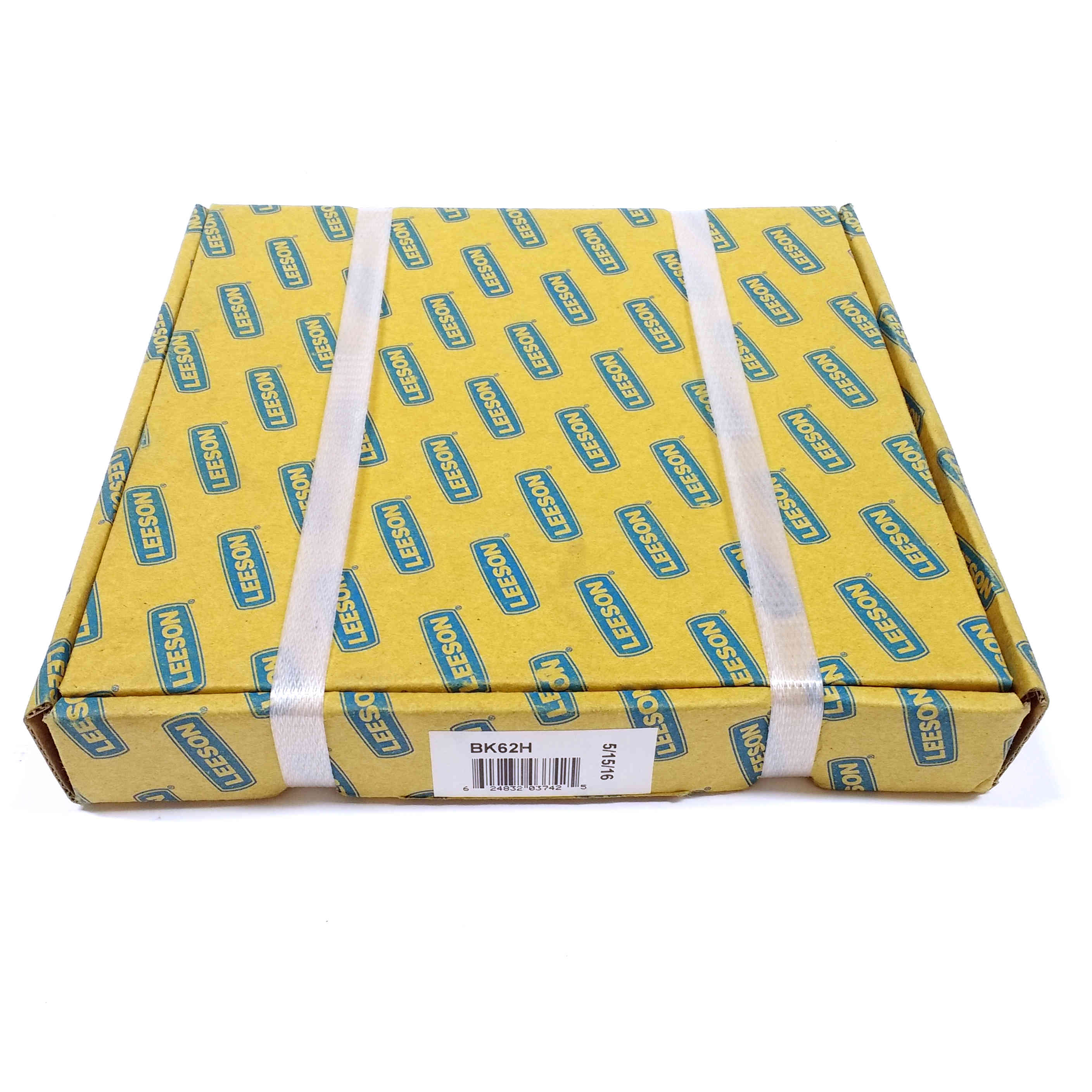

• Individually packaged
Brand AMEC
Leeson
Part Number BK62H

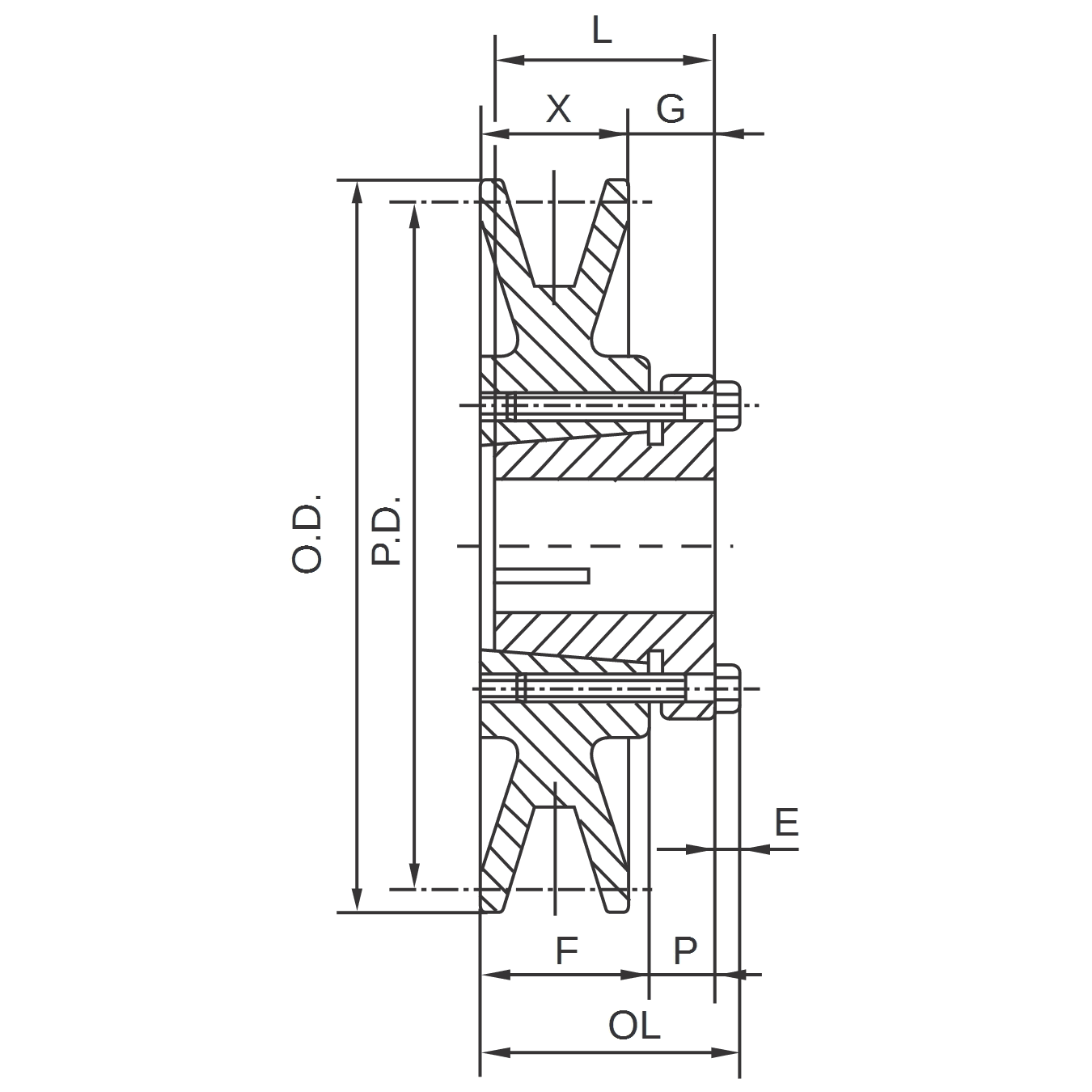

Outside Diameter 5.95"
Pulley Diameter "A" 5.20"
Pulley Diameter "3L" 5.60"
Type 2
Dimension "OL" 1-1/2"
Dimension "F" 7/8"
Dimension "L" 1-1/4"
Dimension "P" 7/16"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 2.6 lbs
UPC Leeson: 624832037425
