/Products/Pulleys & Sheaves/BK-H Single Groove/BK65H 6.25" "H" Style BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK65H

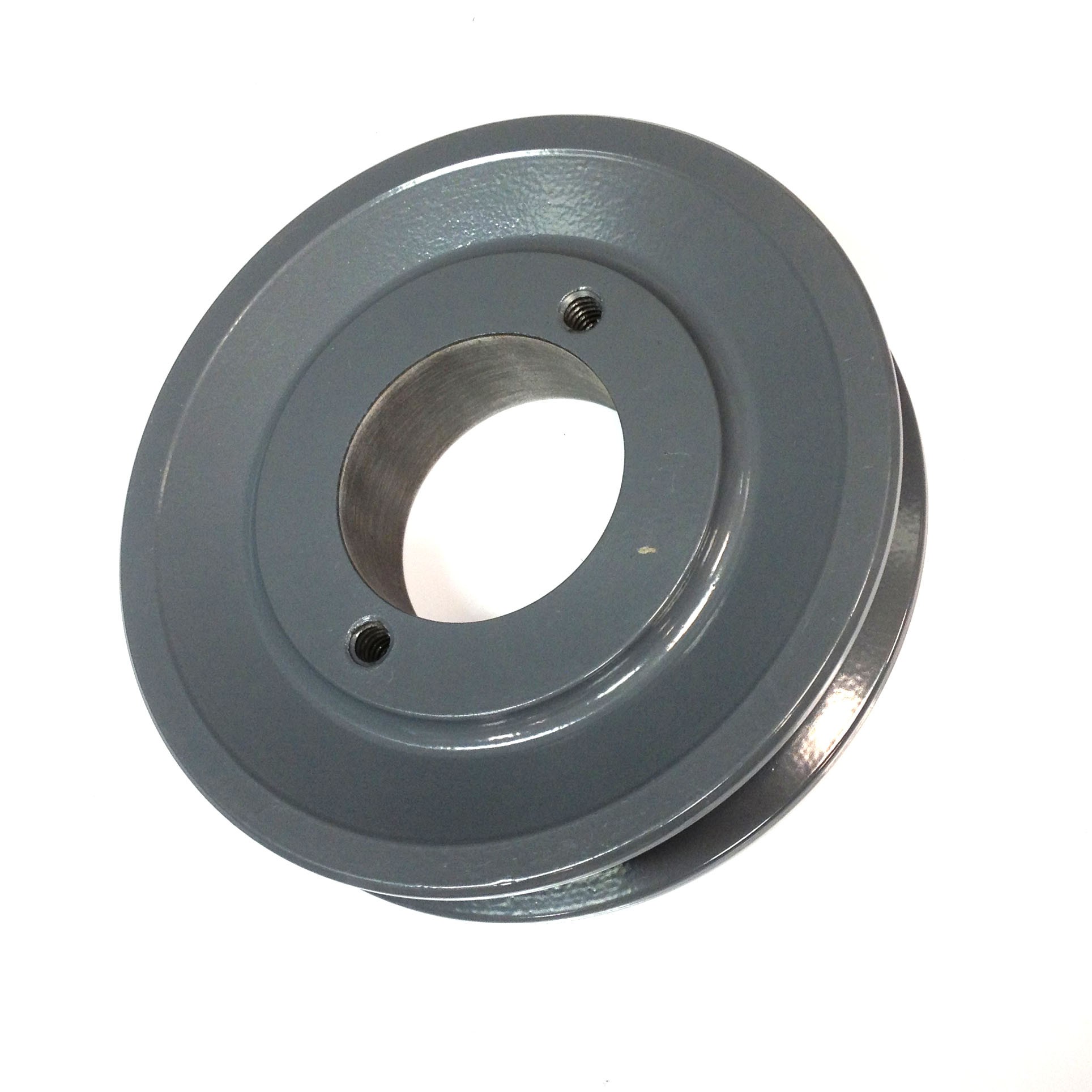

BK65H 6.25" "H" Style BK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: BK65H

Available Stock: 1
Selected accessories will also be added to cart
$28.00 / Each


• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
Brand AMEC
Part Number BK65H

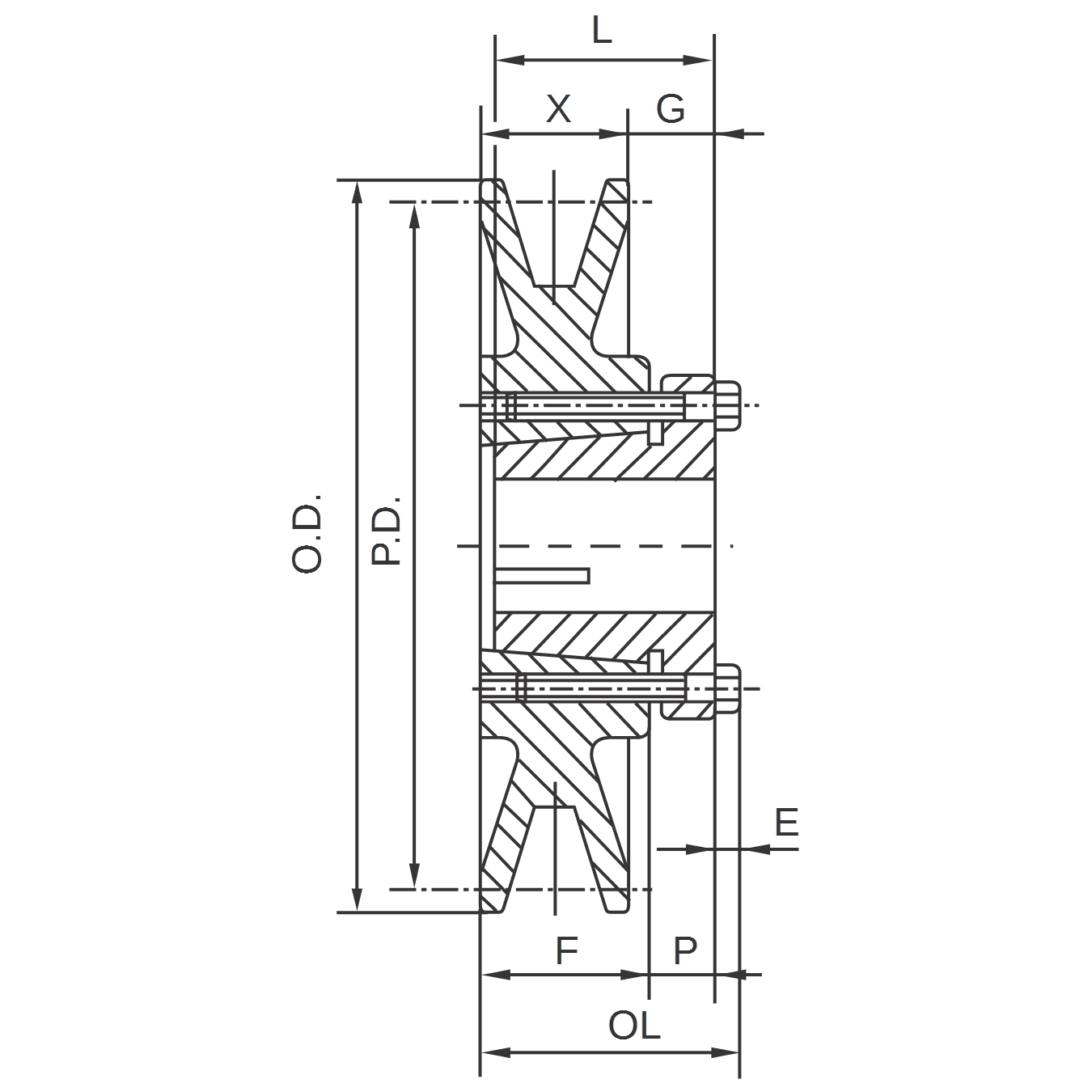

Outside Diameter 6.25"
Pulley Diameter "A" 5.50"
Pulley Diameter "3L" 5.90"
Type 2
Dimension "OL" 1-1/2"
Dimension "F" 7/8"
Dimension "L" 1-1/4"
Dimension "P" 7/16"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 2.8 lbs
