/Products/Electric Motors/3 Phase/Marathon/Globetrotter General Purpose/ODP, Rigid Base/GT0019A Marathon 10HP Globetrotter Electric Motor, 1800RPM
Click Image to Expand

Product ID: GT0019A

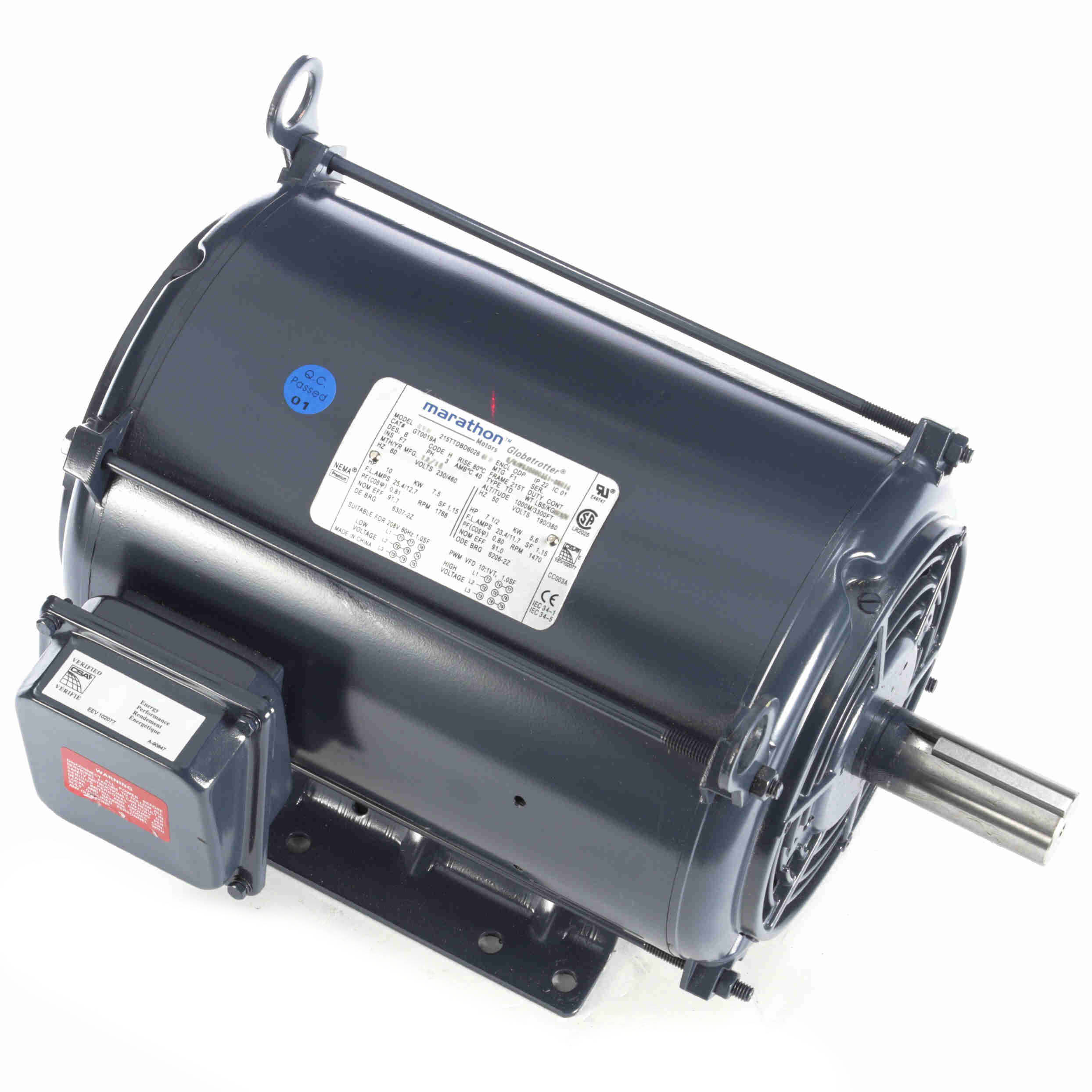

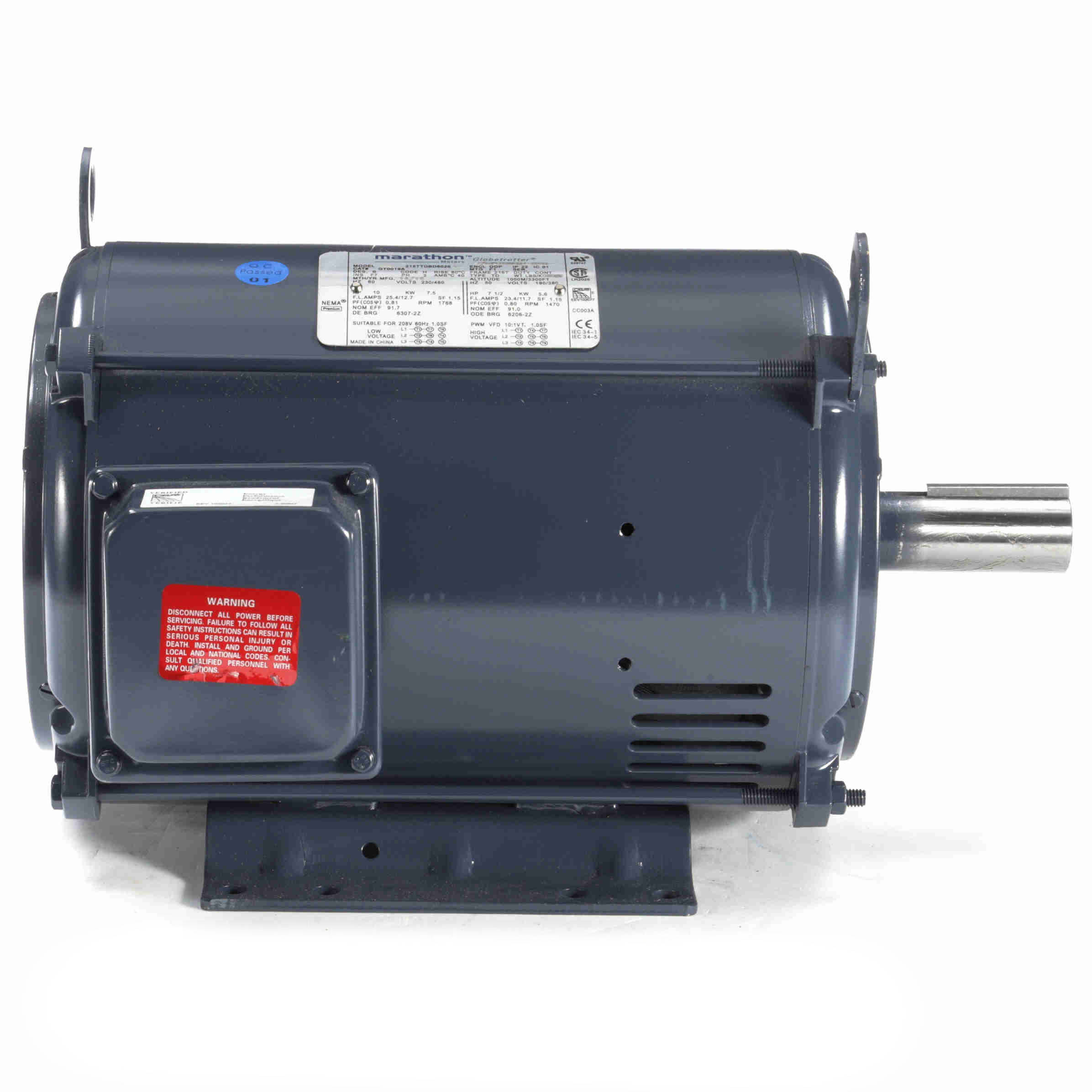

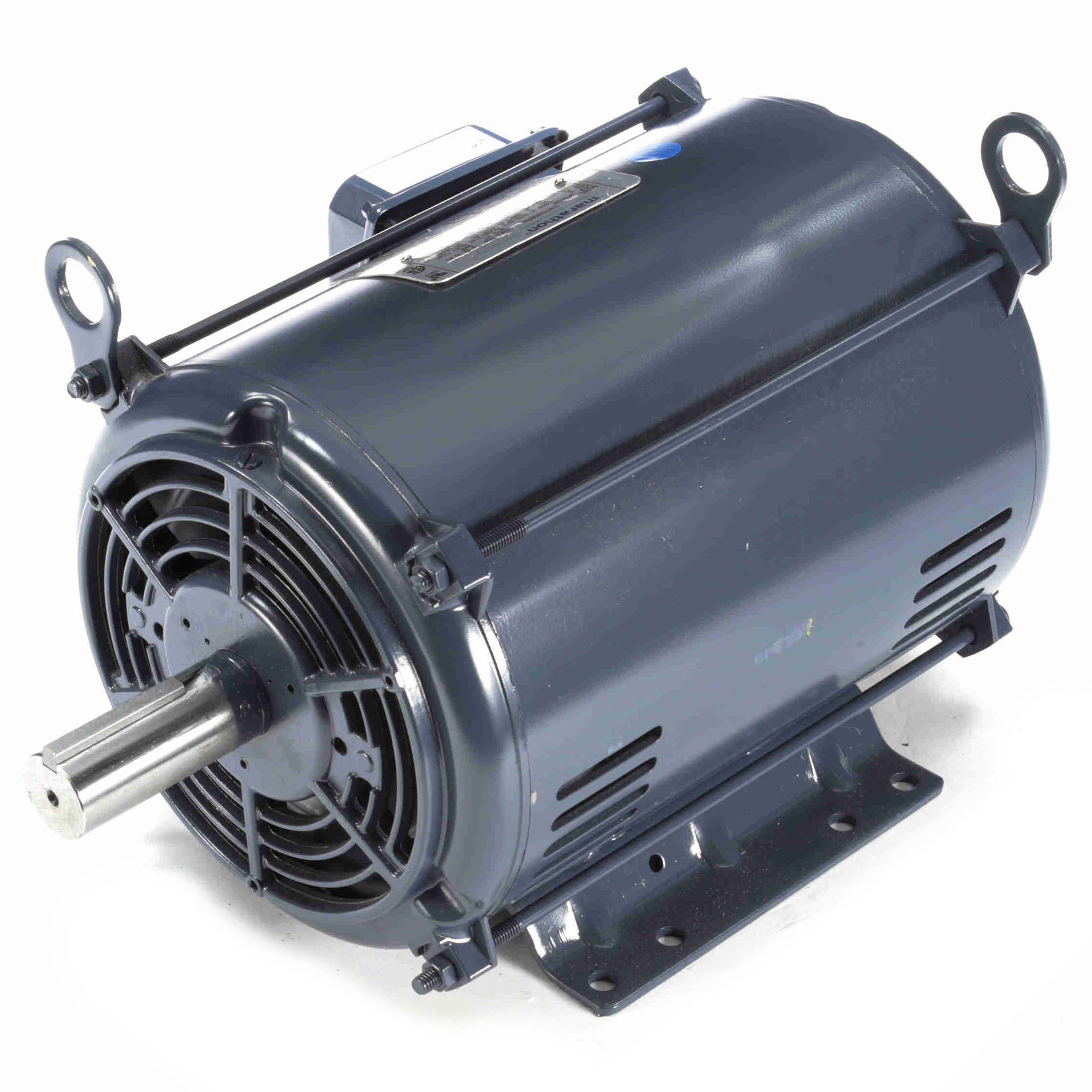

GT0019A Marathon 10HP Globetrotter Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: GT0019A

Selected accessories will also be added to cart
$829.97 / Each
Quantity:
ODP, 215T Frame, 230/460VAC 60Hz 3-Phase, 215TTDBD6026, Rigid Base, Rolled Steel, 1-3/8" Keyed Shaft

Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • 182T-365T models steel frame, 404T-449T models cast iron frame
  • Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.

General Specifications

UPC: 722856060259 Weight: 144.00 LB
Packaged Length: 20.52 IN Packaged Width: 15.18 IN
Packaged Height: 14 IN

Nameplate Specifications

Output HP: 10 Hp Output KW: 7.5 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 25.4/12.7 A Speed: 1768 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 91.7 % Power Factor: 80.1
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: G
Frame: 215T Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6307 Opp Drive End Bearing Size: 6206
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 1.217 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 17.52 in
Shaft Diameter: 1.375 in Shaft Extension: 3.38 in
Assembly/Box Mounting: F1/F2 CAPABLE

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 73.00 575.0 52.00 175.0 900 0.00 0.0 10.00
Full Load 12.70 100.0 29.70 100.0 1,768 0.00 81.0 10.00
1/3 76.00 598.0 50.00 168.0 600 0.00 0.0 10.00
2/3 66.00 520.0 63.00 212.0 1,200 0.00 0.0 10.00
Locked-Rotor 79.00 622.0 61.00 205.0 0 0.00 45.0 10.00
No Load 5.70 45.0 0.00 0.0 1,800 0.00 5.5 10.00
Break-Down 44.00 346.0 73.00 246.0 1,578 0.00 68.0 10.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 5.70 6.30 7.90 10.10 12.70 14.50 15.70
Rated Output (KW) 0.50 2.20 4.10 6.10 8.10 9.50 10.30
Efficiency (%) 0.0 84.5 90.9 91.9 91.7 90.4 90.7
Power Factor (%) 11.0 43.8 65.1 75.8 80.1 82.2 82.3
Speed (RPM) 1,800 1,792 1,785 1,778 1,768 1,762 1,758
Temp. Rise @ FL 0.0 0.0 0.0 0.0 50.0 70.0 85.0
Torque (ft-lbs) 0.00 7.30 14.70 22.20 29.80 34.30 37.40
