/Products/Pumps/Ashland Pump/Sump Pumps/Cast Iron/SPV50 Ashland 1/2HP Cast Iron Sump Pump, 115VAC Single Phase

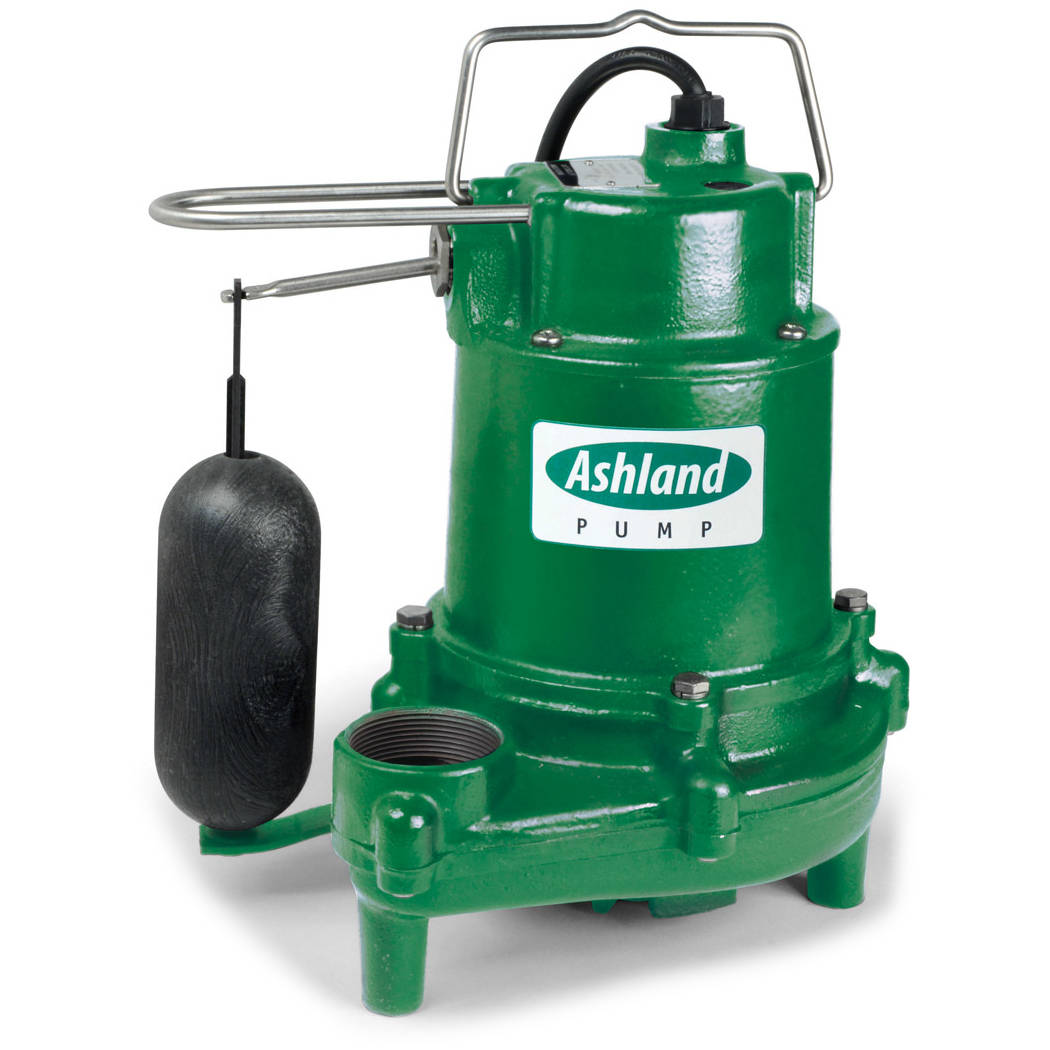

SPV50 Ashland 1/2HP Cast Iron Sump Pump, 115VAC Single Phase
Enlarge Photo

Product ID: SPV50

SPV50 Ashland 1/2HP Cast Iron Sump Pump, 115VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SPV50

Selected accessories will also be added to cart
$274.00 / Each
Quantity:
1-1/2" NPT Discharge, 1750RPM

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty PSC motor
  • Upper and lower ball bearing construction for smoother operation
  • Automatic operation

Specifications

Brand Ashland Pump
Model SPV50
Switch Type Float
HP 1/2 HP
Voltage 115VAC 60Hz Single Phase
RPM 1750 RPM
Full Load Amps 6.5 Amps
Cord Type SJTW 18/3C
Discharge Size 1-1/2" NPT
Impeller Type 6-Vane
Cast Iron
Cable Length 10'
Solids Handling 1/4"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Maximum Stator Temperature 120°C
Power Cord Type SJTW
Sensor Cord Type 18/3C
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft AISI 1045
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6200
Lower Bearing 6201 - RS
Motor Type PSC
Gen Insulation Class B
Stator Winding Class B
Service Factor 1.00

Dimensions

SPV50 Pump Dimensions

Performance Curve

SPV50 Performance Curve Graph
