Motor/Control Division

Heavy duty cast iron construction
Oil-filled continuous duty rated PSC (Single Phase) or Induction (3 Phase) motor
Semi-open cast iron impeller
2? solids handling

Brand	Ashland Pump
Model	SWF200M6-20
Switch Type	Manual
HP	2HP
Voltage	208VAC 60Hz 3 Phase
RPM	1750 RPM
NEMA Start Code	L
Full Load Amps	11.5 Amps
Cord Power Size	14AWG/4C
Cord Type	SOW
Cord O.D.	0.59"
Discharge Size	2" Flanged with 2" & 3" NPT Adapter
Impeller Type	2-Vane Semi-Open Cast Iron
Cable Length	20'
Solids Handling	2"
Maximum Liquid Temperature	104?F - Intermittent
Acceptable pH Range	6 - 8
Motor Housing	Cast Iron
Casing	Cast Iron
Impeller	Cast Iron
Motor Shaft	SS430
Hardware	SST
O-Rings	NBR
Mechanical Seal	Single Mechanical Carbon Ceramic
Upper Bearing	6203
Lower Bearing	6203
RPM	1750 RPM
Motor Type	PSC (Single Phase) Induction (3 Phase)
Gen Insulation Class	B
Stator Winding Class	B
Maximum Stator Temperature	130?C
Voltage Tolerance	+/-10%
Motor Protection	Thermally Protected
HP	2HP
Service Factor	1.00

Brand	Ashland Pump

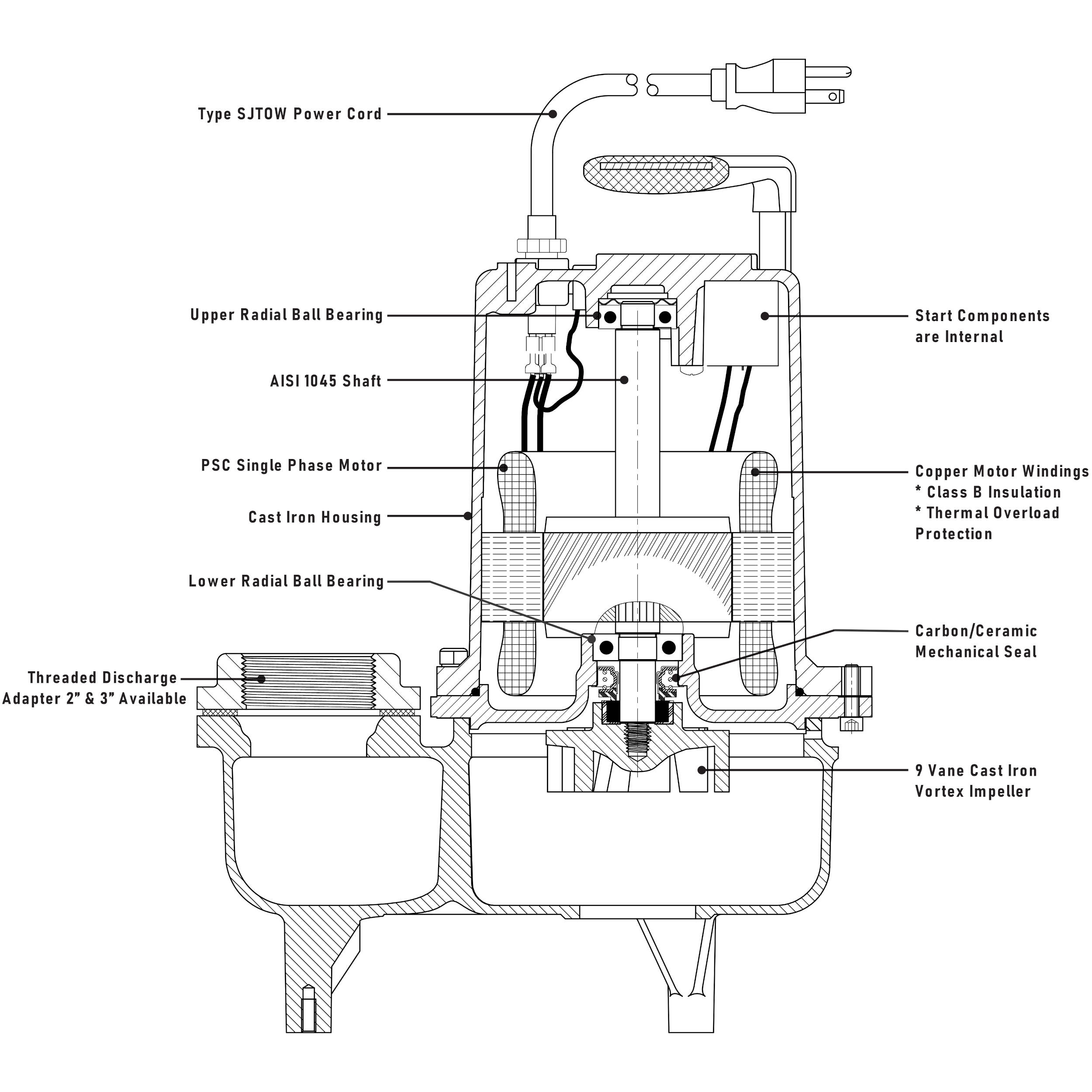

Model	SW75M5-20
Switch Type	Manual
HP	3/4HP
Voltage	208VAC 60Hz Single Phase
RPM	3450 RPM
NEMA Start Code	P
Full Load Amps	5.8 Amps
Cord Power Size	16AWG/3C
Cord Type	SJTOW
Cord O.D.	0.325-0.360"
Discharge Size	2" NPT 3" NPT Optional
Impeller Type	9-Vane Vortex - Cast Iron
Cable Length	20'
Solids Handling	2"
Maximum Liquid Temperature	104?F - Intermittent
Acceptable pH Range	6 - 8
Motor Housing	Cast Iron
Casing	Cast Iron
Impeller	Cast Iron
Motor Shaft	AISI 1045
Hardware	SST
O-Rings	NBR
Mechanical Seal	Single Mechanical Carbon Ceramic
Upper Bearing	6202
Lower Bearing	6203
Maximum Stator Temperature	130?C
RPM	3450 RPM
Motor Type	PSC
Gen Insulation Class	B
Stator Winding Class	B
Maximum Stator Temperature	130?C
Voltage Tolerance	+/-10%
Motor Protection	Thermally Protected
HP	3/4HP
Service Factor	1.00

Input Phase

Single Phase

Input Voltage

208VAC

Horsepower

3/4HP

Type

Sewage Pump

Color

Green

Product ID: SW75M5-20
